SPECIFICATIONS

Application: Outdoor / Home Power Supply

BMS: 200A

Brand Name: Wattcycle

Capability: Rated: 3.2V 280Ah

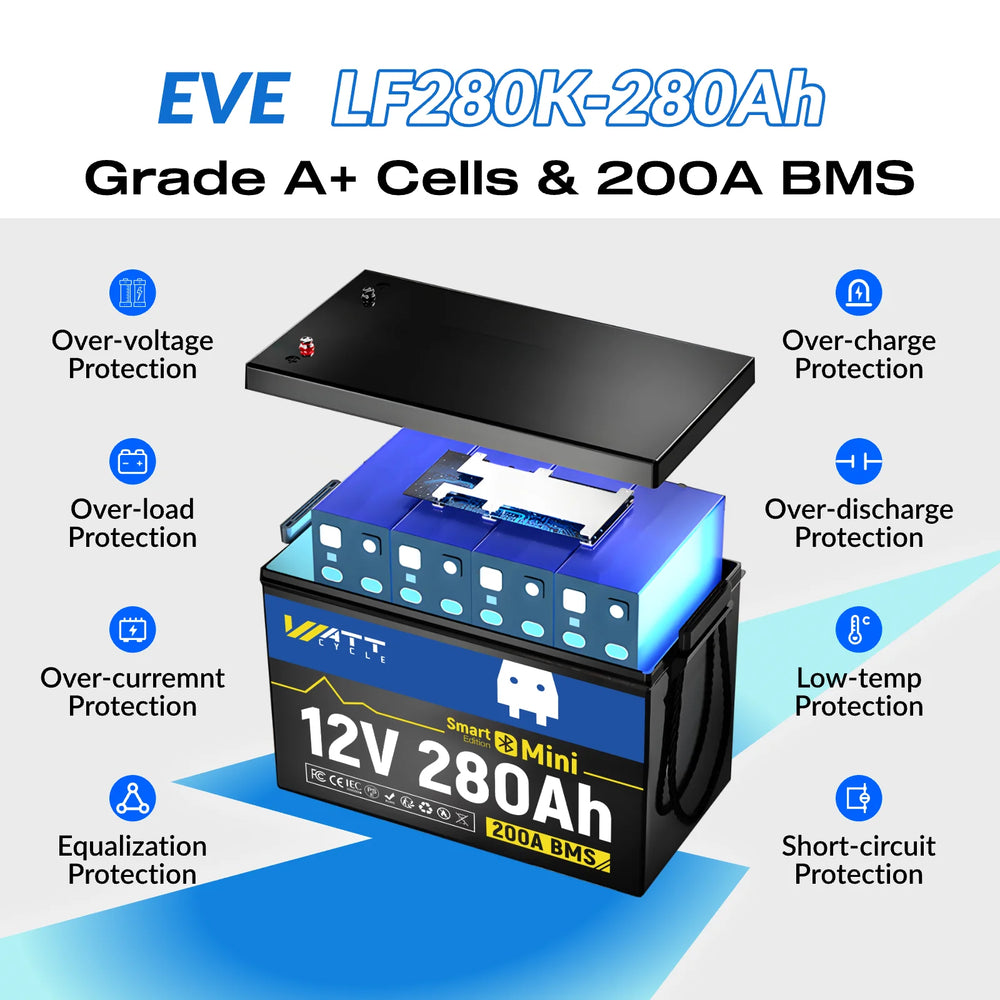

Cell: EVE LF280K-280Ah Grade A+ LiFePO4 Cells

Certification: CE,FCC,RoHS,UL

Charge Method: CC / CV

Charge Temperature: 0℃ to 45℃ / 32℉ to 113℉

Charge Voltage: 14.6V ± 0.2V

Cycle Life: 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @60% DOD

Discharge Temperature: -20℃ to 60℃ / -4℉ to 140℉

Energy: 3584Wh

Hign-concerned Chemical: None

Housing Material: ABS (Flame Retardant Plastic)

Internal Resistance: ≤40mΩ

Low-Temperature Charging Protection Recovery: Yes (41℉/5℃)

Low-Temperature Protection: Yes (32℉/0℃)

Max Depth of Discharge (DOD): 100%

Max. Continuous Charge Current: 100A

Max. Continuous Discharge Current: 200A

Max. Continuous Output Power: 2560W

Max. Discharge Current: 300±50A (≤5s)

Max. Expansion: 4S4P

Model Number: 12V 280AH MINI BT

Nominal Capacity: 280Ah

Nominal Voltage: 12.8V

Origin: Mainland China

Over Current Protection: 210±10A (1s)

Rated Voltage: Others

Recommend Charge Current: 0.2C

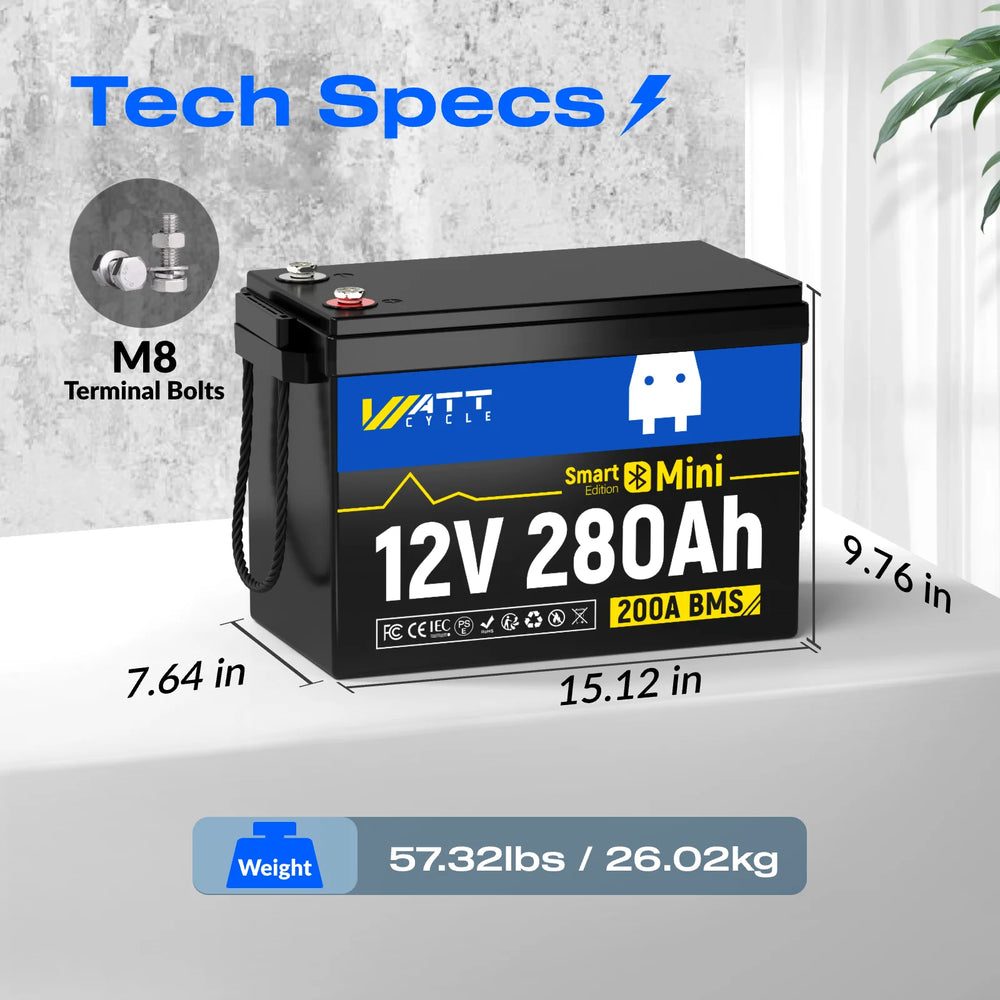

Size: 384 x 194 x 248 mm / 15.12 x 7.64 x 9.76 inch

Storage Temperature: -20℃ to 45℃ / -4℉ to 113℉

Terminal: M8 bolts

Type: LiFePO4

Voltage: 12.8V

Warranty: 5 years

Waterproof Rating: IP65

Weight: 27 kg / 59.52 lbs

For US buyer, please note:

Currently we DO NOT ship to Alaska, Hawaii, and Puerto Rico!!

Power Your RV with Confidence – WattCycle Battery with Overcurrent Protection

Designed for reliable RV power, the WattCycle 12V 280Ah MINI LiFePO4 Battery features built-in overcurrent protection at 210A, ensuring safe and efficient energy use. It’s the perfect solution for your RV's power needs.

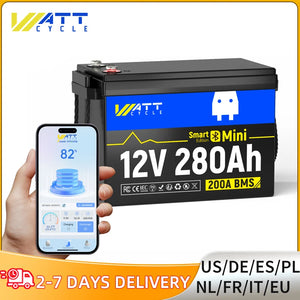

Packed with Power – The Ultimate WattCycle 12V 280Ah MINI LiFePO4 Battery with Bluetooth

Experience the cutting-edge features of the WattCycle 12V 280Ah MINI Battery: IP65 waterproof rating, advanced Bluetooth connectivity via the WattCycle app, EVE A+ grade cells, 2560W max load power, 3840Wh capacity, 8000+ cycles at 80% DOD, and 5-hour fast charging. Plus, the 200A BMS ensures optimal safety and performance.

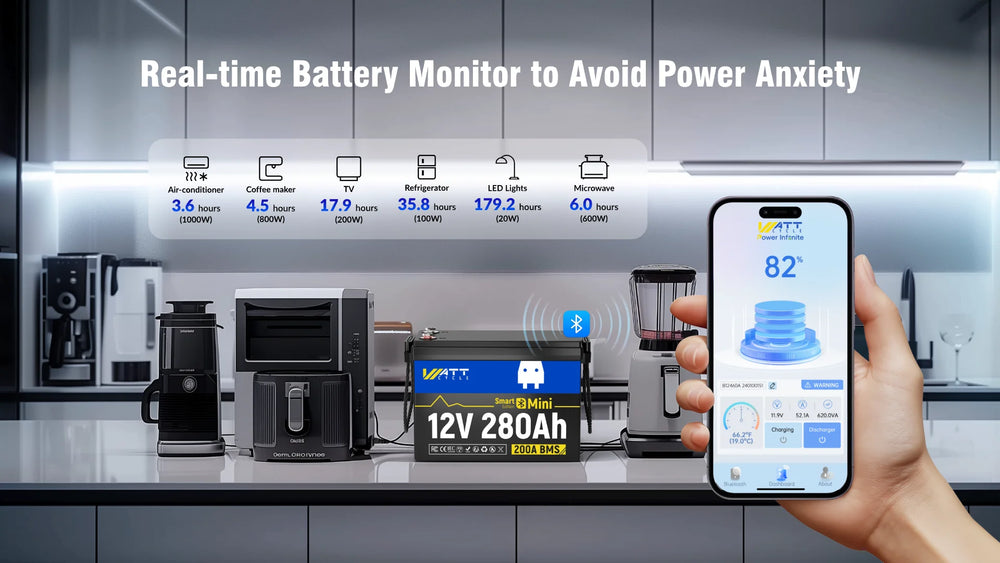

Keep Your Home Running – WattCycle Battery for Efficient Energy Use

With the WattCycle 12V 280Ah MINI Battery, you can power your home appliances with ease. From 179.2 hours of LED light to 35.8 hours of refrigerator use, it provides dependable energy for your daily needs. Plus, the WattCycle app allows you to monitor essential battery parameters like temperature, capacity, and voltage.

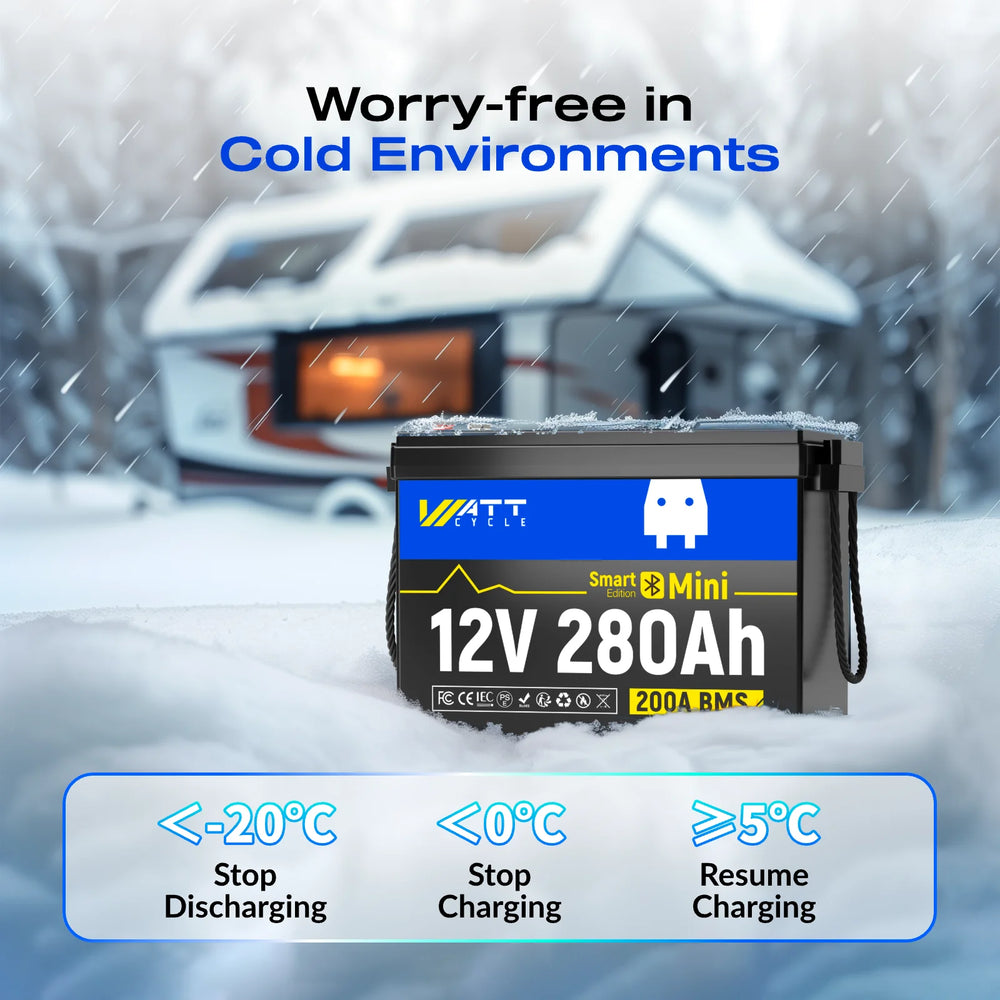

Power Through Any Climate – WattCycle Battery for Cold Environments

Designed to perform in extreme conditions, the WattCycle 12V 280Ah MINI Battery operates flawlessly even in cold environments. With a wide temperature range for charging (0℃ to 45℃ / 32℉ to 113℉) and discharging (-20℃ to 60℃ / -4℉ to 140℉), it’s the perfect energy solution for any weather.

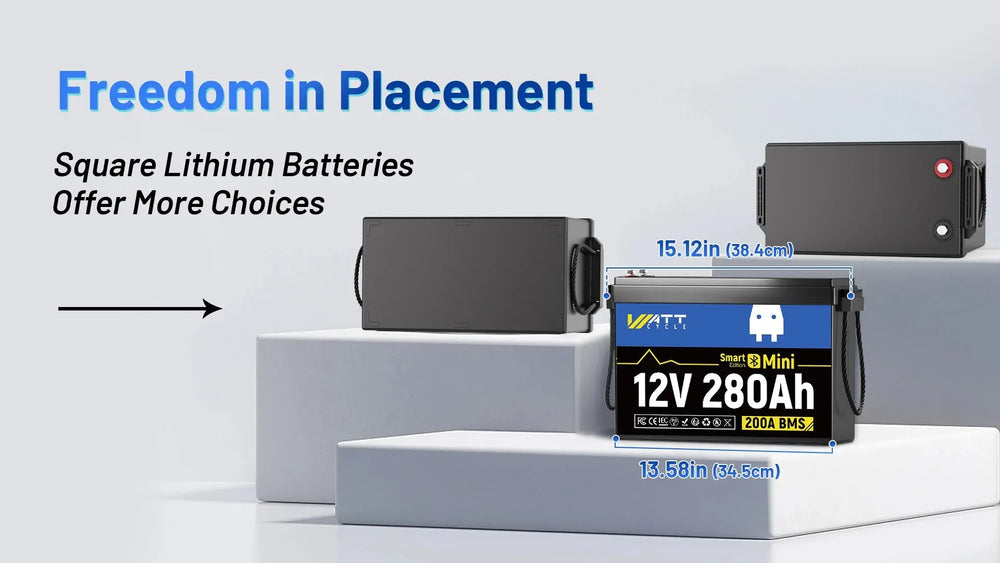

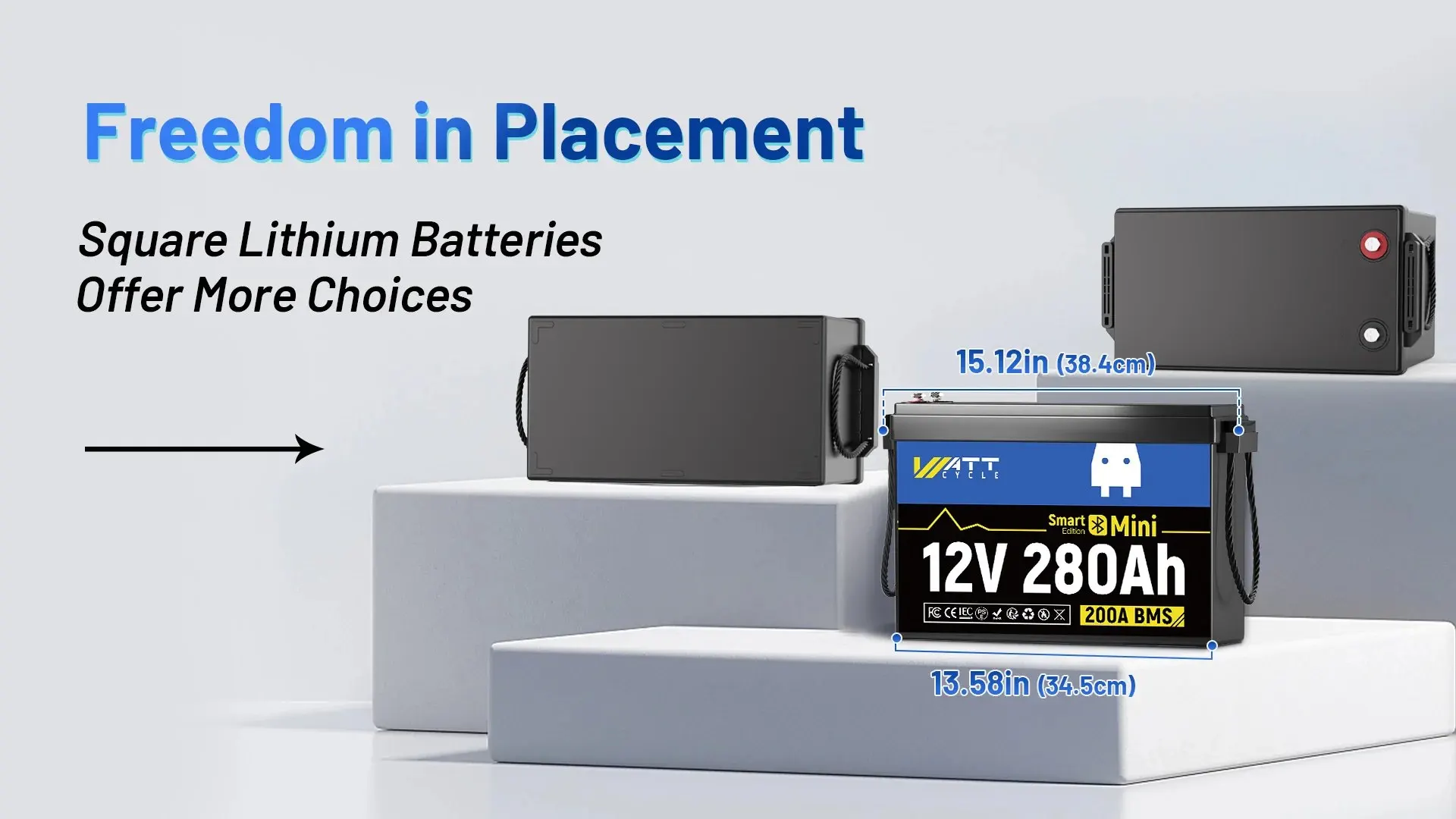

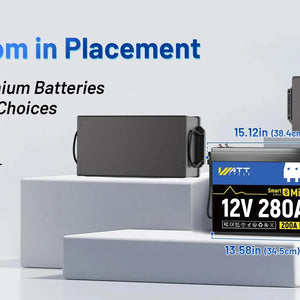

Freedom to Install: No Restrictions on Where You Place Your Lithium Battery

Designed for easy integration into any system, your lithium battery can be placed wherever it's most convenient for you.

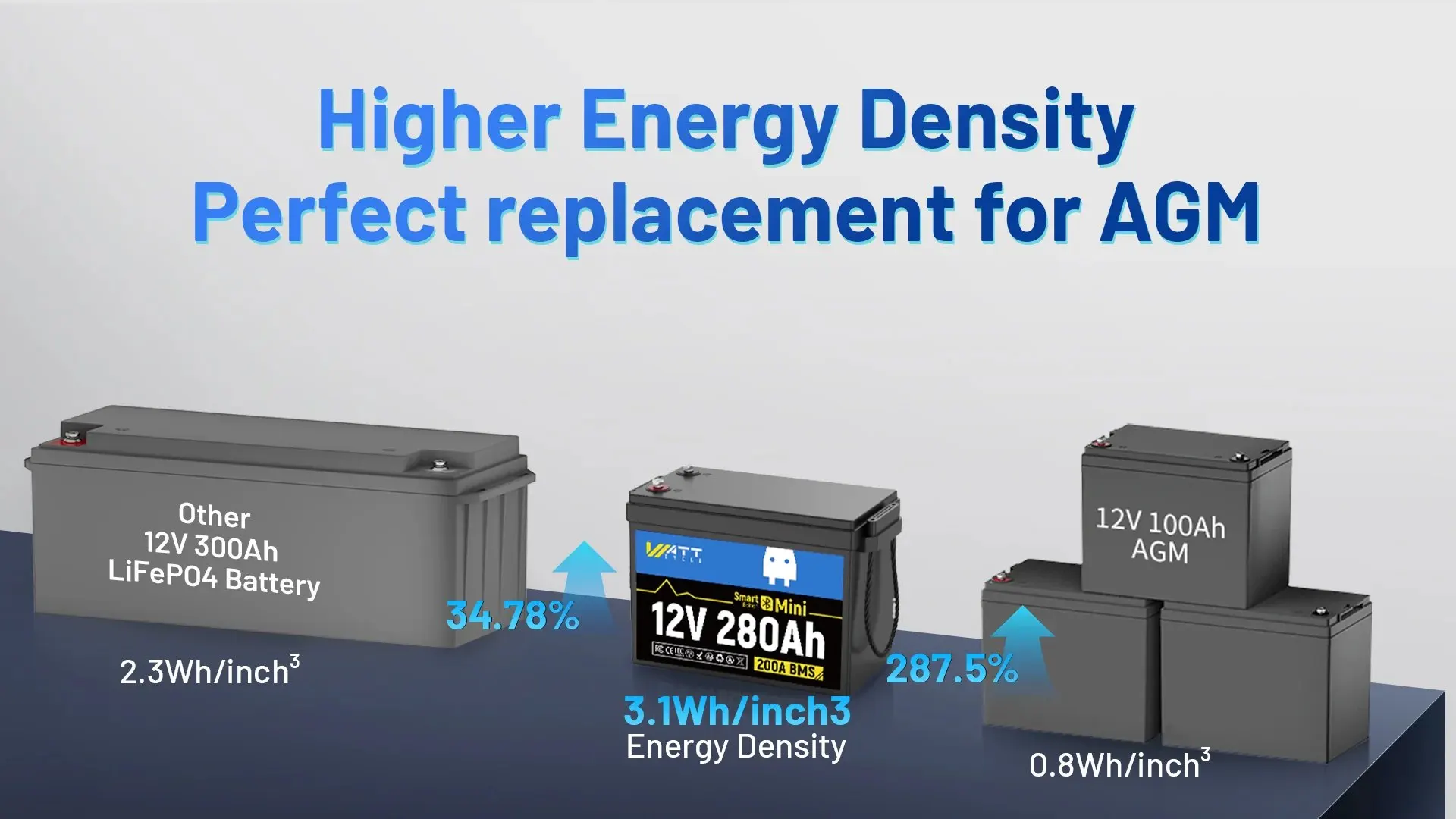

Effortless Upgrade: One 280Ah MINI Equals Three 12V 100Ah Lead-Acid Batteries

Streamline your power system by swapping out multiple lead-acid batteries for a single high-capacity 280Ah MINI, reducing complexity and improving efficiency.

Expand Your Energy Potential – WattCycle Battry with Scalable Capacity

Need more power? The WattCycle 12V 280Ah MINI Battery supports up to 16 batteries in parallel, providing flexible energy solutions for various applications. Perfect for scaling up your energy storage for off-grid homes, RVs, and large power systems.

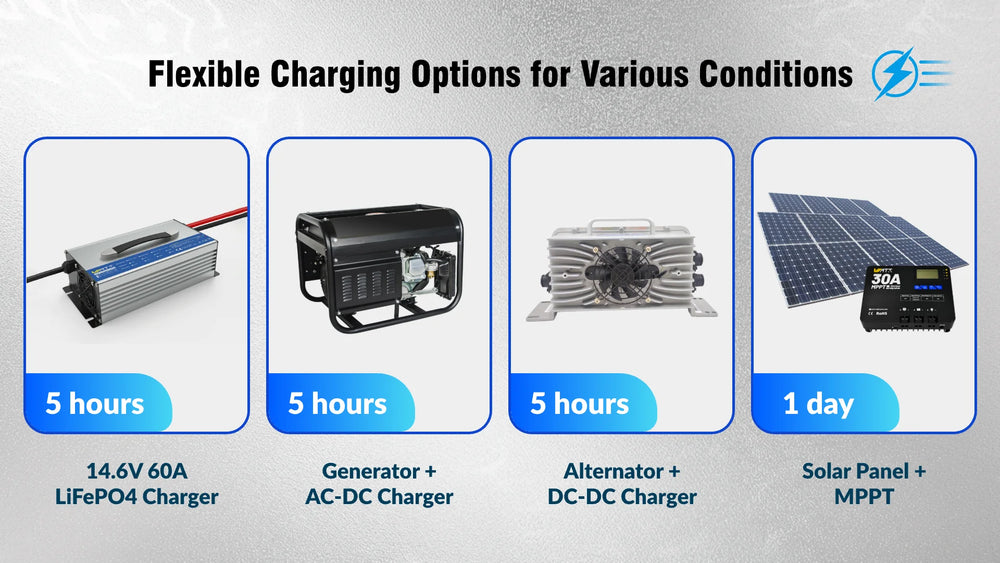

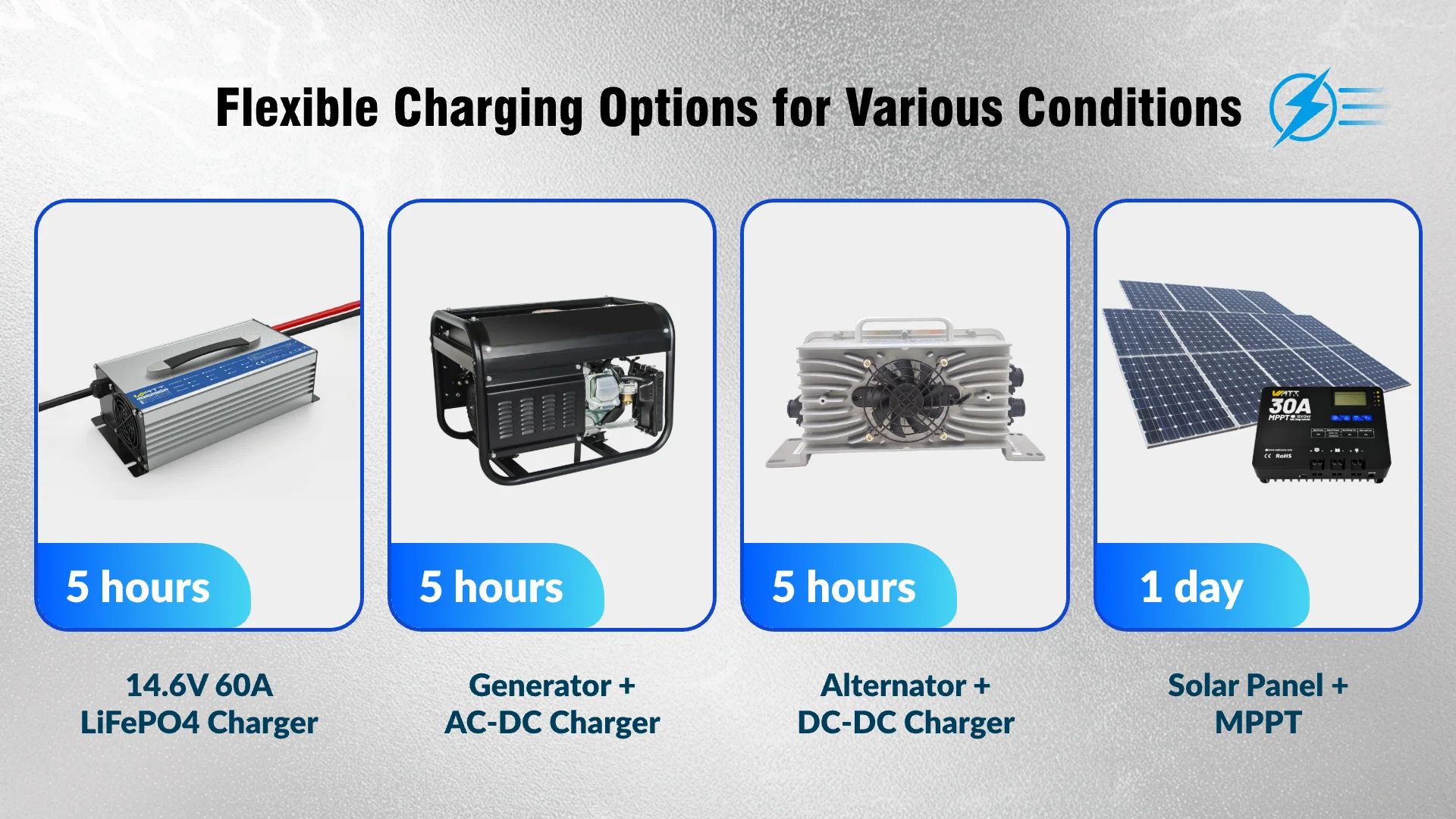

Charge Your Way – Flexible Charging Options with the WattCycle Battery

Whether at home, on the road, or off-grid, the WattCycle 12V 280Ah MINI Battery offers versatile charging options: 5-hour charging with a 14.6V 60A LiFePO4 charger, generator + AC-DC charger, or alternator + DC-DC charger. For solar setups, it’s fully charged in just one day with an MPPT controller.
One Battery for Every Need – The WattCycle 12V 280Ah MINI LiFePO4 Battery with Bluetooth

From RVs to boats, off-grid living to home storage, the WattCycle 12V 280Ah MINI Battery is the all-in-one energy solution for all your power needs. Whether you're on the road, at sea, or preparing for a blackout, this versatile battery ensures you're always powered.
