SPECIFICATIONS

Battery type: Polymer lithium battery (390mAh)

Brand Name: NOYAFA

Certification: CE

DIY Supplies: Electrical

Hign-concerned Chemical: None

Model Number: NF-518

Origin: Mainland China

Power Type: Rechargeable

Product appearance: Two-color mold, tough

Product function: Wall detection function

Voice broadcast: Live voice broadcast

With LCD Screen Or Not: Yes

1)Product overview

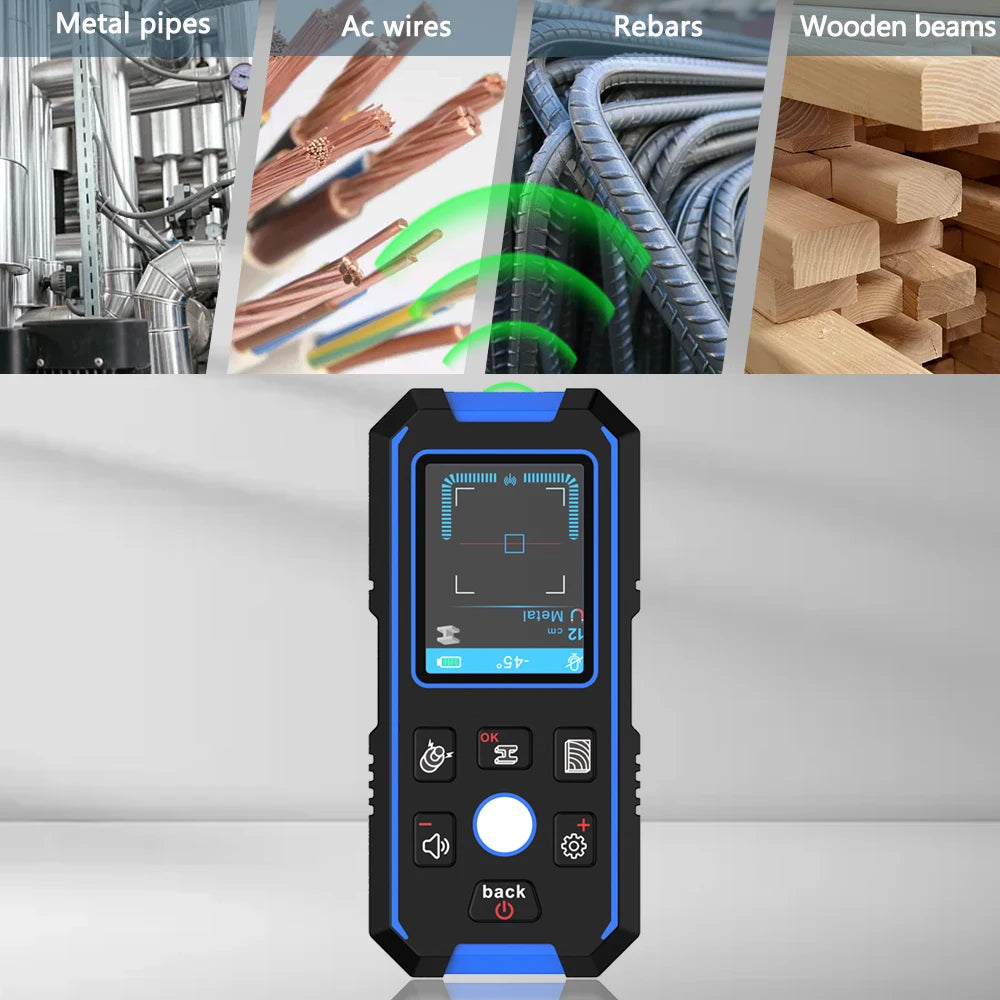

This instrument can detect metals (rebars, copper pipes) hidden in

walls, ceilings and floors, live wires, Rib and Slot position under wooden

walls, etc. It is widely used in interior decoration, home installation and

other industries, allowing various construction safely proceed.



2)Product technical parameters



1.Product model:NF-518

2.Product function:Wall detection function

3.Product appearance:Two-color mold, tough

4.Screen type: 2.4-inch high-definition color screen, Resolution 240*320

5.Charging method: Support Type-C charging

6.Battery type: Polymer lithium battery (390mAh)

7.Voice broadcast: Live voice broadcast

8.Product size: 36*25*139 mm

9.Product weight:200g



3)Wall detection function

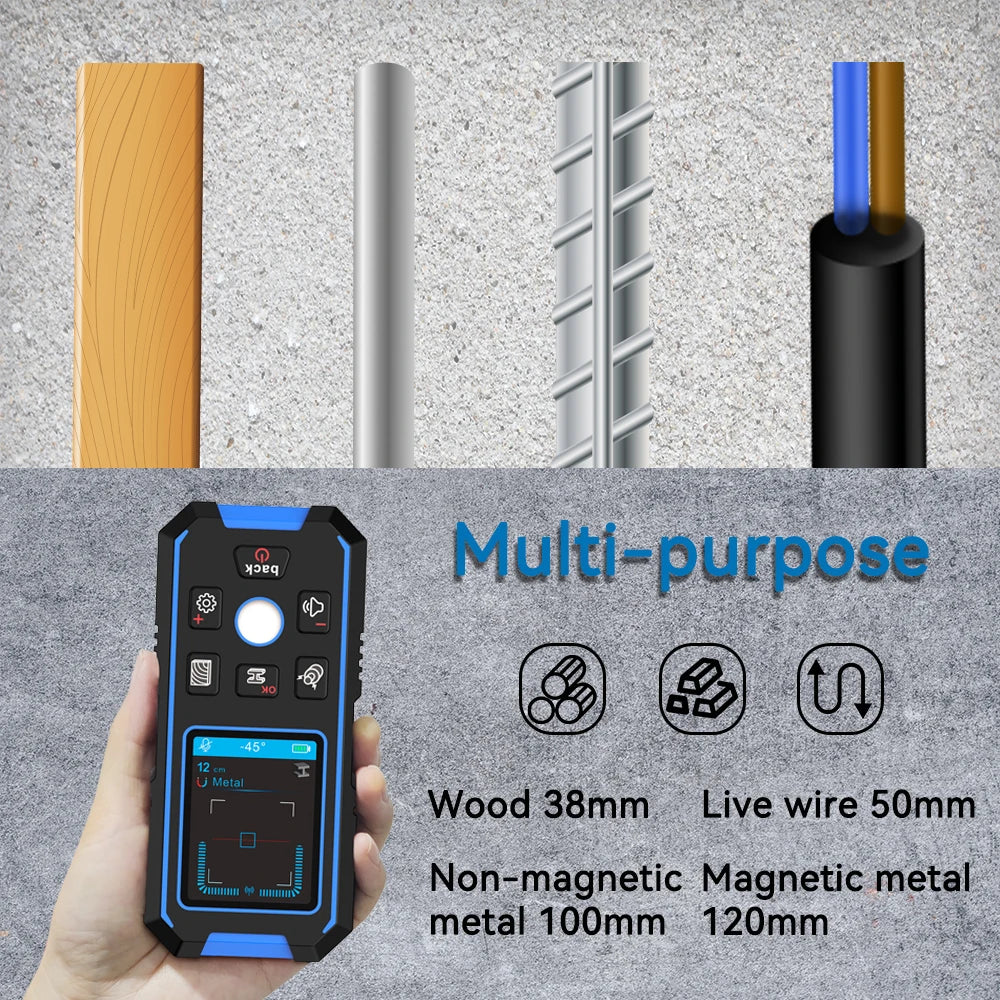

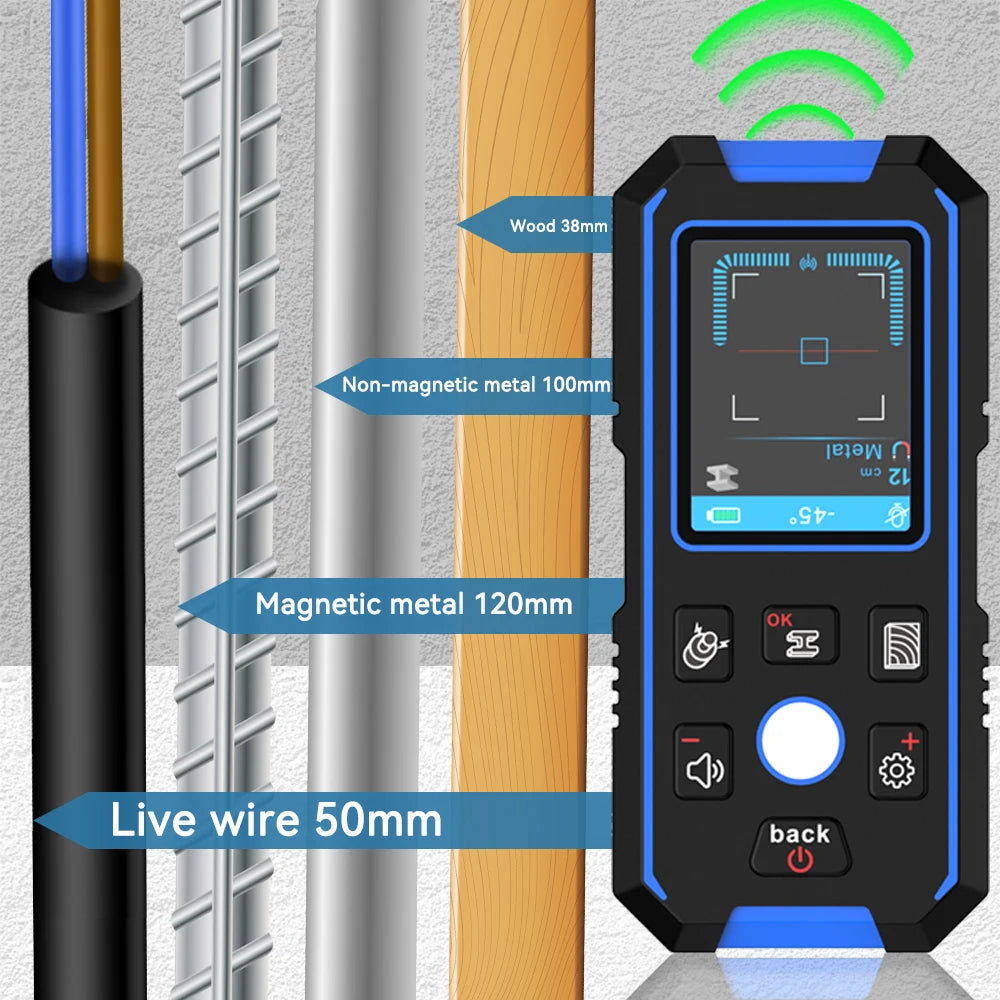

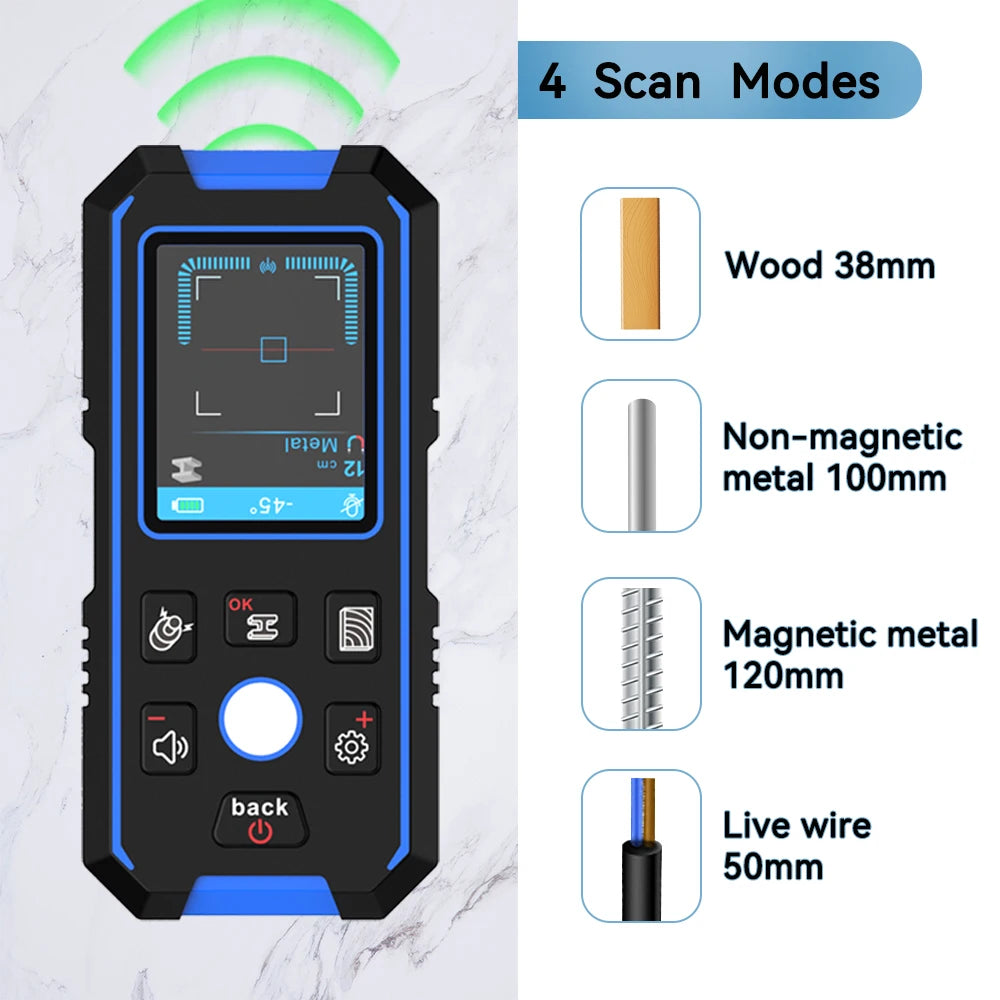

Depth measurement: Wood(3.8cm)/Live (AC) wire(5cm)/Non-magnetic metal(10cm)/Magnetic metal(12cm)

Metal detection: Depth value is based on the φ20mm standard steel pipe. Only for

reference (Note: The error of the depth indication is for reference only)

Function：Non-metal detection/AC detection/Wall/Wood/Live (AC) wire/Magnetic metal/Wall detection function

Automatic shutdown:5 minutes

Operating temperature:0°C-50°C

Storage temperature:-10°C—60°C
