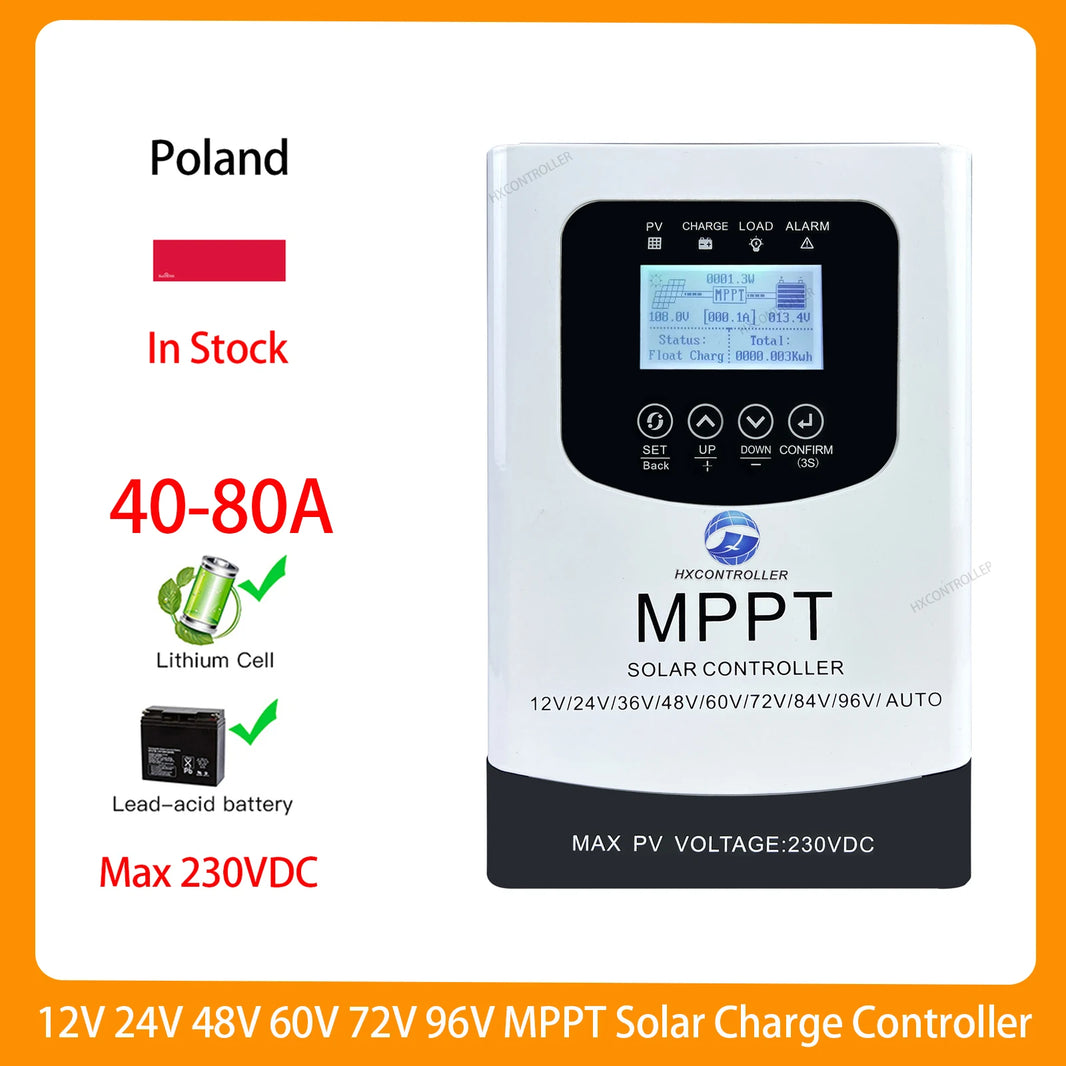

MPPT Solar Battery Charge Controller 12V-96V 100A 9600W 230VDC 60A 80A Solar System Regulator Ship From EU For Lifepo4 GEL Lead
Sale price
$233.40
70% Off
Regular price
$373.44
SPECIFICATIONSApplication: Charger Controller,Voltage Controller,Solar System Controller,Solar Working StationBrand Name: JYYHSRPOWERCertification: CEHign-concerned Chemical: NoneIs Smart Device: YESMax input solar panel voc voltage: 230VMaximum Current: 100AModel Number: MPPT Solar Battery Charge Controller
Vendor:Slizen
Description
reviews
Description
- Description
- reviews
SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station
Brand Name: JYYHSRPOWER
Certification: CE
Hign-concerned Chemical: None
Is Smart Device: YES
Max input solar panel voc voltage: 230V
Maximum Current: 100A
Model Number: MPPT Solar Battery Charge Controller 12V-96V 100A 9600W 230VDC
Origin: Mainland China
Whether support WIFI: Yes, it's support wifi
battery voltage: 12V 24V 48V 60V 72V 84V 96V 110V
is_customized: Yes
Good news for EU Brazil Mexico buyer: our controller ship from poland and Brazil you can get parcel quickly.
Delivery time:
5days delivery:Poland
7 days delivery: Germany, Czech Republic, Spain(5days), France, Italy, Netherlands, Portugal, Austria, Belgium, Denmark, Lithuania, Hungary
other country delivery time:7-10days.
Brazil Delivery time: 5-10days
Mexico Delivery time: 5-10days
This is a powerful and high-quality solar charger. You can charge various types of batteries and automatically identify the battery voltage. Simple operation, suitable for individuals, families, agriculture and animal husbandry.
Features：
1. Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
2. The LCD is designed to dynamically display the operation data and working status of the equipment.

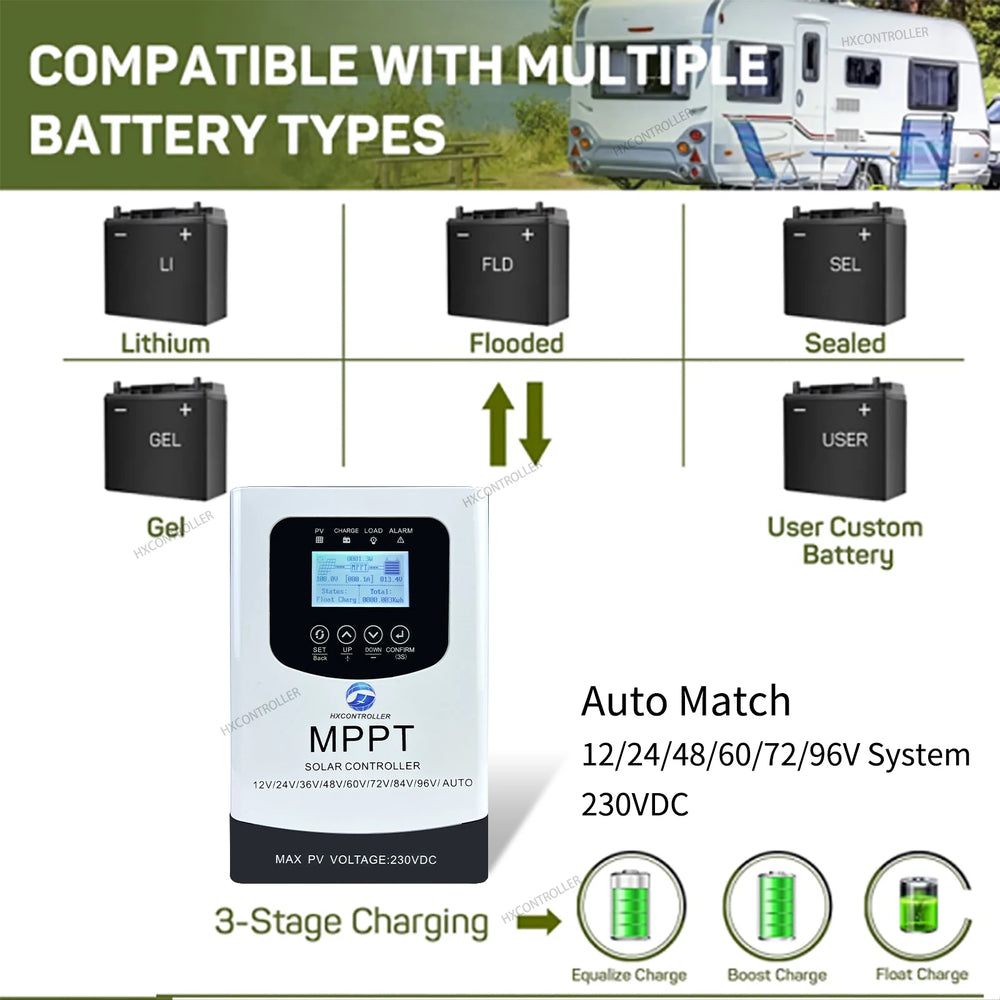

3. Compatible with Seal, GEL, Flooded, LifePO4 battery charging(user battery can adjust charging by yourself.)
4. Dual USB 5V charging ports
5. 12V/24V/36V/48V/60V/72V/84V/96V automatic identification

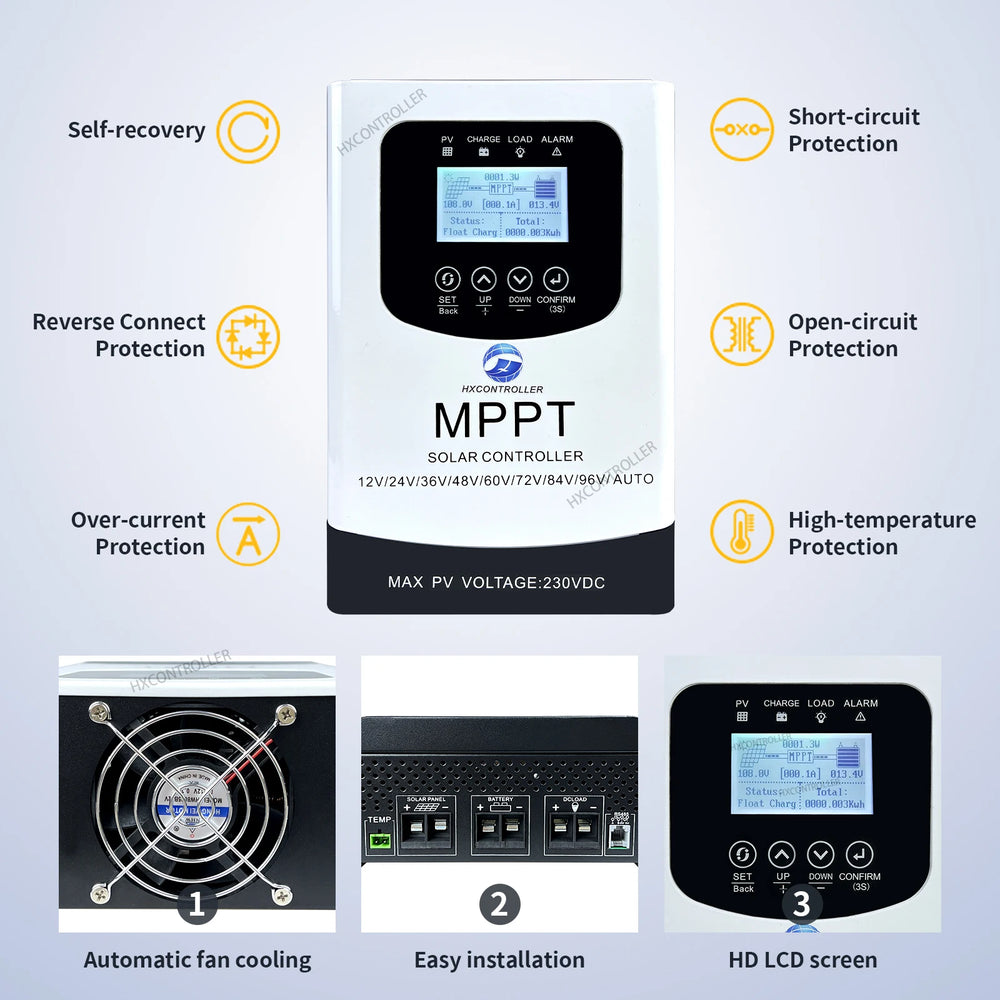

6. Over-voltage protection
7. Over-current protection
8. Over temperature protection
9. Controller parameters display
10. With backlight display
11. Max input solar panel voltage is 230Vdc( this is voc voltage)
12. Support RS485 WIFI Device( If you need our wifi device, please buy it seperately)
Parameter Table
MPPT model |
30A |
40A |
50A |
60A |
80A |
100A |
|
Rated charging current |
30A |
40A |
50A |
60A |
80A |
100A |
|
Maximum PV Input Power |
12v system |
36ow |
480w |
600w |
720w |
960W |
1200w |
24v system |
720w |
960w |
1200w |
1400w |
1920W |
2400w |
|
36v system |
1080w |
1440w |
1800w |
2160w |
2880W |
3600w |
|
48V system |
1440w |
1920w |
2400w |
2880w |
3840W |
4800w |
|
6ov system |
1800w |
2400w |
3000w |
3600w |
4800W |
6000w |
|
72v system |
2160w |
2880w |
3600w |
7320w |
5760W |
7200w |
|
84v system |
2520w |
3360w |
4200w |
5040w |
6720W |
8400w |
|
96v system |
2880w |
3840w |
4800w |
5760w |
9600w |
9600w |
|
Charging mode |
MPPT automatic maximum power tracking |
||||||
charging mode |
MPPT tracks maximum power, fast charging, |
||||||
Battery type |
Lead acid battery |
(12V / 24v / 36v / 48v / 96v automatic identification) |
|||||
Gel Battery |
12v / 2av/ 36v ] 48v / 6ov / 72v / 84v / 96v adjustable |
||||||
Lithium iron |
Unit voltage 3.2 * number of strings (2-45 adjustable) |
||||||
Ternary lithium |
Unit voltage 3.7 * number of strings (2-45 adjustable) |
||||||
User defined |
Equalizing charge, floating charge, |
||||||
with lithium activation function |
with photovoltaic input, there is charging voltage (activate lithium battery), |
||||||
Photovoltaic minimumvoltage start |
The photovoltaic voltage is greater than |
||||||
PV maximum open circuit input voltage |
0-230V |
0-230V |
|||||
Photovoltaic charging current adjustable |
0-30A |
0-40A |
0-50A |
0-60A |
0-80A |
0-100A |
|
Dc current output (street lamp function) |
Dc continuous output 25A |
continuous output 60A |
Dc continuous output 100A |
||||
temperature compensation |
Automatically compensate the charging voltage and current |
||||||
LCD touch button |

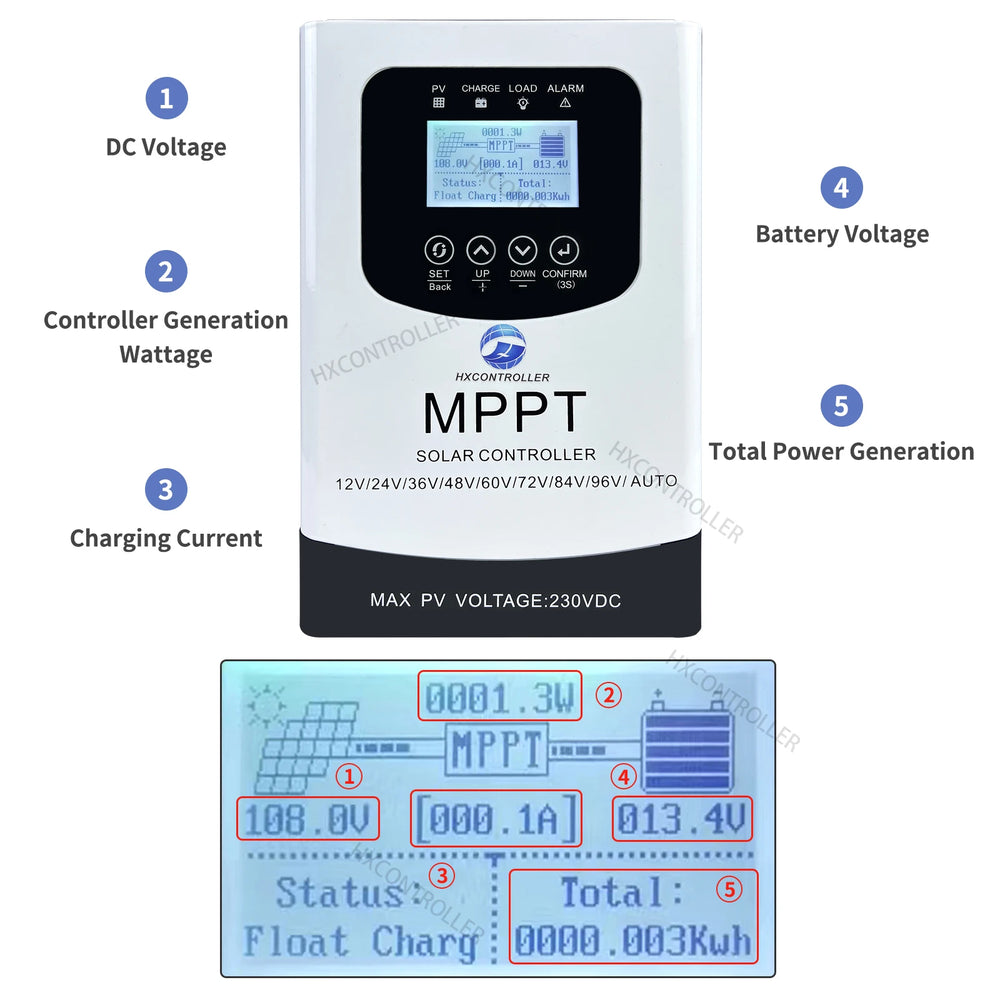

LCD display: (generating capacity / photovoltaic voltage / battery voltage / charging |
||||||
Setting: (battery type, charging current, charging voltage and discharge voltage,return to factory), | |||||||

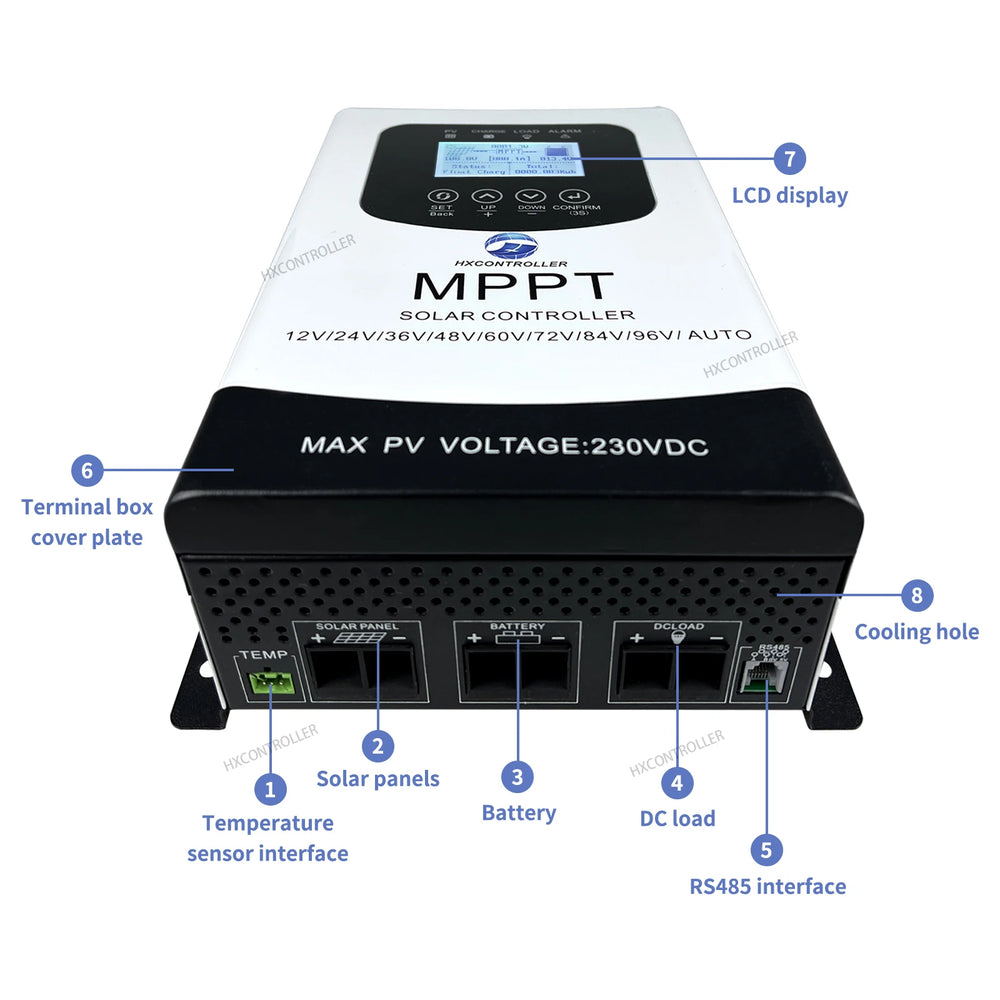

485 communication |
8-pin RS485 communication interface (operation status and |
||||||
Working environment temperature |
～-10℃一+45℃ |
||||||
Static power consumption |
2w |
||||||
overall efficiency |
96.5%~99% |
||||||
Temperature protection |
85℃ |
||||||
Temperature rise protection |
Reduce power output above 8o ℃ |
||||||
Protection function |
Photovoltaic array short-circuit,over-voltage，over-current reverse connection |
||||||
humidity |
o~90% RH (no condensation) |
||||||
Mechanical protection level |
P21 |
||||||
Altitude |
0~3000m |
||||||

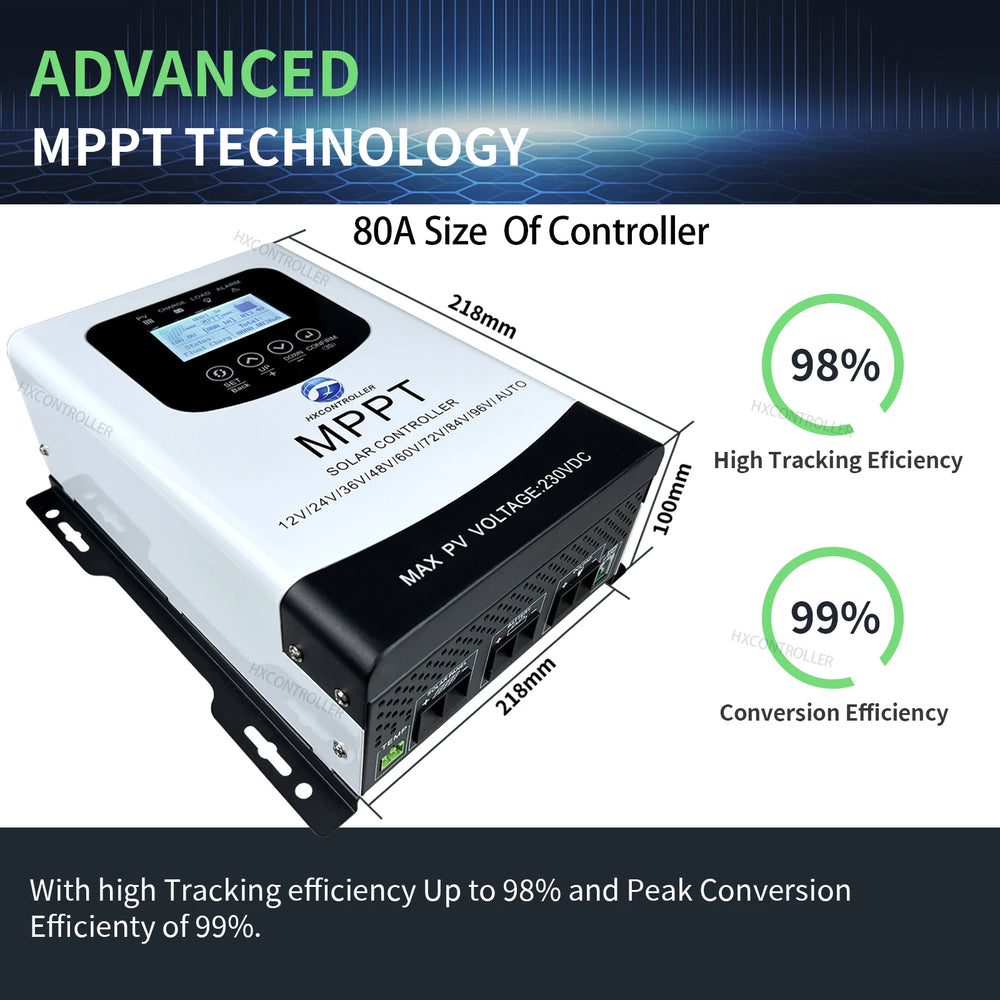

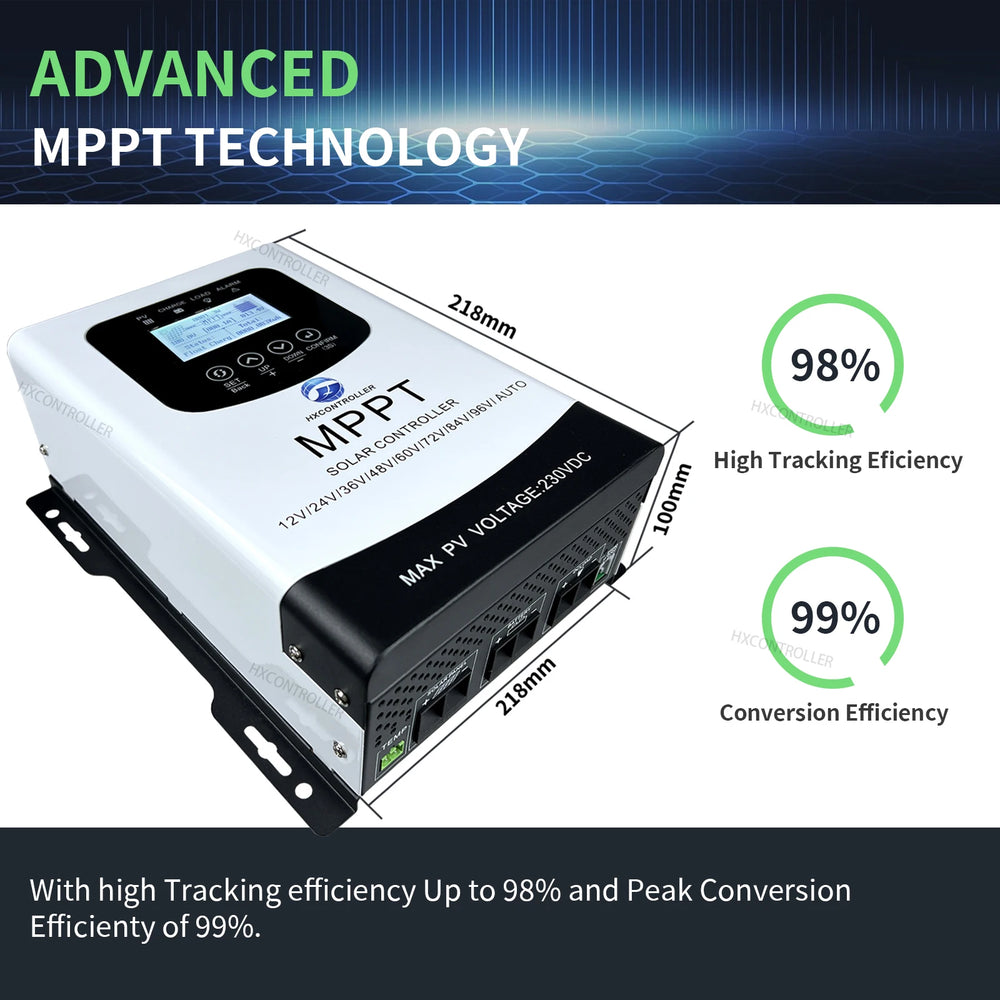

size |
202mm*215mm*100mm |
218mm*265mm*100mm |
|||||
Net / gross weight |
1.95KG |
2.6KG |
|||||
Package size |
265mm*224mm*120mm |
315mm*240mm*120mm |
|||||

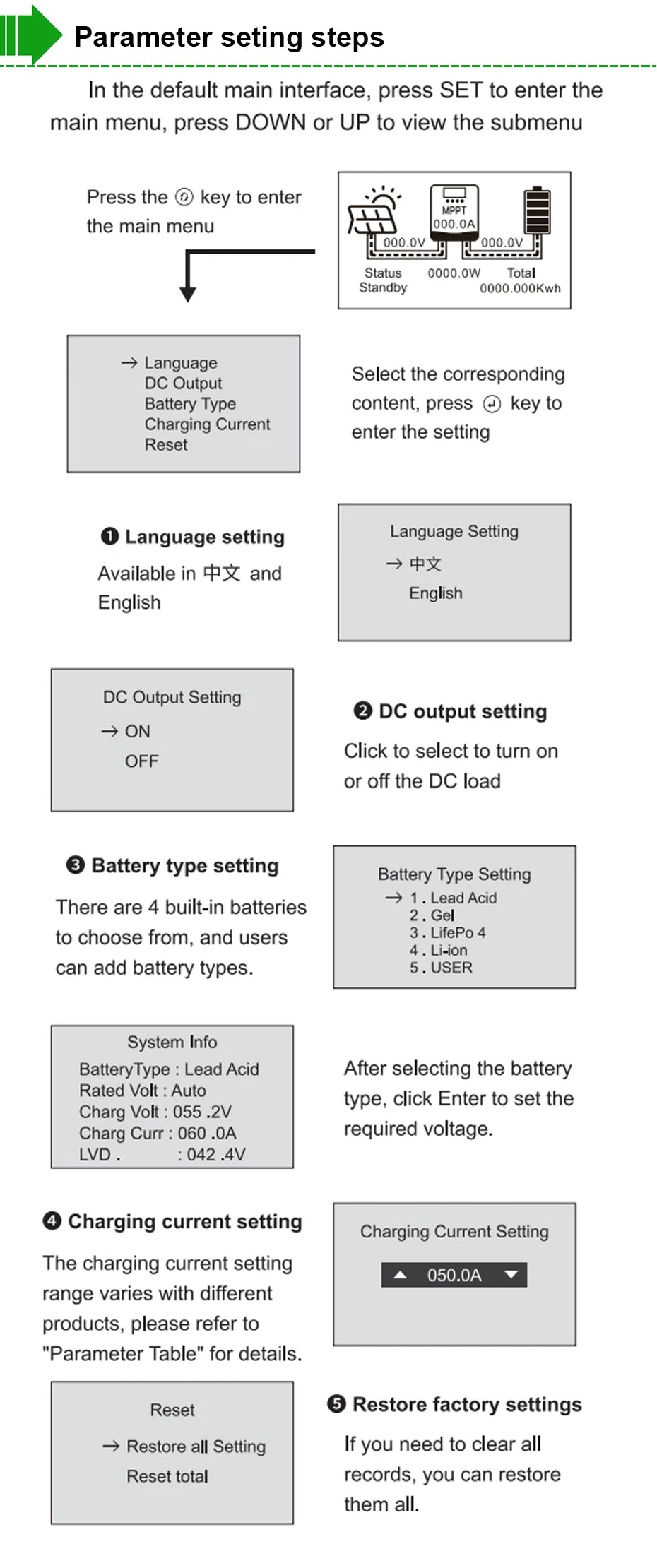

Parameter setting steps
Image of Product
