LASER TREE K1 PRO 40W Engraver Cutter With 40W Optical Power Air Assist , 400x400mm Area, For Wood Acrylic MDF Woodworking Tool
Sale price
$989.29
45% Off
Regular price
$1,582.86
SPECIFICATIONS30W Laser Module: LT-K3040W Laser Module: LT-K40Application: Engraving & CuttingBrand Name: Laser TreeCNC or Not: CNCCondition: NewEngraving Area: 400*400mmHigh-concerned chemical: NoneInput: 24V 5ALaser Optical Power: 30W,40WMachine Module: LT-K1-PROModel Number: LT-K1-PROOrigin:
Vendor:Slizen
Description
reviews
Description
- Description
- reviews
SPECIFICATIONS
30W Laser Module: LT-K30
40W Laser Module: LT-K40
Application: Engraving & Cutting
Brand Name: Laser Tree
CNC or Not: CNC
Condition: New
Engraving Area: 400*400mm
High-concerned chemical: None
Input: 24V 5A
Laser Optical Power: 30W,40W
Machine Module: LT-K1-PRO
Model Number: LT-K1-PRO
Origin: Mainland China
Support Software: LightBurn & LaserGRBL
Working Focus: 45mm

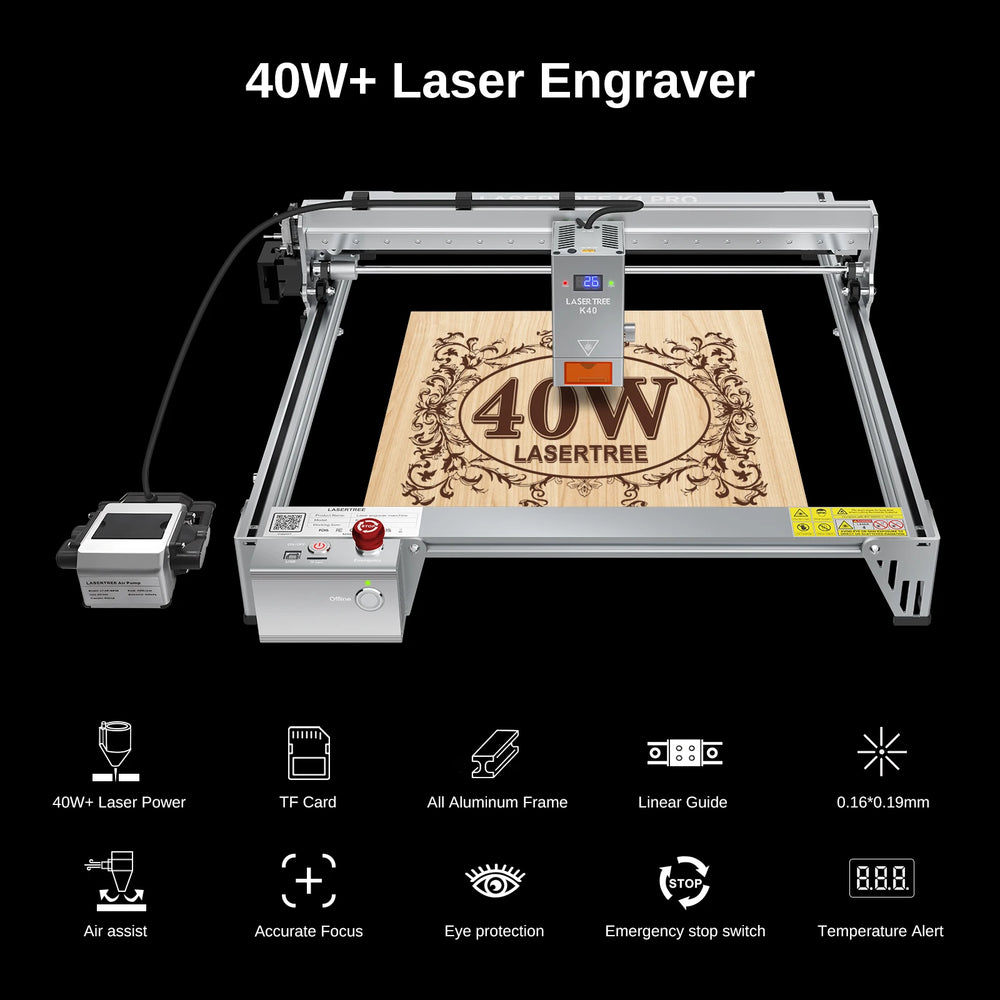

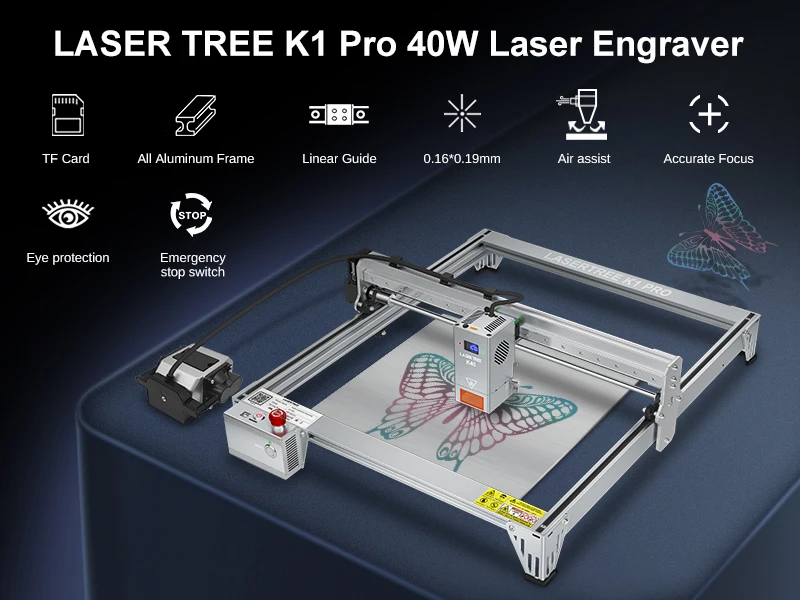

LASER TREE K1 PRO 40W Engraver & Cutter
LT-K1-PRO Features:
①With 40W+ Optical Power Laser Module
②Working Area : 400*400mm
③X-axis Linear Slide Design
④TF Card Ofline Engraving
⑤Engraving Precision:0.01mm
⑥Ultimate Speed：20000mm/min
⑦With Wire Harness Storage Clip
⑧Automatic Air Assist
⑨Temperature Display & Alarm Function

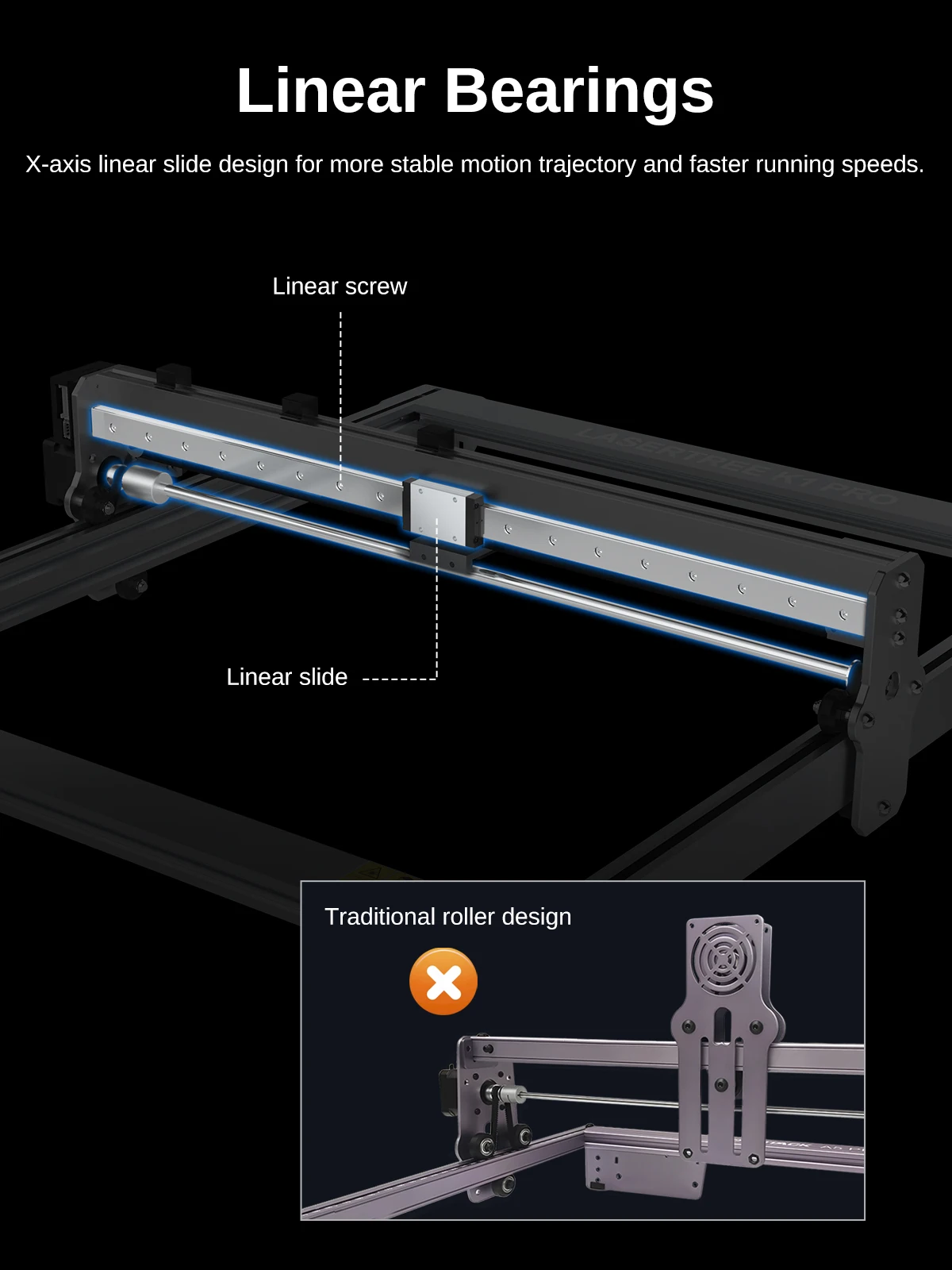

Linear Bearings
X-axis linear slide design for more stable motion trajectory and faster running speeds.
Module : LT-K40(Optical Power 40W Laser Head)
Material: aluminum alloy
Optical Power：40W
Wavelength: 450nm (±10nm)
Light color: blue
Focus Length: 40mm
Electric power: 24V 6A
PWM Modulation: 0/3-12V 0-5kHz TTL/PWM
Input port: KF2EDG3.81-3P socket
Laser module net weight: 900g

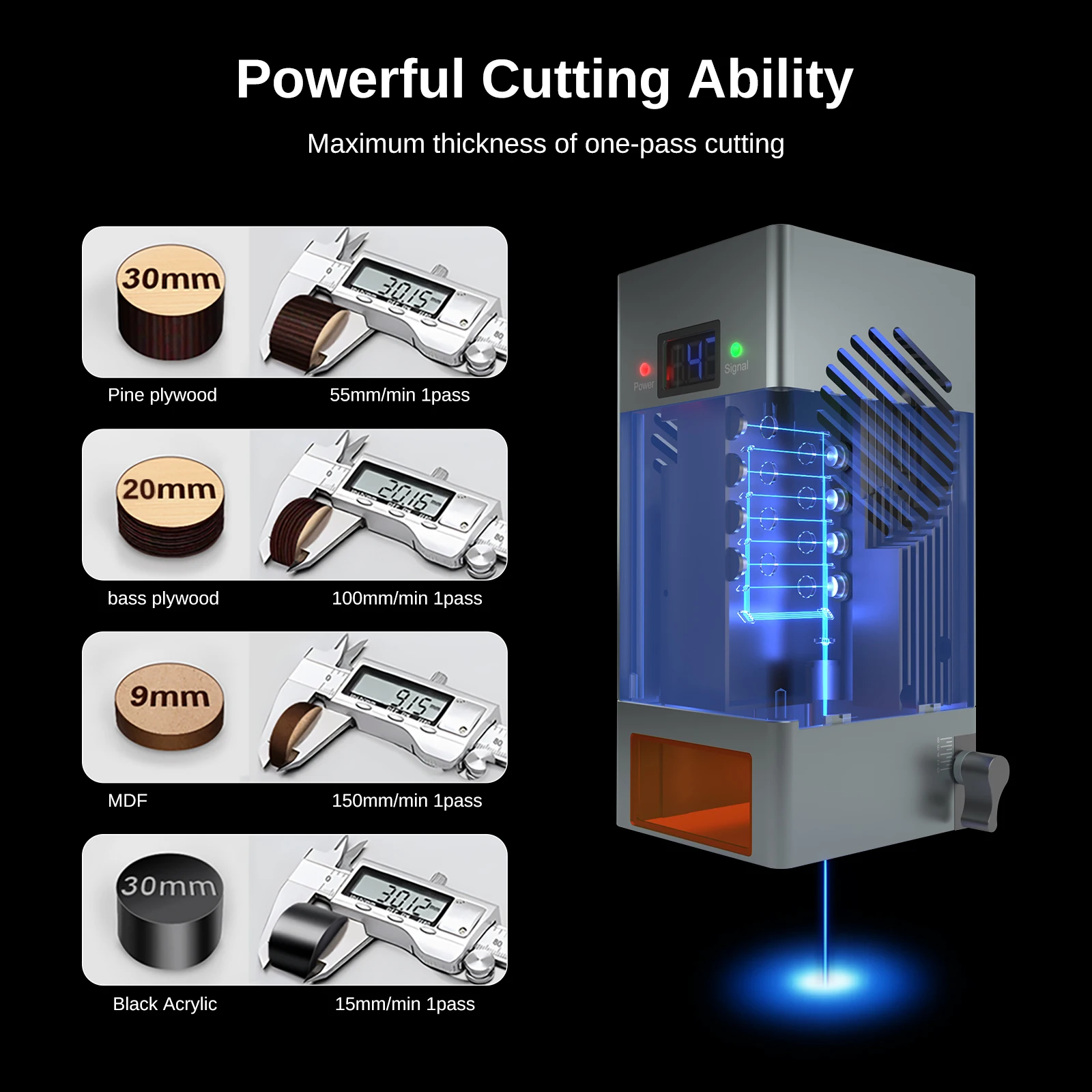

K40 Powerful Cutting Ablity
55mm/min 1pass cutting 30mm Pinewood
200mm/min 1pass cutting 15mm Plywood
150mm/min 1pass cutting 9mm MDF
15mm/min 1pass cutting 30mm Acrylic

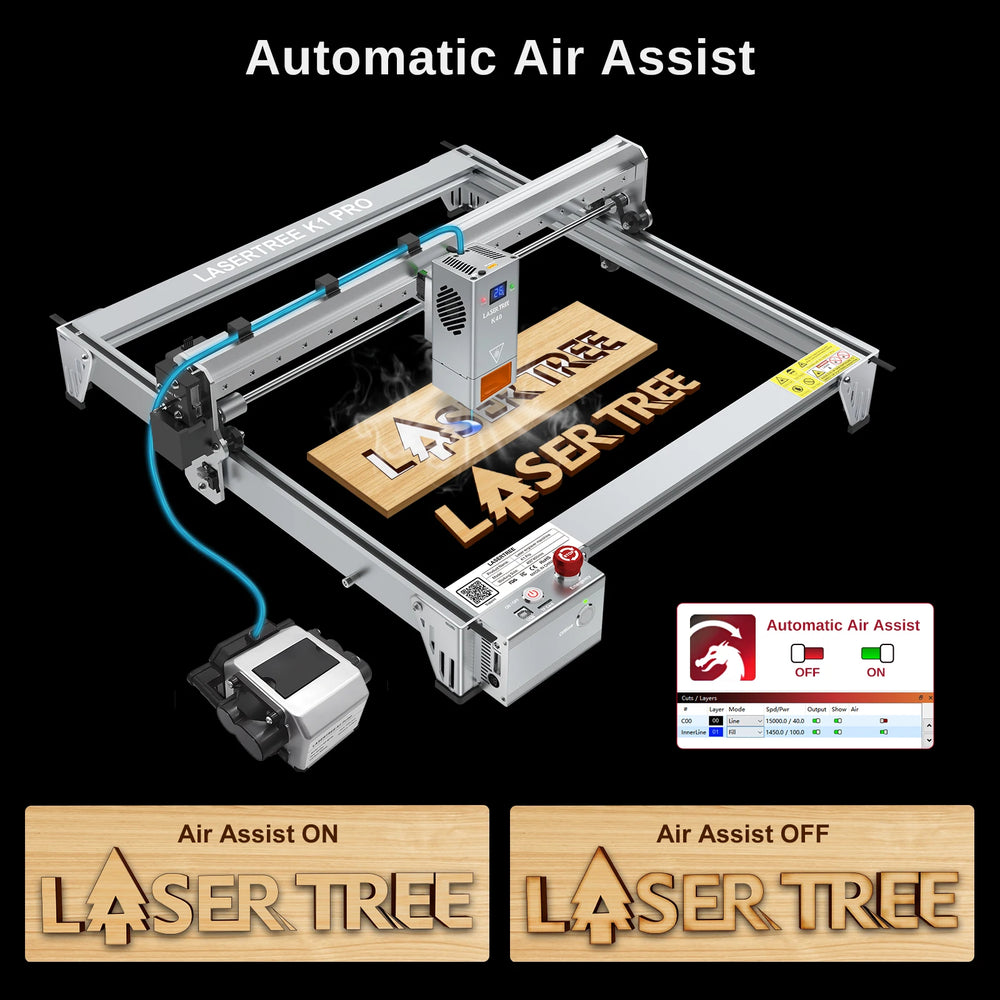

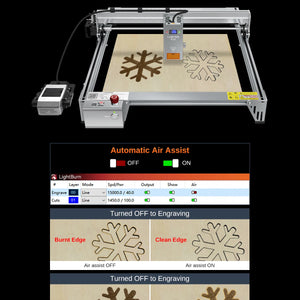

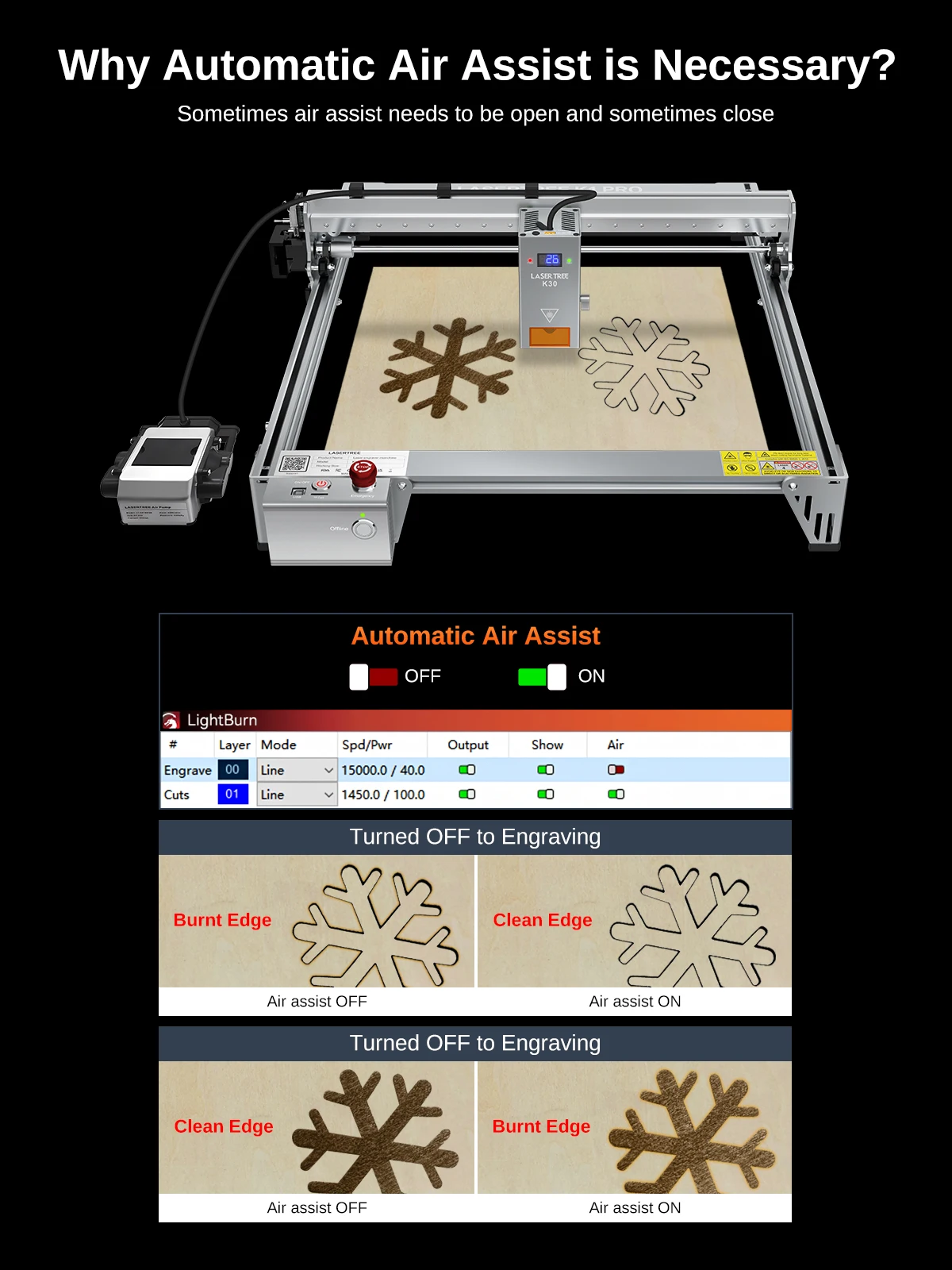

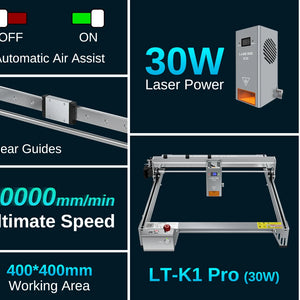

Automatic Air Assist
which can intelligently control the air-assist switch during engraving through the LightBurn software , this makes the engraving and cutting very clean.

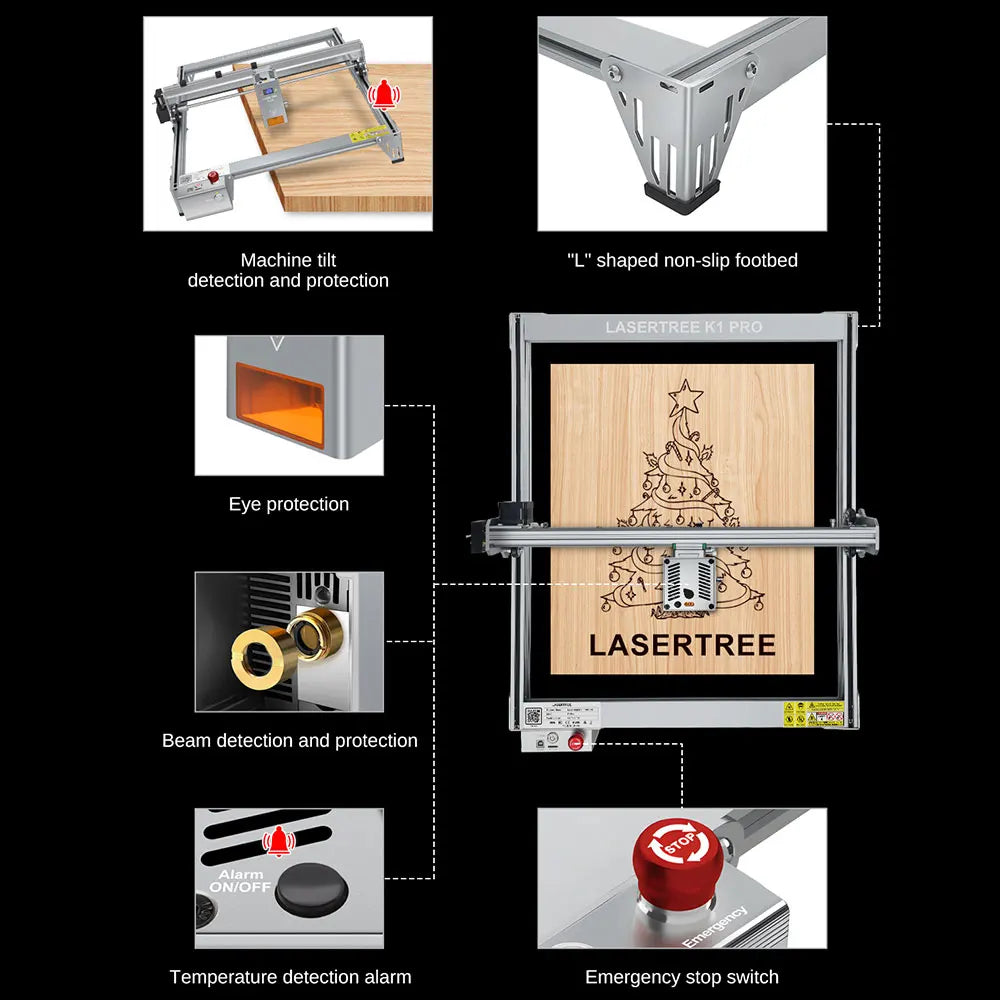

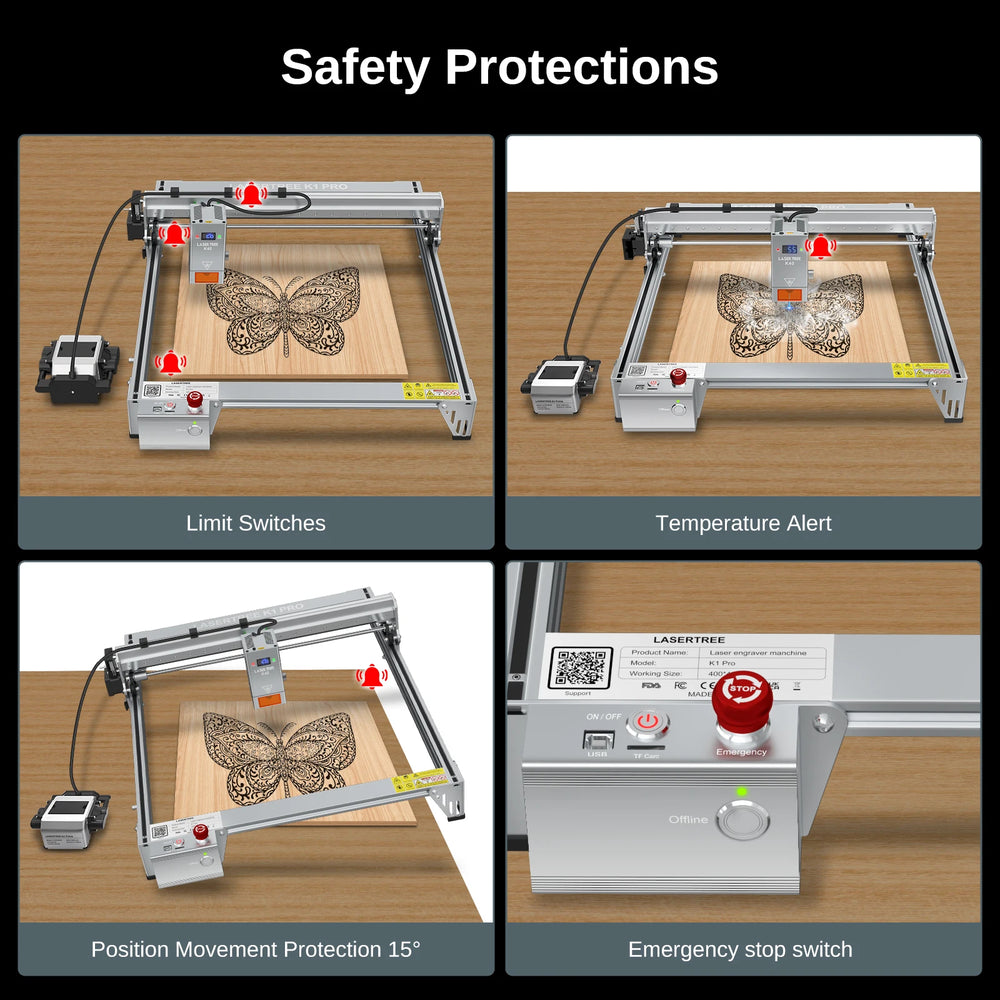

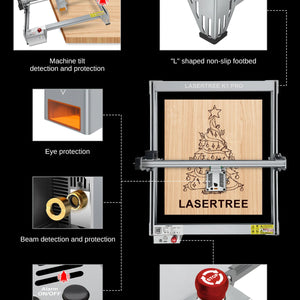

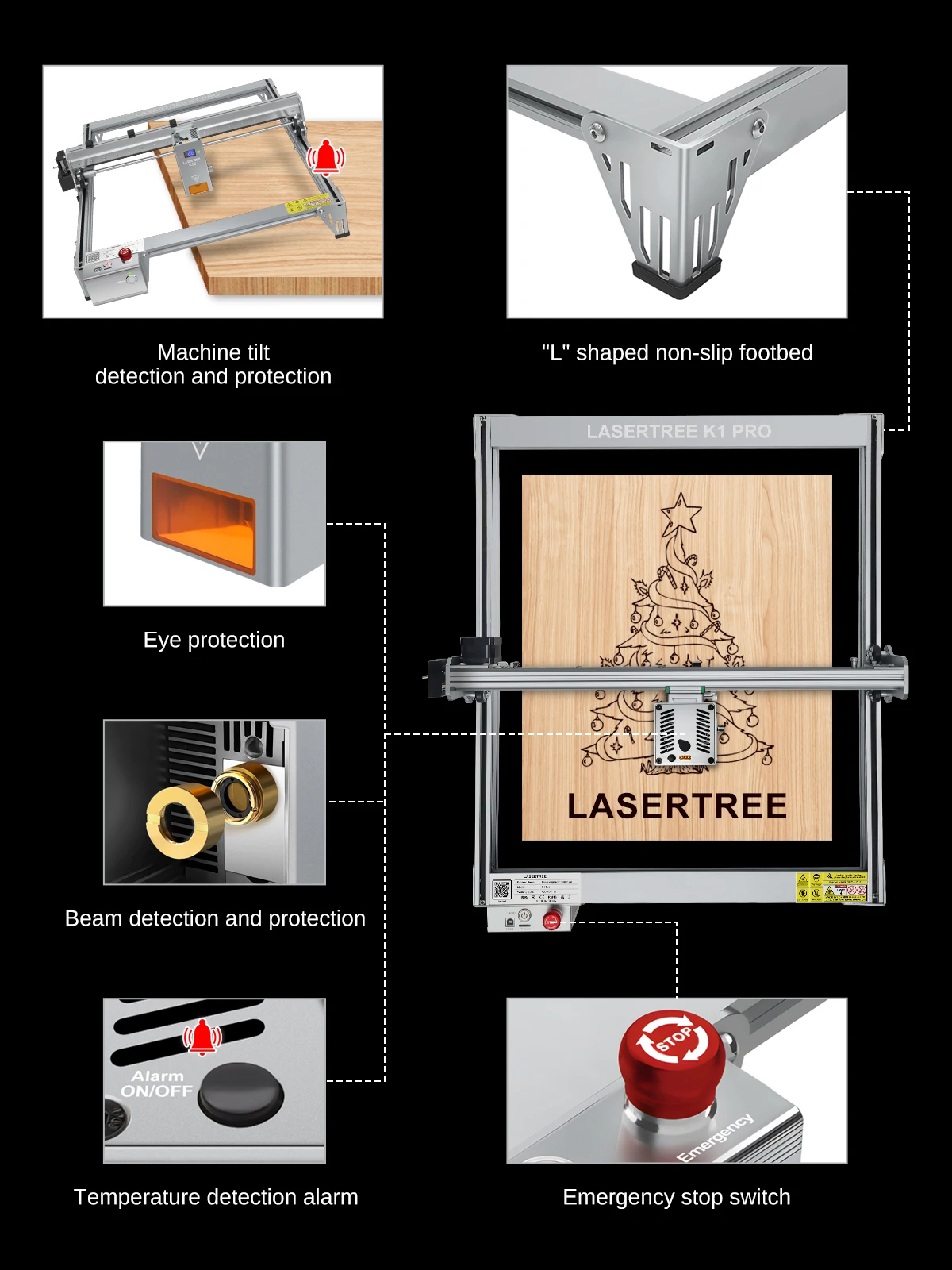

Detail display
①Machine tilt detection and protection：When the engraving machine tilts during operation, the power will automatically cut off.
②"L" shaped non-slip footbed：It provides protection pad keepthe engraver stable while working.
③Emergency stop switch：In case of emergency, you can press the emergency stop button to stop the engraver.
④ Temperature detection alarm:When an over-temperature alarm occurs, press once can turn off the buzzer alarm sound. When the working temperature of the laser module is higher than 55'C, the buzzer will sound an alarm. To get good power stability and durability, it is suggested to keep the module working temperature below 55°c and environmental temperature below 35°C.
⑤Beam detection and protection
⑥Eye protection:Laser View Window---Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

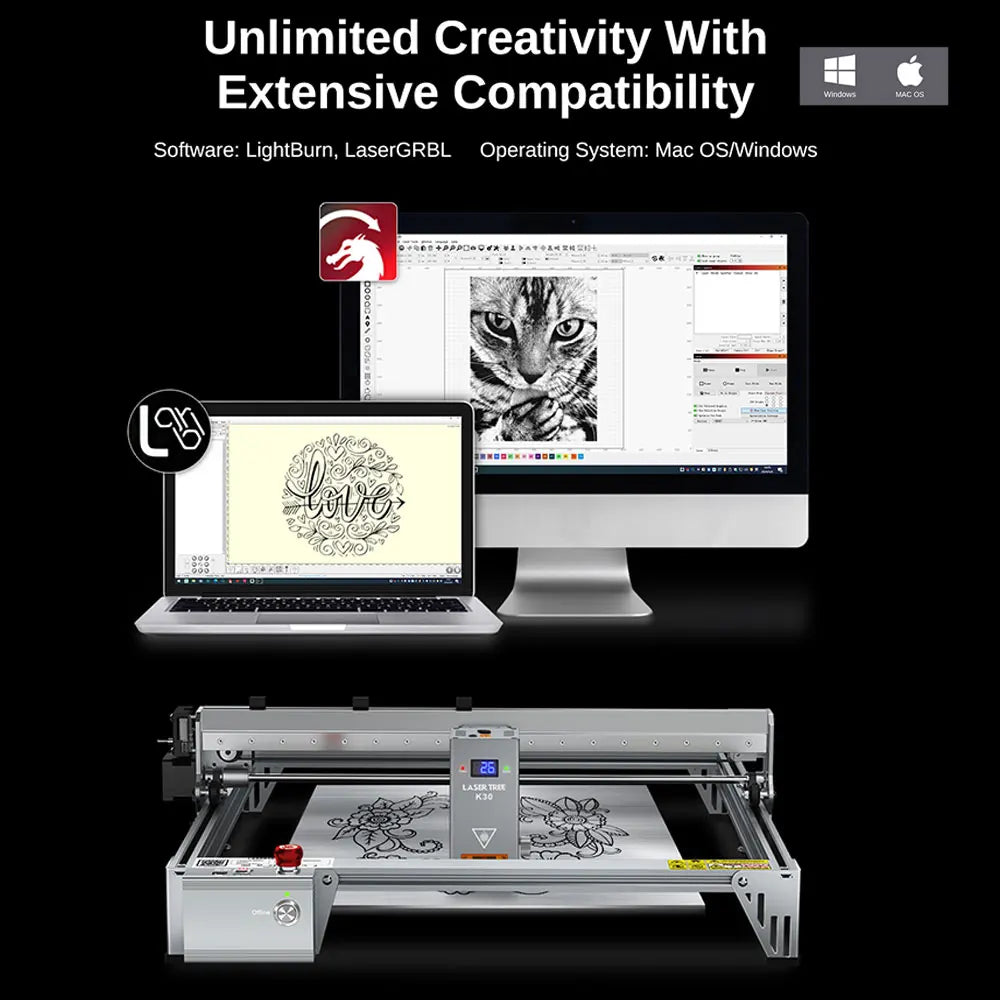

Compatible Software and System
Software: LightBurn,LaserGRBL
Operating System: Mac OS/Windows

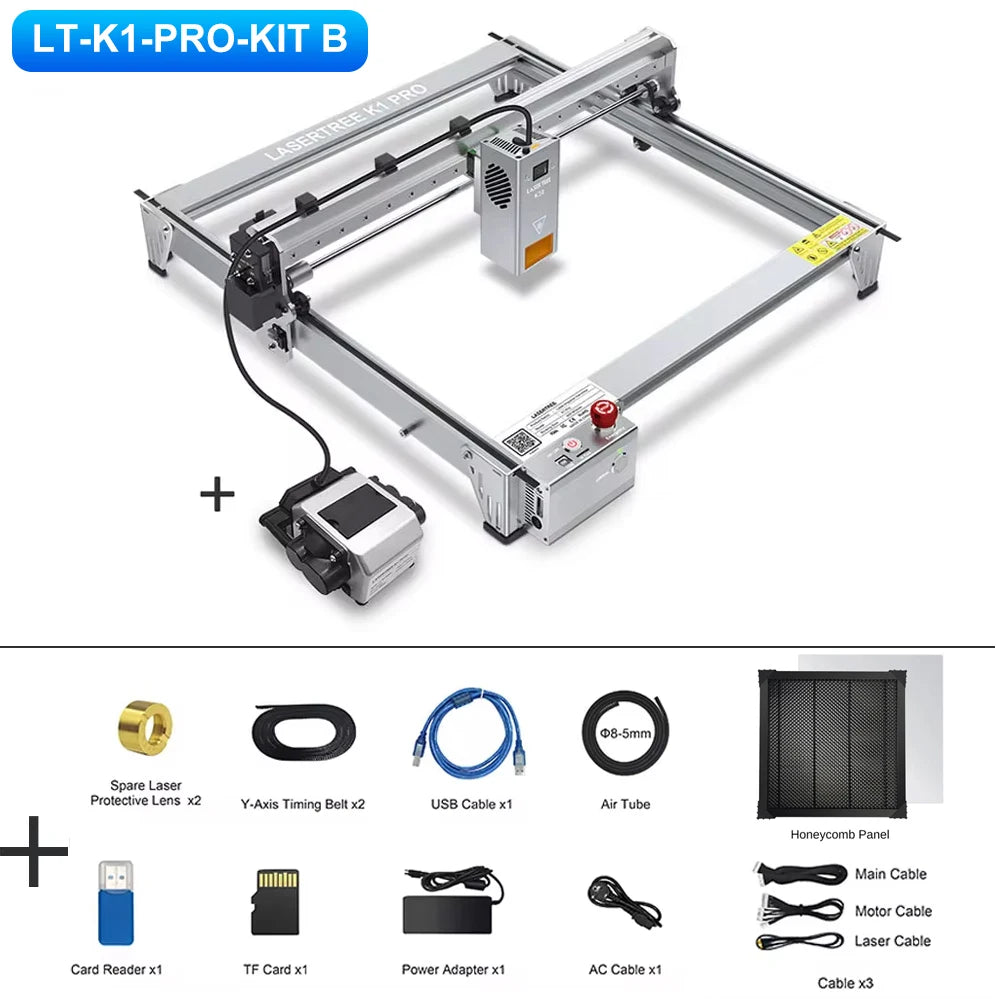

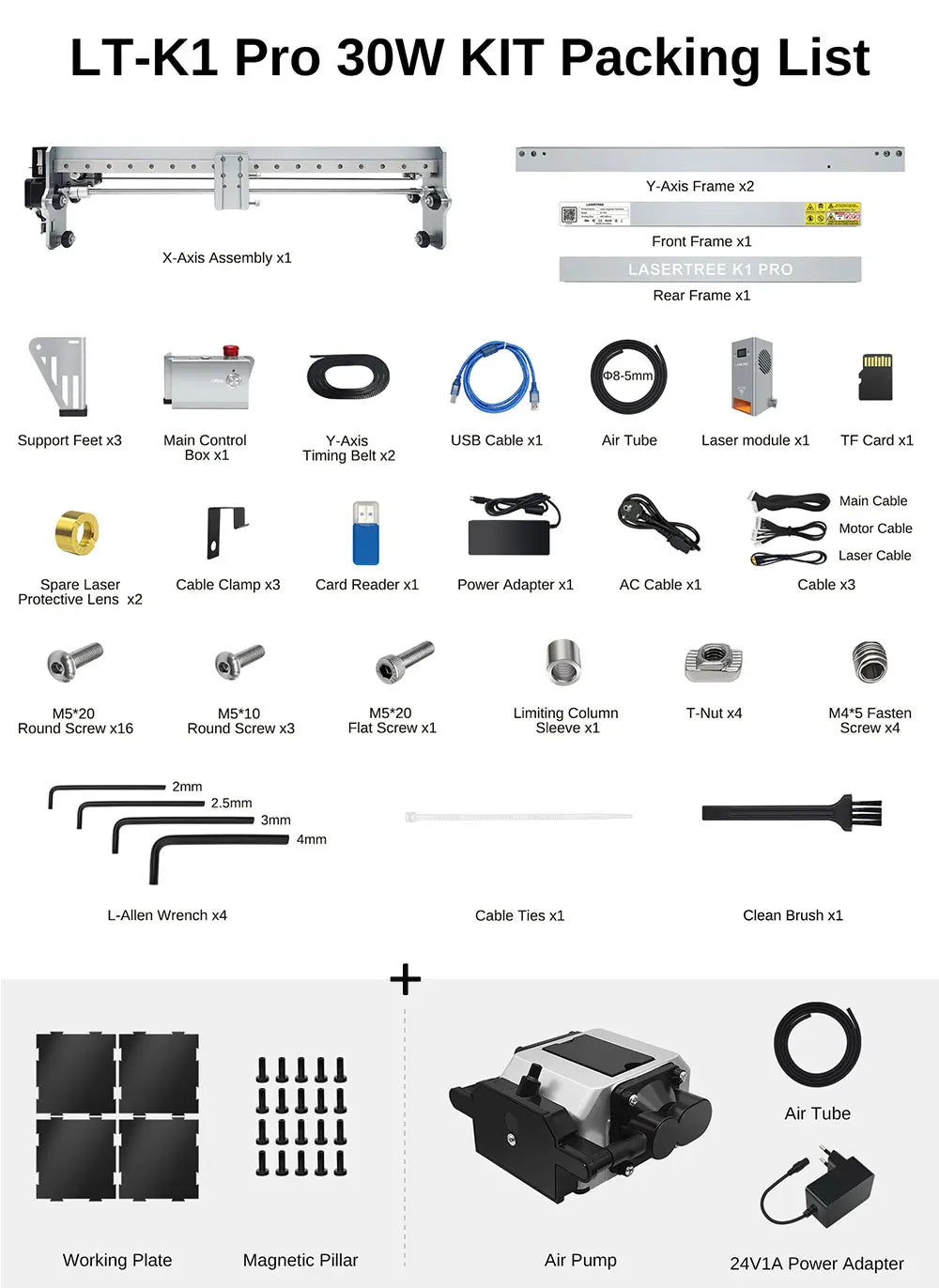

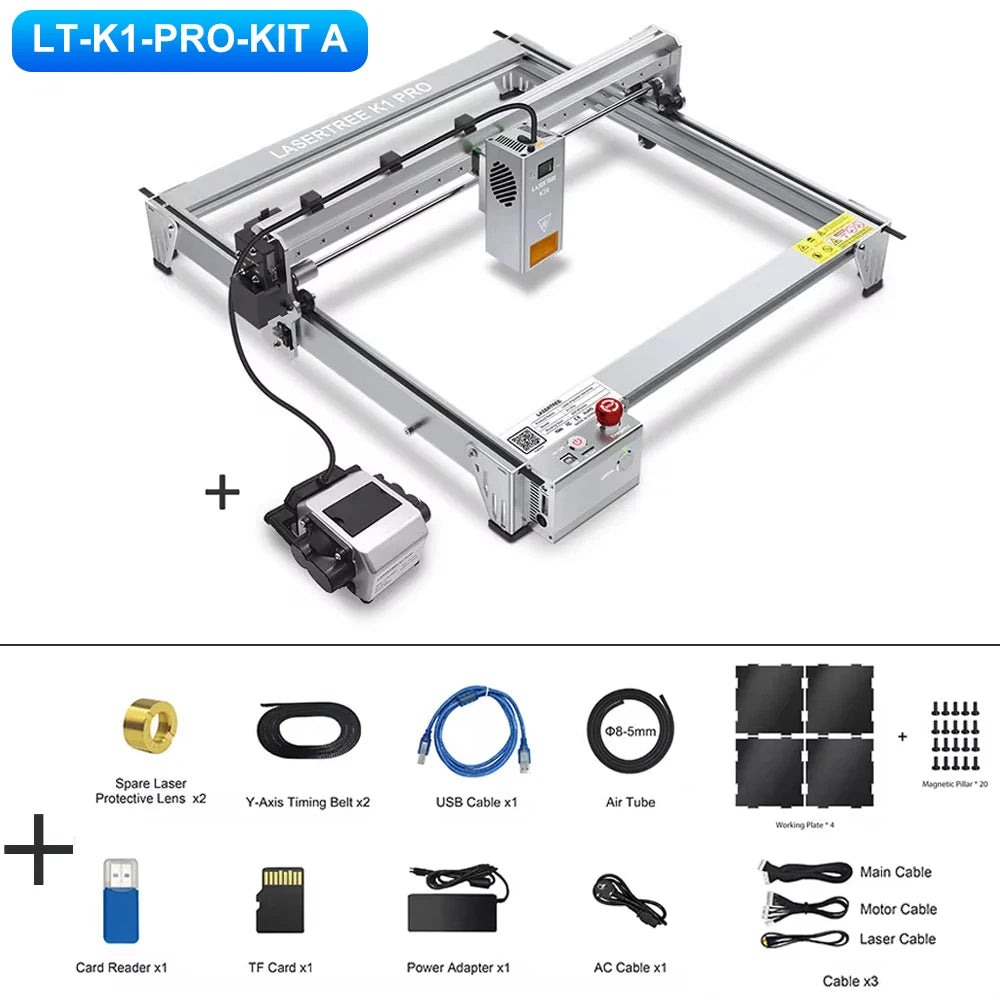

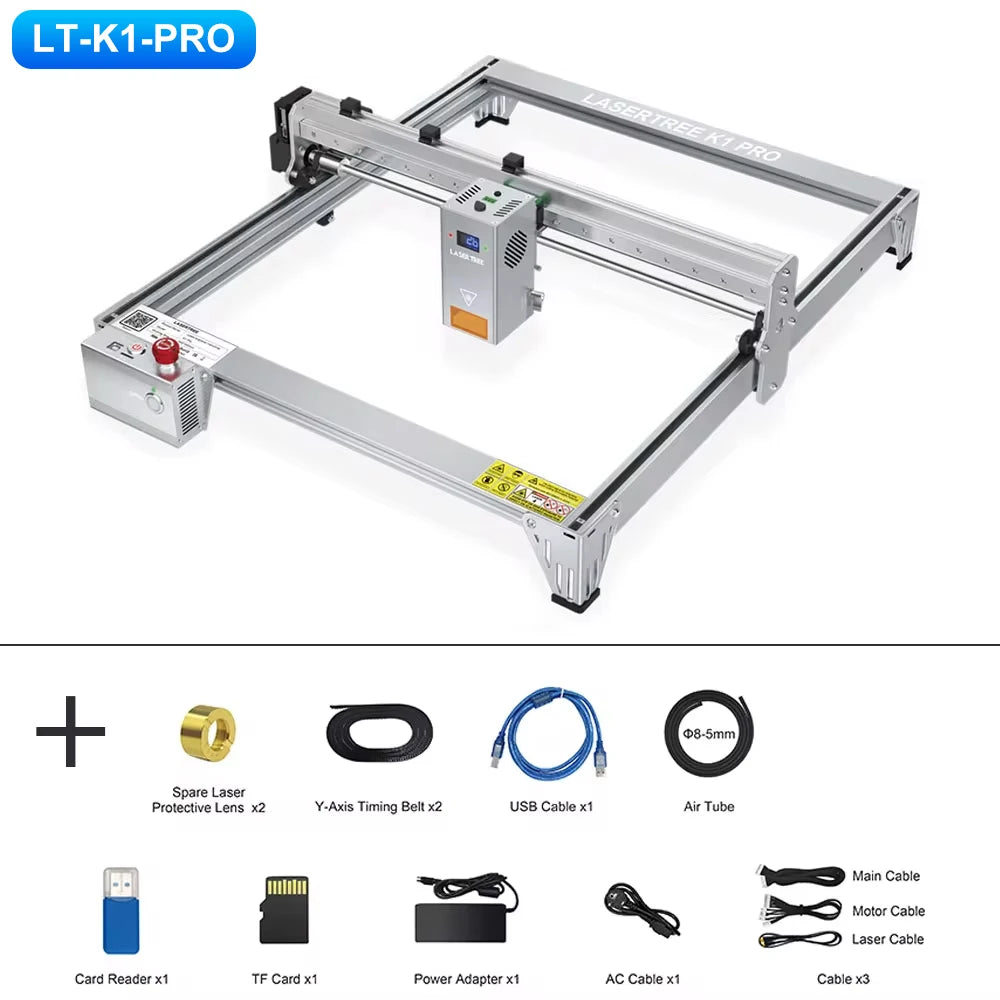

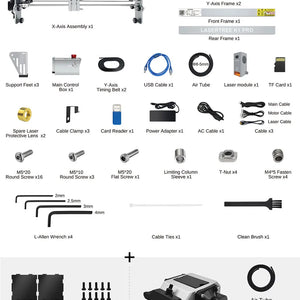

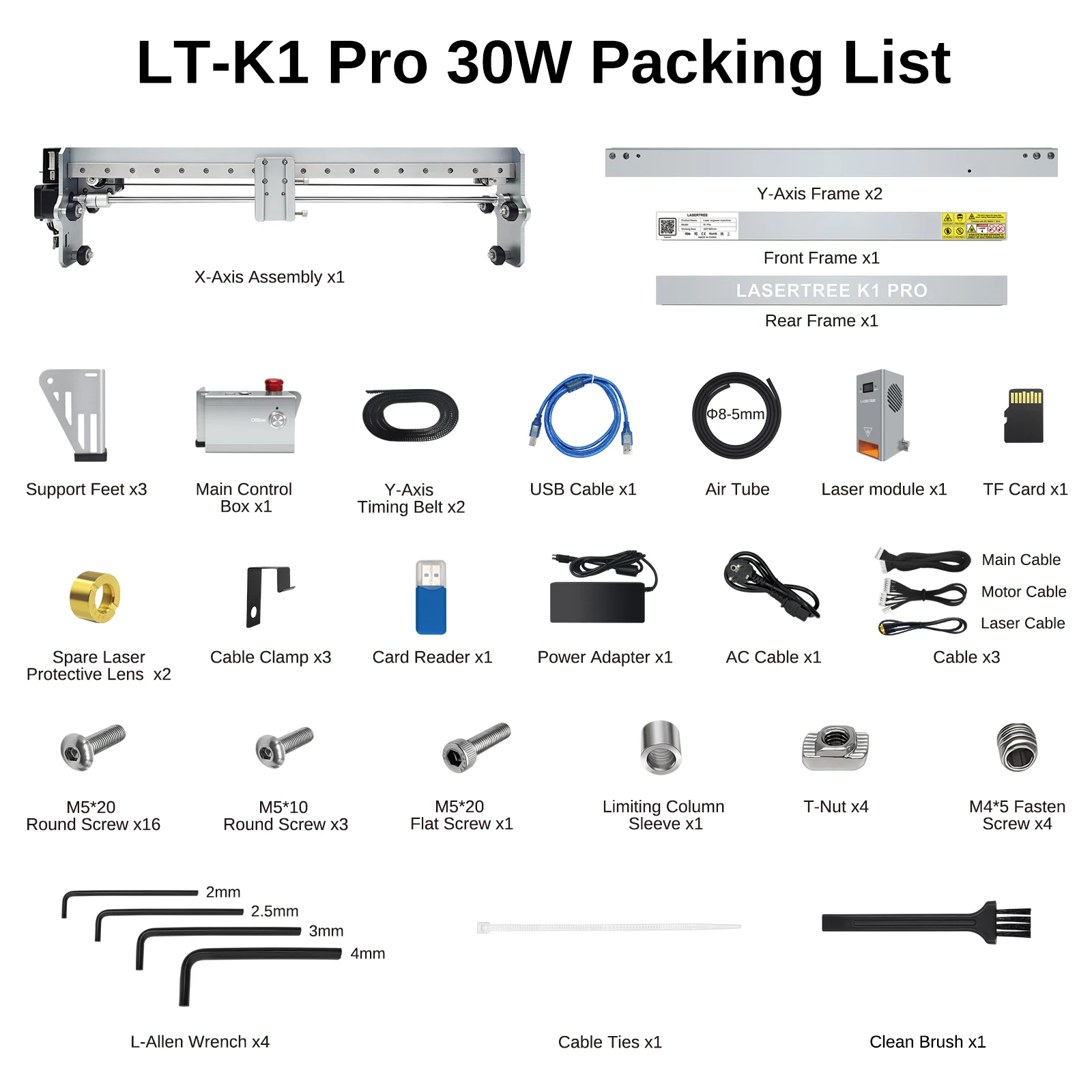

Packing List
1: LT-K1-PRO-40W : (Engraving machine + 40W Laser Head + Assembly tools)
2: LT-K1-PRO-KIT-40W : (Engraving machine + 40W L aser Head + Air pump + Working plate + Assembly tools)
