Grade A 320Ah LiFePO4 Battery 8000 Cycle 3.2V Rechargeable Batteria Lifepo4 Cell DIY 12V 24V 48V For Solar Storage RV EV Camping
- Description
- reviews
SPECIFICATIONS
Application: RV Vans Camping EV Boats Golf Carts Home Solar energy systems,etc,RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery Home energy systems Emergency power supply Backup power Motor Home Trailer,etc
Brand Name: PWOD
Brand New: Yes
Certification: CE
Charging Temperature: 0~60℃
Cycle Life: 8000+ cycles
Discharging Temperature: -30~60℃
Grade: A
Hign-concerned Chemical: None
Internal impedance: ≤0.3mΩ
Model Number: 3.2V LiFePO4 Battery
Nominal Capacity: 300-320Ah
Origin: Mainland China
Rated voltage: 72 V
Rechargeable: Yes
Screw size: M6
Shell Material: Aluminium
Size: 174.8*71.95*207.1mm±0.5mm
Standard charge temperature: 25±2℃
Suit for System: 12V 24V 48V 72V 96V 108V Solar Energy Storage System
Type: LiFePO4
Voltage: 3.2V
Weight: 5.50±0.1kg
Limited coupon codes!!!
1.Codes are valid during the sale:June 16, 00:00-June 25, 23:59 CEST
2.The quantityis limited,frst come frst served!!!
[Fast Delivery To EU]
*The batteries are in stock at our warehouse in Poland. If your address is in Germany,Poland, Italy, Spain, the Netherlands, Belgium,France, Czech Republic, Lithuania, Romania, Bulgaria countries or near the European countries and regions, you can receive the batteries within 15-30 working days after order ship out!!!


[Regarding our labeling issue]
The lithium iron phosphate battery (LiFePO4 battery) or LFP battery (lithium ferrophosphate) is a type of lithium-ion battery using lithium iron phosphate (LiFePO4) as the cathode material, and a graphitic carbon electrode with a metallic backing as the anode.

[About Shipping Address]
Thank you for considering our products. Please note that shipping restrictions may apply to certain areas, and not all details can be listed here. If your order has any issues, our customer service will reach out within 1-3 days. Your cooperation is appreciated.
No delivery to certain postal codes. Check before ordering.
Spain: 07000-07999, 38000-38999, 35000-35999, 51000-52999
USA:Military address and PO box address are not acceptable
Canada: Yukon Territory Area
Russia: The following areas with postal codes beginning with 65/67/68/69: Krasnoyarsk, Yakutsk, Kamchatka, Magadan, Southern Sakhalin.
Malaysia: Postal codes above 86.
For remote areas, additional shipping fees are required.
United States: Hawaii, Puerto Rico, Alaska, Virgin Islands
United Kingdom: Addresses starting with postal code BT in the Scottish Highlands.
Japan: Kanto Region and Okinawa Island
Provide the address in the official language of the local region.
Customers from Russia(Россия ), Japan(にほん) and South Korea(한국)
#1. When placing an order, write the address as a remark in Russian(Русский язык)or Japanese(にほんご) , or Korean(한국어).
#2.If not remarked, you can also leave a message to our after-sales within 24 hours in the chat center.



[Product Specifications]
• Battery Type: Lithium Iron Phosphate Battery
• Product Name: 3.2V LiFePO4 320Ah Battery
• Nominal Voltage: 3.2V
• Nominal Capacity: 300-320Ah
• Work Voltage: 2.5~3.65V
• Cycle Life: ≥8000 Times
• Internal Resistance: ≤0.3mΩ
• Weight: 5.50±0.1kg

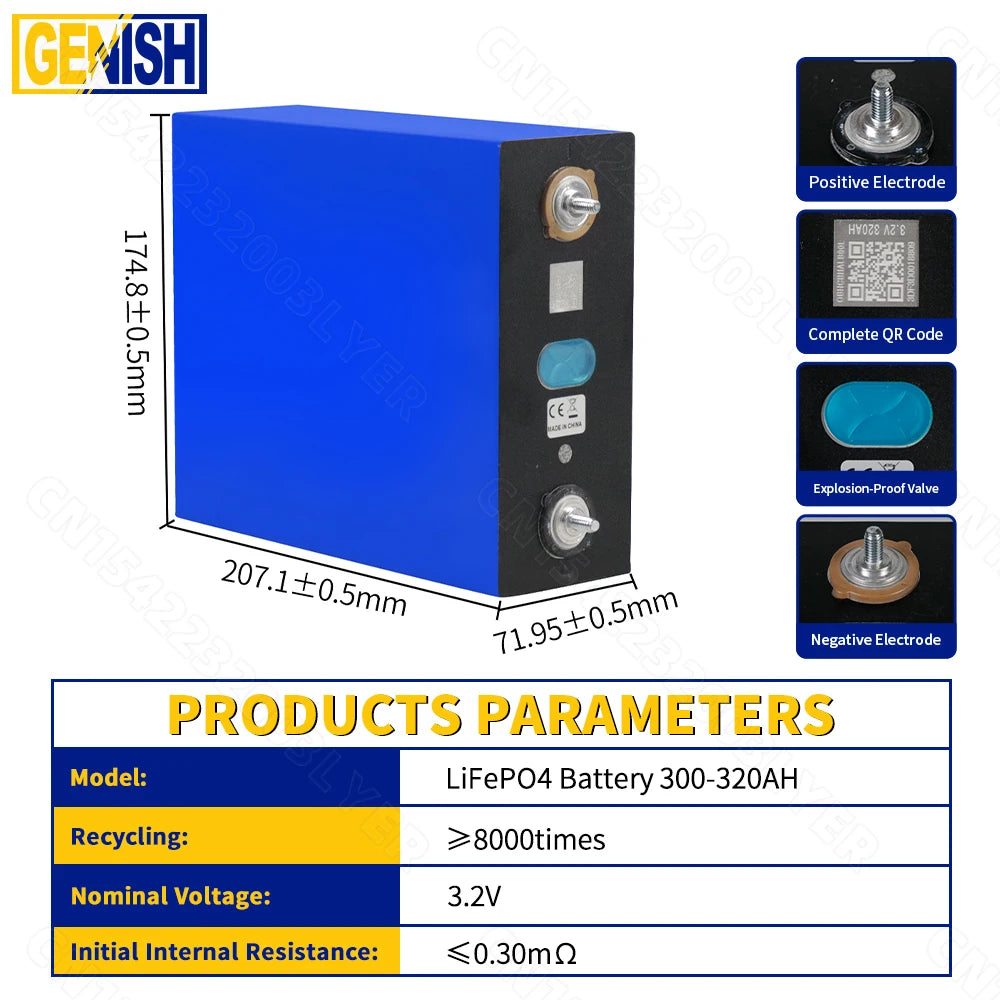

• Dimensions(L*W*H): 174.8*71.95*207.1mm±0.5mm
• Rechargeable: Yes
• Shell Material: Aluminium
• Screw Size: M6
• Standard Charge Rate(25±2℃): 0.5C
• Standard Discharge Rate(25±2℃): 0.5C
• Maximum Charge Rate(continuous): 1C
• Maximum Discharge Rate(continuous): 1C
• Standard charge temperature: 25±2℃
• Charging Temperature: 0~60℃
• Discharging Temperature: -30~60℃
• Suit for System:12V 24V 48V 72V 96V 108V Solar Energy Storage System
• Application: RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery Home energy systems Emergency power supply Backup power Motor Home Trailer,etc


[Product details]




[How To Connection And Assemble]

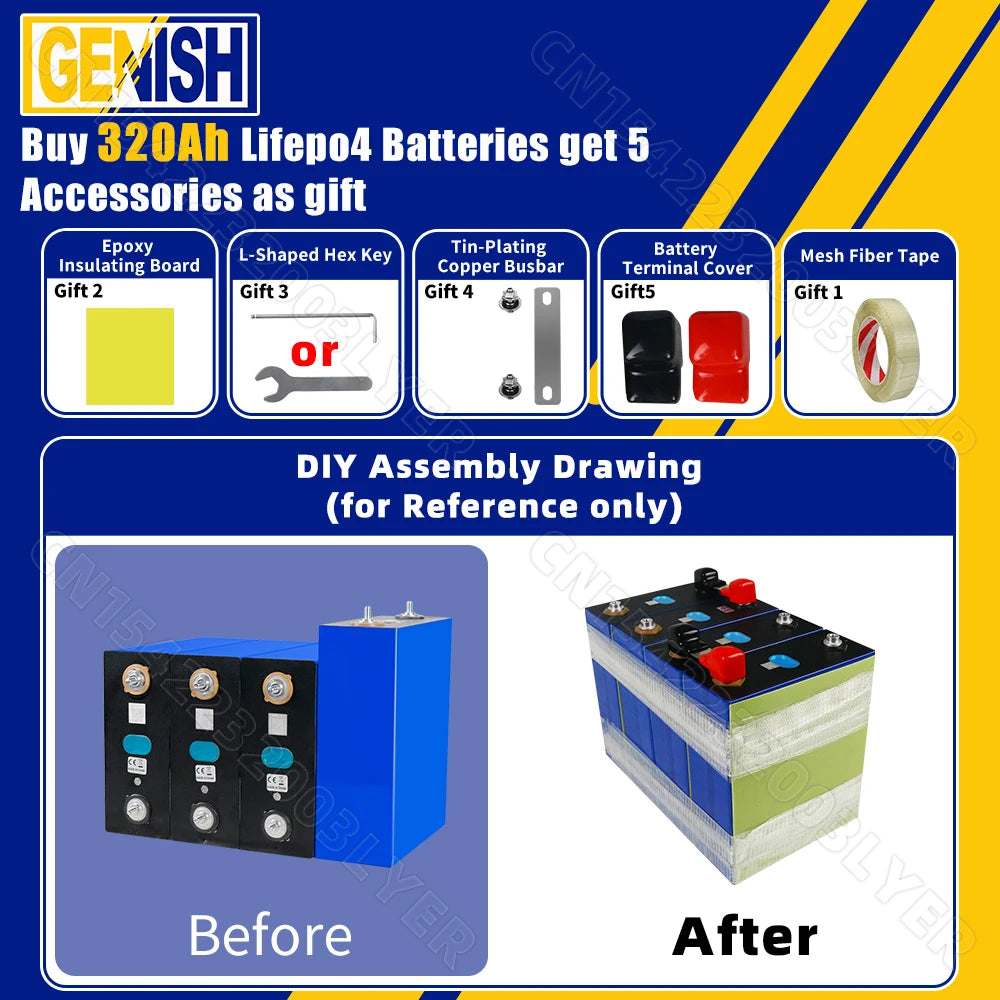

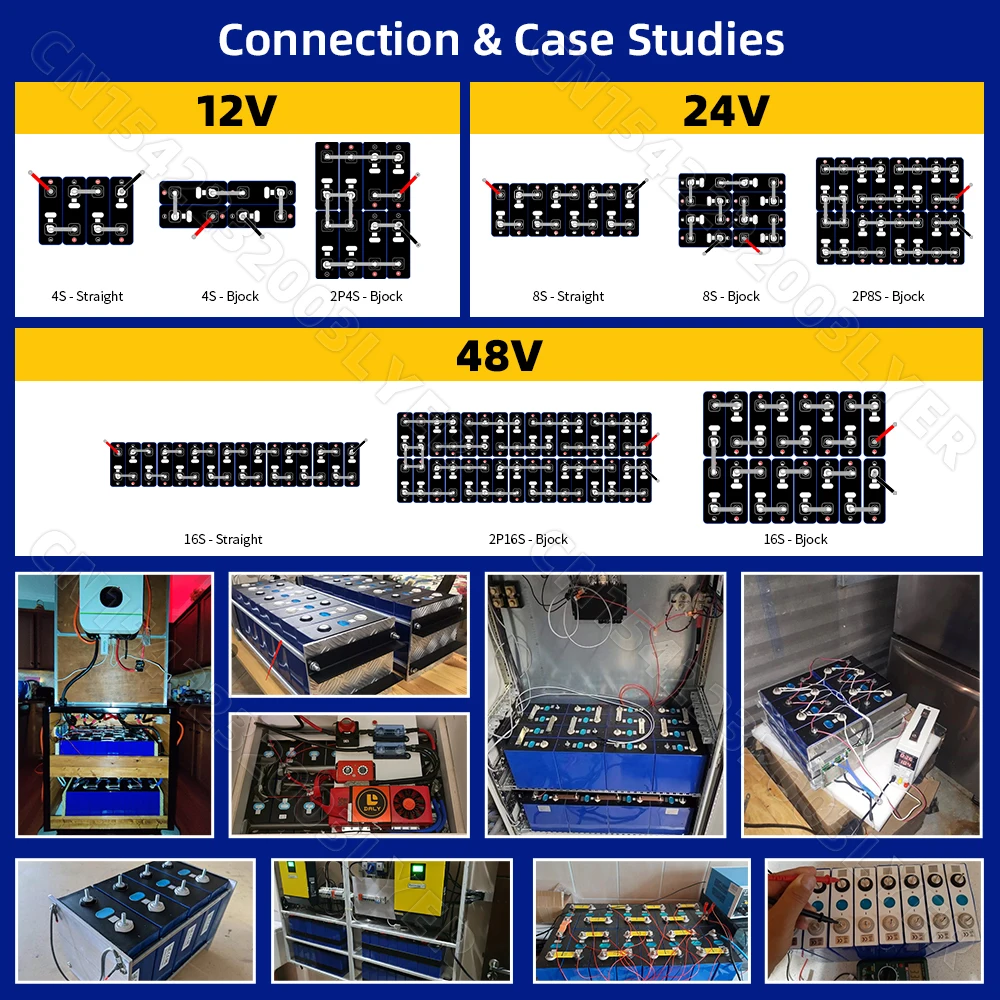

As shown below, you can use a combination of batteries connected in series and parallel to get voltage levels of 12V, 24V, and 48V.Get creative to DIY and build your own battery packs for RV&Trailer/Vans/Campers,Boat,Yacht,Trolling Motor,Golf Cart,Electric Wheelchair,Truck,Home Solar Bank,etc.
1. Please balance the battery cells before assembly.
2. Install and connect the screws.
3. Fix the entire battery pack with an insulation board and wrap it with nylon tape.
4. Install the BMS!!!
*It is recommended that all screw assembly be done manually; It is not recommended to use electric tools since Electric tools have a torque peak that can easily damage the terminals of laser welding.


[Note]
That this model of battery is produced in a high-altitude plant, where nitrogen is injected during production. If there is a Slight bulge, this is normal and will not affect its normal performance. Please don't worry. This can be ameliorated by compression and multiple cycles.



[About Delivery Time]
The below provided transportation time is a general reference, excluding inspection or other exceptional circumstances like natural disasters or traffic.Thank you for your patience and kindly understanding.
Total Delivery Time = Handling Time + Transit Time (+ any Holidays and Weekends and Probability of Delay)Please Noted:Due to the Red Sea incident and peak shipping season, orders from China to Europe are delayed, with a estimated total delivery time of 40-100 business days.
Order ship from China:If your order is shipped from China, the estimated total delivery time to most countries ranges from 25 to 70 business days.
Order ship from local overseas warehouse:If your order is shipped from a local overseas warehouse, the estimated transit time to most countries ranges from 2 to 14 business days.
[Precautions]
1.No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
2.Customers should configure a BMS which is used for strictly monitoring, management and protection.
3.Properly connect the terminals of positive and negative of the batteries. The reversal charging is forbidden. If the polarity is reversed, the battery will be damaged and safety problem may occur.
4.If the batteries kept unused for a long time, it should be charged and discharged at the standard model every six months. Store the battery in the state of 30% SOC (voltage scope: 3.275V~3.305V).
5.AppearanceWithout break,distortion, contamination,leakage.
FAQ
Q:Where are the batteries shipped from and how soon can I receive them if I am in the EU?
A: We will ship for you from our local warehouse in Europe, we have a large number of new batteries in our warehouses in Poland and Germany, if you are in the EU, as we say on our details page, you can receive the batteries in around 7~15 days.
Q:Does the sending battery include BusBar connector and screws?
A: Yes ,we ship the battery with the BusBar connector and screws and enjoy 5 kinds of accessories as a gift for your Excellent DIY Pack.
Q:What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years, the Grade A 320Ah batteries has over 8000 cycles life@25℃ after testing .One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Q:If I want to solar charge LiFePO4/Lithium Ion battery, which already has PCB, would a normal controller work fine?
A: For LiFePO4 / Lithium Ion battery, we always recommend to use LiFePO4/Lithium Ion solar controller. Especially if you are using the battery as UPS (back up power supply). The Lead Acid solar controller will constantly provide pulse current to the battery, in the long run, it might damage the PCB. So the PCB won't be able to protect the battery when it should be.
Q:I am a distributor. Can I cooperate with battery warehouse for a long time?
A: Yes,Individual pricing for large scale projects and wholesale demands is available.
Q:Why I can't buy cells from your store?
A: This is usually unable to provide accurate logistics prices for your country. If you have any demand, please feel free to contact us.
Q:Is the cells I bought balanced?

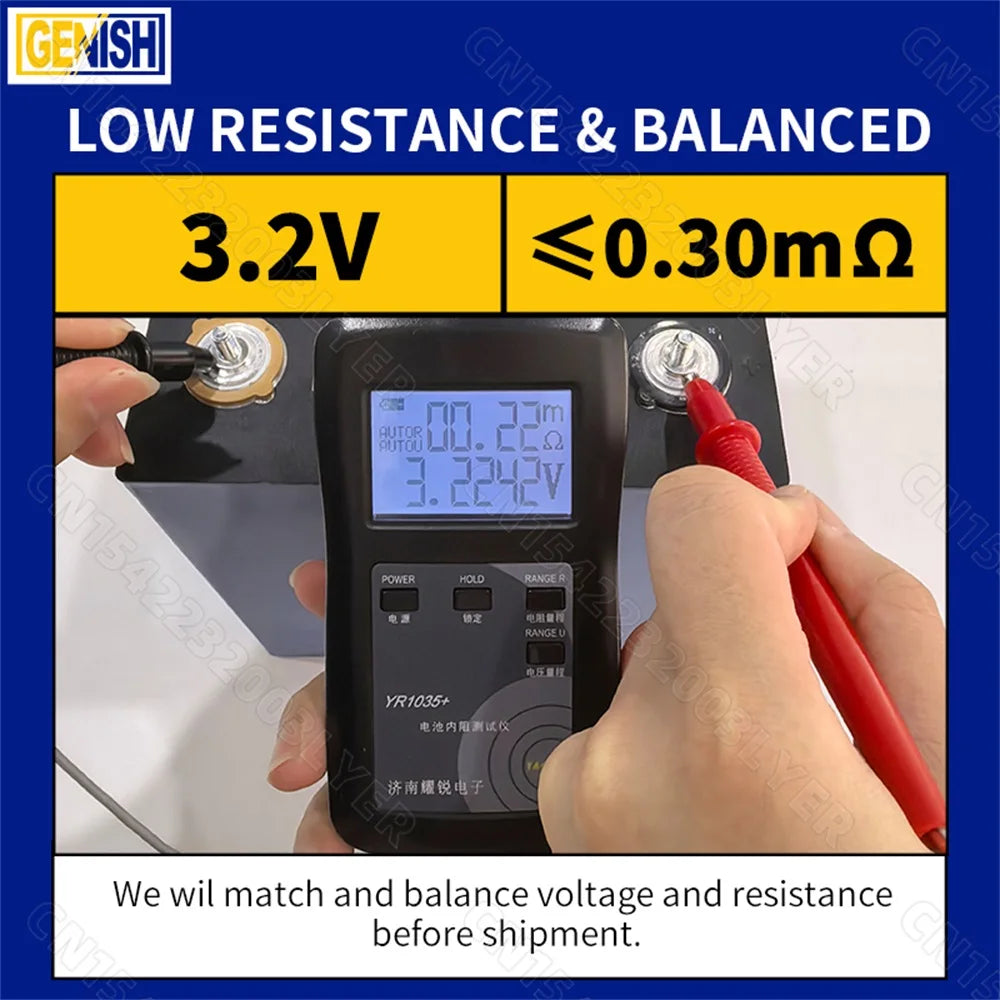

A: We know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
Q:Why hasn't my ups or Fedex transportation number been updated?
A: This is normal, because in countries with tariffs, our packages need to pass the customs of your country before they can be delivered to the local UPS or FedEx. Once they pass the customs and update the transportation number, you can usually receive the goods within 3-5 days.
⭐In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order. Can Not give us bad feedback due to the courier company or because of the courier service slow or other factors. open dispute will be unacceptable. Sorry for any inconvenience.
[Reminder]
DIY battery pack must get the cells balanced (same voltage) before assembly. Later if there happens don't know how to assembled or unbalanced assembly is not accepted refund. please consider before taking orders, place order means you have agreed. thank you for your cooperation!
