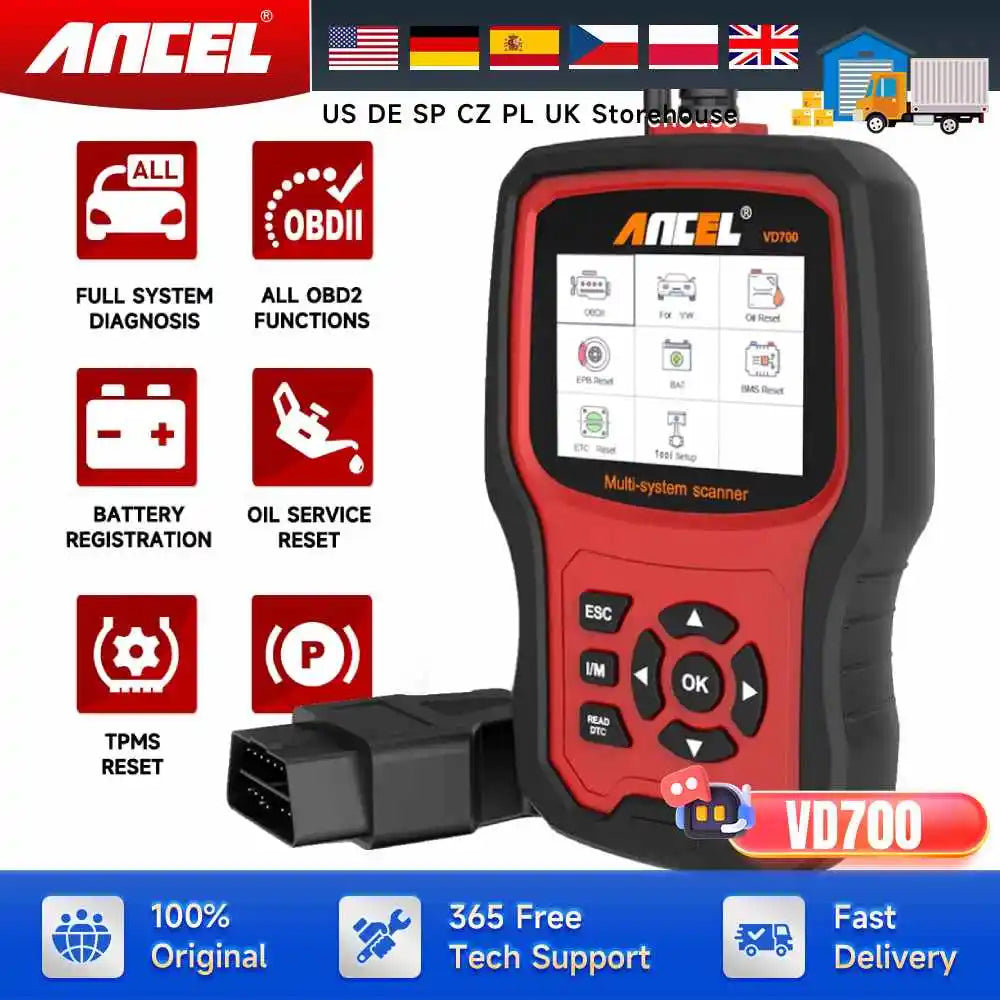

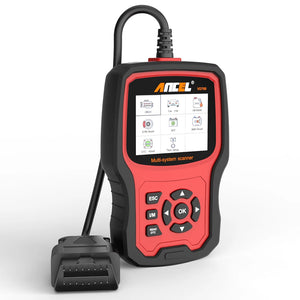

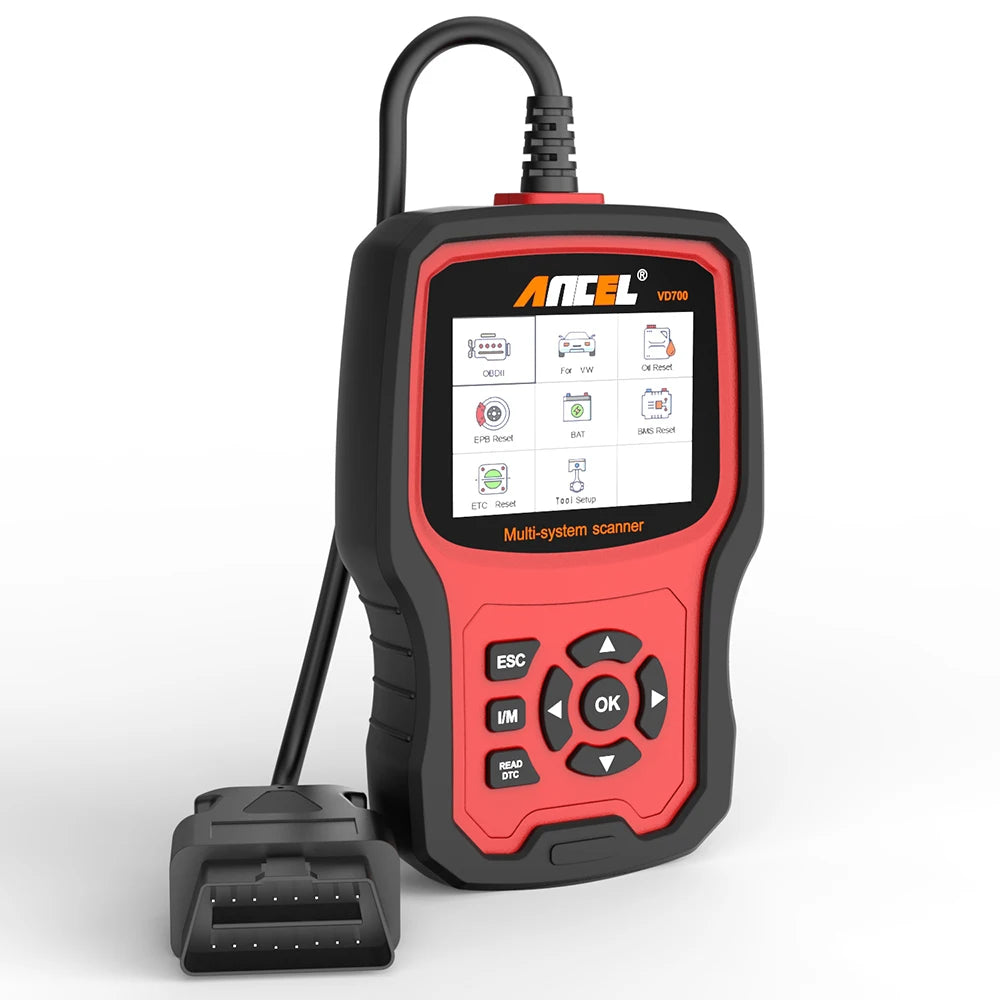

• Upgraded Version: ANCEL VD700 is an upgraded version of the ANCEL VD500 OBDII scanner.

• All Systems Diagnostic: it can do all systems diagnose,such as ABS, Transmission, SAS, SRS, ESP, TPMS and other systems.

• 8 Reset Functions: throttle position adaption, brake pad reset, TPMS reset, steering angle learning, oil service reset, injector learning, Battery Registration and DPF reset.

• Full OBDII Functions: (Check Engine & Smog Test) Read codes,clear codes,data stream,I/M readiness,Vehicle information,
  EVAP test result

• Lifetime Free Update: via USB connect to computer to update.

• Support 11 Languages:English,French,Spanish,German,Russian,Swedish,Portuguese,Finnish,Norwegian,Danish

• Features:Special Feedback Function & Automatic vehicle model identification

• 2 Mode Switching: Day Mode and Night Eye Protection Mode

ANCEL VD700 All Systems Diagnostic Fit For VW/Fit For AUDI/Fit For SKODA/Fit For SEAT Serial Cars

All Systems Basic Functions:

Version information,Read fault codes,Erase fault codes,Data stream,Basic settings,Adaptation and Access Authorization

Scan of All Control Modules:

1.Engine system

2.Auto transmission system

3.ABS brake system

4.Auto HVAC system

5.Center electronic system

6.Airbags system

7.Steering wheel system

8.Instrument system

9.Immobilizer system

10.Navigation system

11.Radio system

12.Diesel pump system

13.Electric drive

14.Battery regul

15.Battery charger

16.Parking brake

17.Steering angle

18.Suspension alect

19.Sound system

20.Chassis control

21.Tire pressure

22.Active steering

23.Door electric system, drive/pass/rear left/rear right

24.Slide door, right/left

25.Automatic light

26.HAVC Heating, Ventilation and Air Conditioning

27.Air Condition Clutch .....Etc

8+ Most Commonly Used Maintenance Functions Fit For VW/Fit For AUDI/Fit For SKODA/Fit For SEAT Serial Cars

Electrical Park Brake (EPB) Reset: EPB(Electrical Parking Brake) is a technology that realizes parking brake by electronic control. VD700 is an essential tool required to release rear electric parking brake unit when replacing the rear pads or discs so that the caliper piston can be moved back. It can also clear codes and turn off the EPB light when it’s done.( Note: For more EPB steps, please refer to product guides and documents.)

Battery Registration: Re-match the control module and motoring sensor, clear original low battery information. After replacing the battery, you need to register, please select the corresponding battery capacity, brand and serial number.

DPF Regeneration: The most common reasons for DPF failures are: Short journeys where the engine doesn't reach optimum operating temperature. Clogged EGR Valve increasing diesel soot passed to the DPF. Faulty fuel injectors send too much fuel to the air/fuel mixture. VD700 will perform a forced regeneration, turn off the DPF light and reset ECU after the filter has been replaced, and reset the additive light after topping up.

Oil Service Reset: When you want to reset your oil service after you change the oil or simply want to reset your vehicle inspection warning light(please make sure your vehicle is in good condition), this is the device you need.

Steering Angle Sensor Calibration: You can use VD700 to read the fault codes, perform the sensor calibration if needed, and clear the codes when you done. ( Note: 1. Set the steering wheel to the center point and align the front wheels straight ahead before you do the SAS reset. 2. If the SAS MIL light illuminates on the dashboard after you reset the SAS and the codes can't be cleared, then you need to turn the ignition on, pulling the wheel as followed: its the left end, its the right to end and then back to the center point. )

Injector Learning: Once you have replaced the car injector, you will need to write a new injector code to inform the ECU how much compensation is required to achieve the optimum in lowering emissions and provide smooth running. VD700 can help you complete this process.

TPMS Reset: You can use VD700 to clear the codes and turn off the TPMS warning light after you replaces the tire. ( Note: Some TP20 protocol vehicles don’t support this function, please use the vehicle’s reset button to reset the TPMS warning light.)

Throttle position Adaption: If these problems occur: the engine may be stalling or misfiring, poor engine performance, lack of power, transmission (gear) may not be shifting correctly, it means that you need to get the throttle position sensor (TPS) inspected. After that, the trouble codes will need to be cleared. VD700 can clear codes and reset the TPS. ( Note: All protocols are supported, but the KWP1281, KWP2000, and TP16 protocols require manual operation.)

Oil Light Service Reset

The Engine Oil Life System calculates when to change the engine oil and filter based on vehicle use. An oil change is required whenever indicated by the display and according to the recommended maintenance schedule. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where the oil is changed prior to a service indicatorbeing turned on, also reset the system.

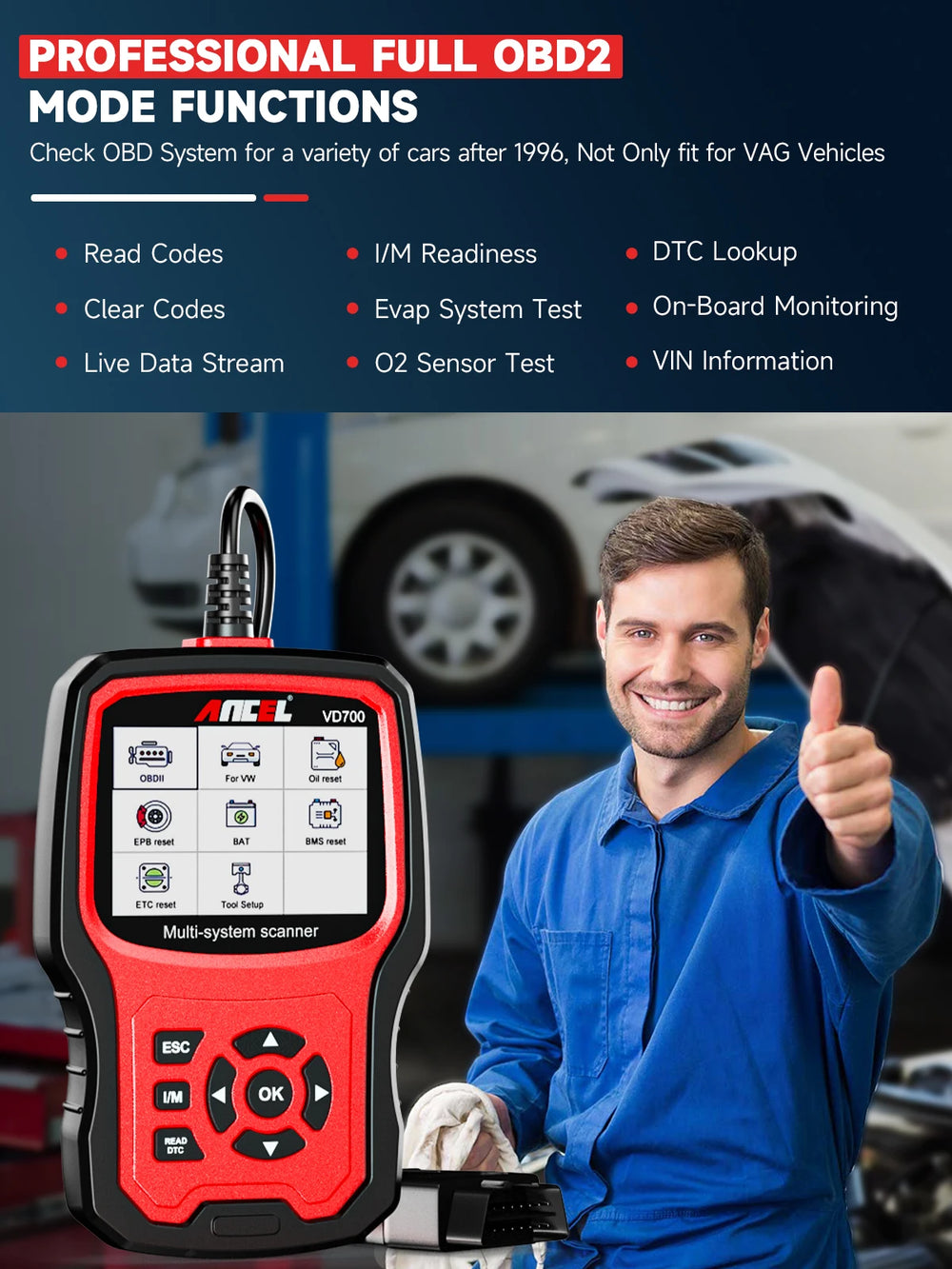

OBD 6 modes and other functions for OBD II vehicles:

Read and Erase Codes, Retrieves VIN Information, Test EVAP system, Read Data Stream, I/M Readiness, Battery Test Function.

Battery Registration

Disregarding the need to register and code for a new battery may result in improper charging. VD700 code reader can help you register a new battery once you replace it. Just click for VW - special function - battery registration.
Note:
1. You will need to enter the battery capacity, brand and serial number during this process.
2. Not all vehicles need to do the battery reset after changing batteries.

Ancel VD700 OBD2 Scanner Vehicle Testing Coverage list

Please Note: if you are not sure whether your car supported, or you focus on some function, please remember to contact me, and then send me your car models and year as below: xx car brand, xx car model,xx car release year. thanks

Multi-Language Available

English, French, Spanish, German, Russian, Swedish, Portuguese, Finnish, Norwegian, Danish. Meet the needs of customers in various countries.

Life-time Free Update Service

Life-time free software updates and special feedback function available to fix the latest bugs or add new parameters. Just download the software from the official website, then follow on-screen instructions to install.

Product Packing

1 X VD700 Scanner
1 X User Manual,
1 X Data Cable
