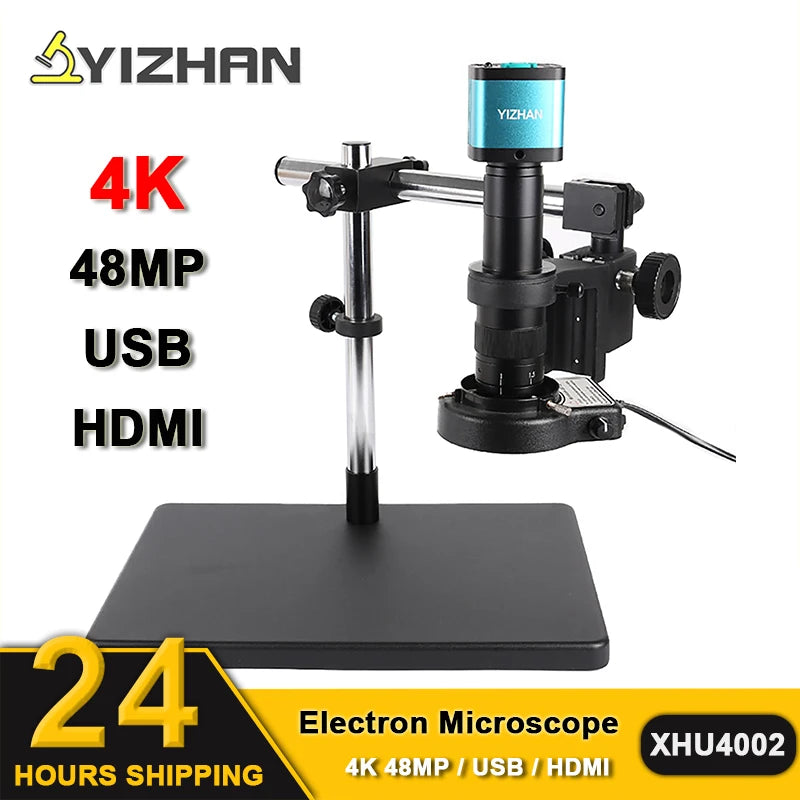

4K 48MP USB HDMI Digital Video Electronic Microscope Camera 130X 150X 180X Zoom C Mount Lens LED Light Lab Phone Repair Tools
- Description
- reviews
SPECIFICATIONS
Brand Name: YIZHAN
Camera interface: C/CS
Centerline: Support
Certification: CE,FCC
Color: blue
Drawtube: Monocular
Exposure: automatic/manual
Exposure compensation: support
Features: High Definition,Handheld,Portable,Digital
Funtion 1: microscope
Funtion 10: ring light
Funtion 11: trinocular microscope
Funtion 12: Magnifier
Funtion 13: usb microscope
Funtion 14: Monocular
Funtion 15: Loupe magnifier
Funtion 16: children's microscope
Funtion 17: Electronic microscope
Funtion 18: Electron microscope
Funtion 19: child microscope
Funtion 2: Digital microscope for electronics
Funtion 20: trinocular microscope camera
Funtion 21: microscope digital
Funtion 22: zoom lens for mobile
Funtion 23: microscope for cell phones
Funtion 24: Phone repair
Funtion 25: Electronic digital microscope
Funtion 26: microscope for kids
Funtion 27: microscope children
Funtion 28: microscope backlight
Funtion 29: Camera
Funtion 3: digital microscope
Funtion 30: tools to repair cell phones
Funtion 4: Microscope for soldering
Funtion 5: microscopio
Funtion 6: Cell screen magnifier
Funtion 7: pocket microscope
Funtion 8: microscopes
Funtion 9: microscope for mobile phone
Gross weight: 450g
HDMI output: 1920*1080 60FPS
Hign-concerned Chemical: None
Input voltage: DC 5V-12V
Is Smart Device: No
Line: Supports 8 straight lines with adjustable color, thickness h and position
Magnification Ratio: 500X & Under
Material: Metal
Menu language: English/Chinese
Model: XHU4002
Model Number: XHU4002
Net weight: 250g
Origin: Mainland China
Output interface: HDMI USB
Packaging size: 145*130*70mm
Product size: 60*60*70mm
Remote control: supports remote control operation,Yes
Resolution: 1920*1080P
Sensor: 1/2.8-inch imported Sony CMOS image sensor
Size: 2.9um * 2.9um
Storage: Maximum support 64GB
Theory: Video Microscope
USB output: 1920*1080/30, 1280*720/30, 640*480/30, 320* 240/30 (MJPG)
White balance: automatic/manual, RGB adjustable
YIZHAN Model: YZA-H1605B

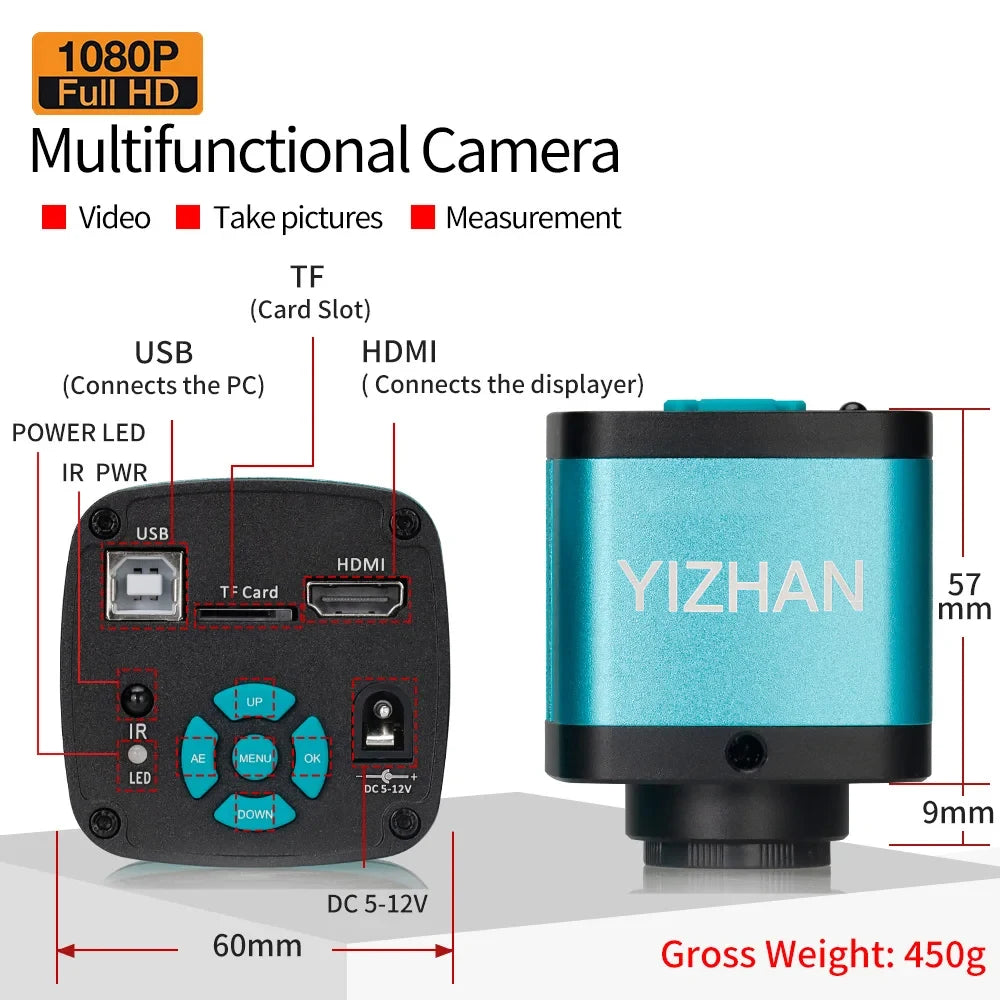

Camera Description:
◆Using 2 million pixel imported Sony CMOS image sensor;
◆Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;
◆HDMI 1080P 60 frames image output;
◆USB2.0 driver-free output 1080P 30 frames image output;
◆4K video recording;
◆Maximum 4800MP photo, JPG format, photo size 4608x3456;
◆One-click freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure and exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green and blue are adjustable;
◆Provides 8 line drawing functions, the line color, thickness and position are adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, up to 64GB;
◆Support remote control operation, take pictures without shaking and the image will be clearer;
◆Support Chinese and English menu languages (default English);
◆Supports saving shutdown setting parameters;
◆Sturdy metal shell;
Specification:
Sensor: 1/2.8-inch imported Sony CMOS image sensor
Size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
USB output: 1920*1080/30, 1280*720/30, 640*480/30, 320* 240/30 (MJPG)
Camera interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, RGB adjustable
Storage: Maximum support 64GB
Input voltage: DC 5V-12V
Line: Supports 8 straight lines with adjustable color, thickness h and position
Centerline: Support
Menu language: English/Chinese
Remote control: supports remote control operation
Model: XHU4002
Color: blue
Net weight: 250g
Gross weight: 450g
Product size: 60*60*70mm
Packaging size: 145*130*70mm
Output interface: HDMI USB
Resolution: 1920*1080P
Remote control: Yes
Package includes:
1*XHU4002 microscope camera
1*adapter
1*HDMI cable
1*USB communication interface cable
1*remote control
1*Instruction manual










HDMI Connects to the Display
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available

USB Connection to Computer
1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.
Software Link::https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1

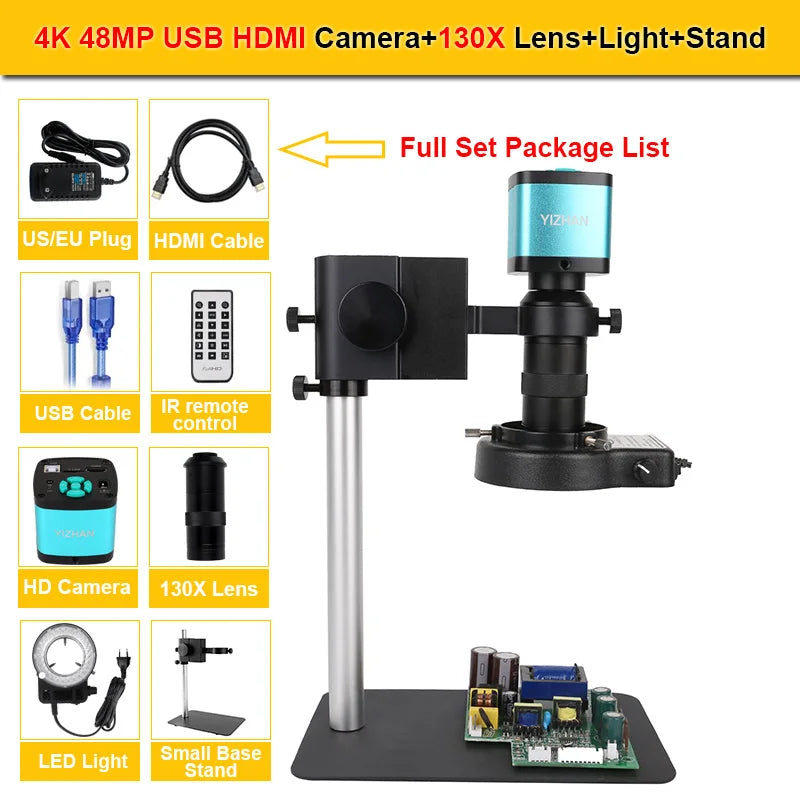

130X Lens specifications:
nstallation diameter: 40mm
Working distance:40mm-220mm
Zoom ratio:1:17
Magnification: 0.1-1.3X (approximately 1-130X on the display)
Maximum magnification field of view: 8mm*4.5mm
Minimum magnification field of view: 40mm*33mm
Size: 115mm (length) * 40mm (diameter)
Weight: 210g

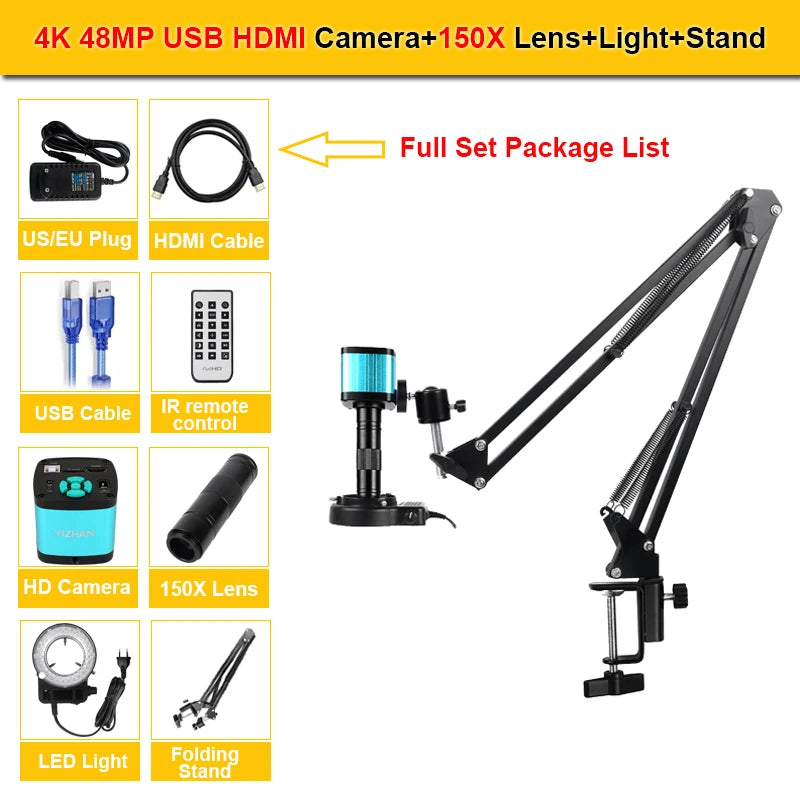

150X lens specifications:
Installation diameter: 28mm
Working distance:50mm-1000mm
Zoom ratio:1:15
Magnification 0.15-2X (approximately 1-150X on the display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 99mm (length)
Weight: 100g
Suitable camera size: 25mm

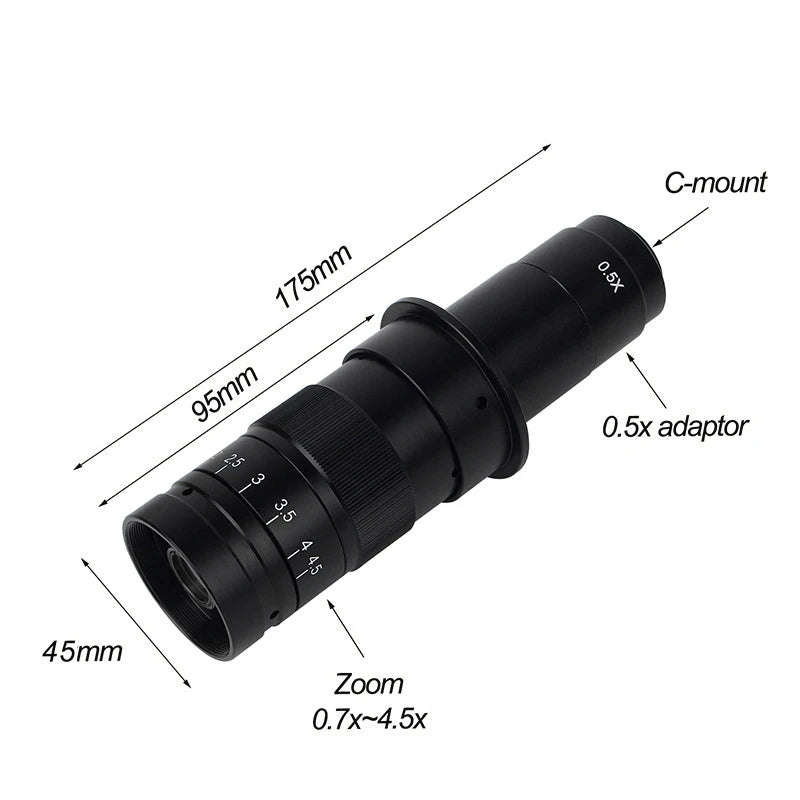

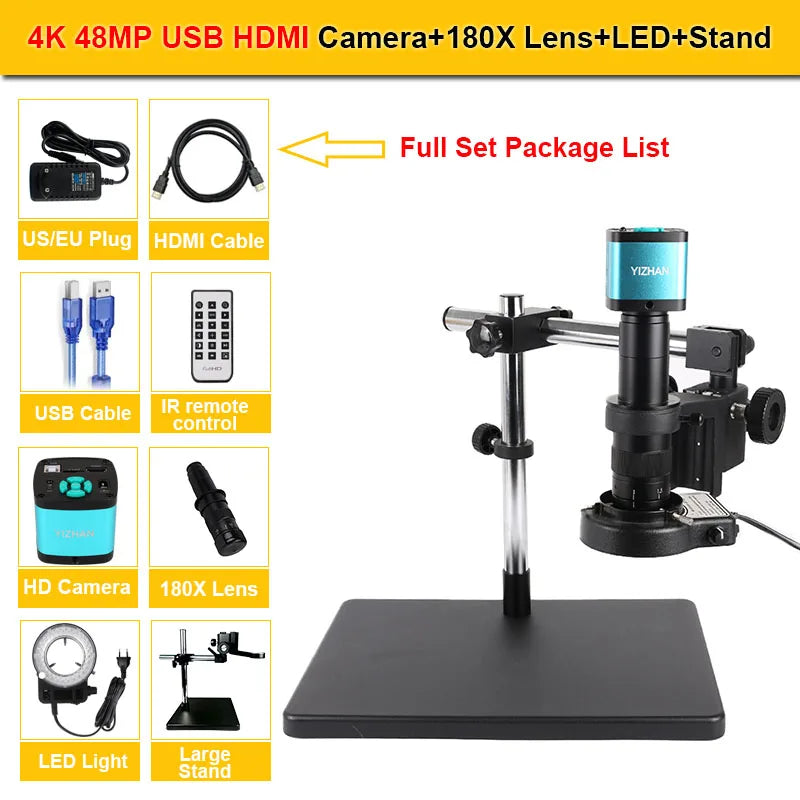

180X lens specifications:
Installation diameter: 50mm
Working distance:100-150mm
Zoom ratio:1:6.5
Magnification: 0.7-4.5X (approximately 1-180X on the display)
Maximum magnification field of view: 2.8mm*1.5mm
Minimum magnification field of view: 25mm*14mm
Eyepiece:0.5X
Size: 168mm (length)*50mm (diameter)
Weight: 570g




Ring Light Specifications:
Material: plastic
Color: black/white
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power input: 110V-220V
Output voltage: DC12V/1A
Number of LEDs: 56
Working life: 100000 hours
Color temperature: 6500K
Effective distance: 50-300mm
Inner diameter: 63mm
Outer diameter: 97mm
Light color: white light










Folding Stand Specifications:
Material: aluminum alloy
Size: 34*32cm
Weight: 540g
Maximum bottom installation size: 50mm
Function: microscope stand, microphone live broadcast stand, mobile phone stand






Small Base Specifications:
feature:
This microscope workstation can be adjusted up or down to suit your requirements
Can help the microscope rotate to any angle
The microscope lens can be fixed on this holder
Product size: Assembly base size: 150mm*220mm
Main column height: 290mm
Lens mounting inner diameter: 42mm

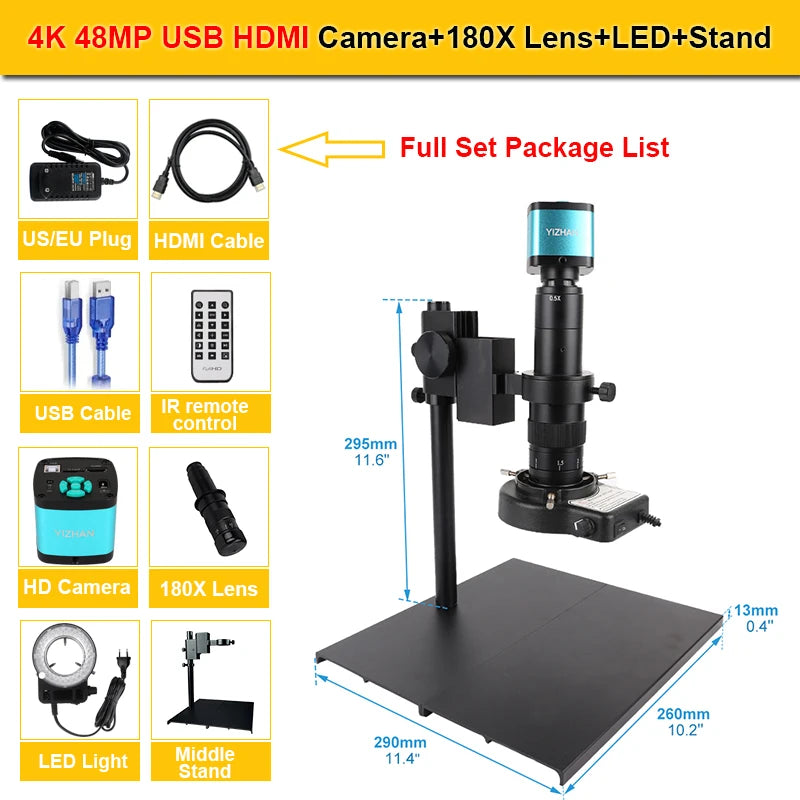

Middle base specifications
Features:
This microscope workstation can be adjusted up or down to suit your requirements
Can help the microscope rotate to any angle
The microscope lens can be fixed on this holder
Product size: Assembly base size: 260mm*290mm
Main column height: 290mm
Lens mounting inner diameter: 50mm

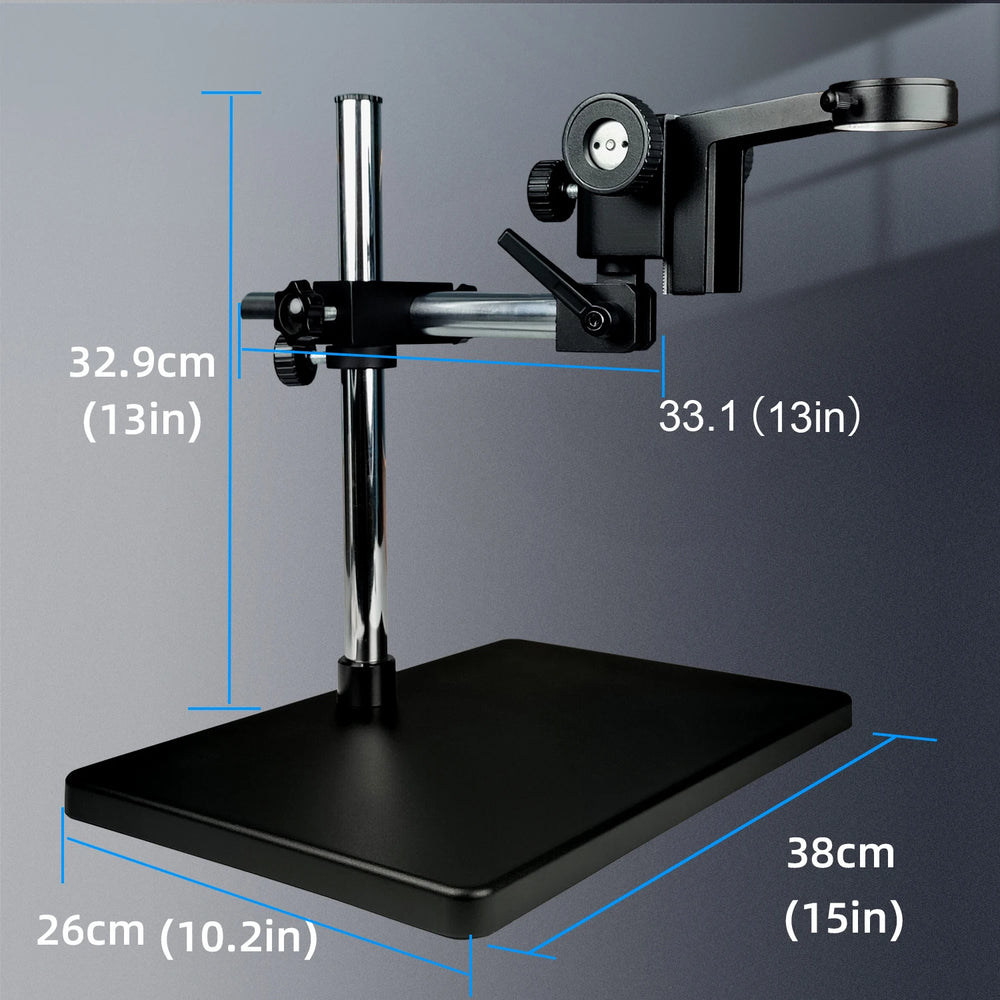

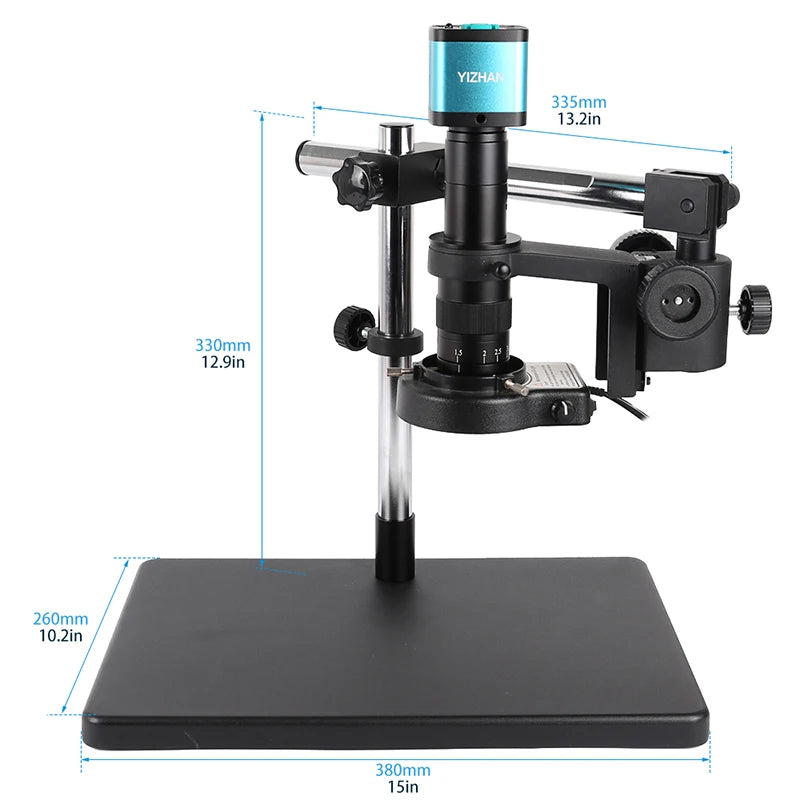

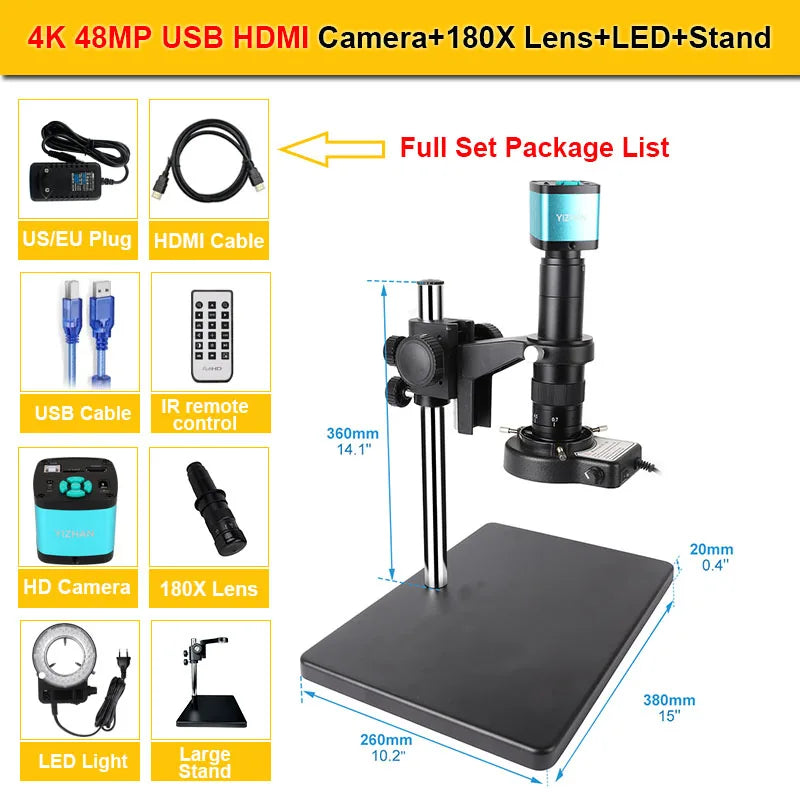

Large base specifications:
Material: metal base + metal adjustment bracket
Color: black
Base size: 380x250x30mm
Column size: 25mm*340mm
Lift adjustment range: 265-270mm
Weight: 2.3kg
Height: 340mm
Hand wheel focusing range: 65mm
Packing size: 45*34*18
Package includes:
1*metal base
1*Metal adjustment bracket
1*50mm sliding focus bracket
1*hex wrench
1*nut
1*limited position ring

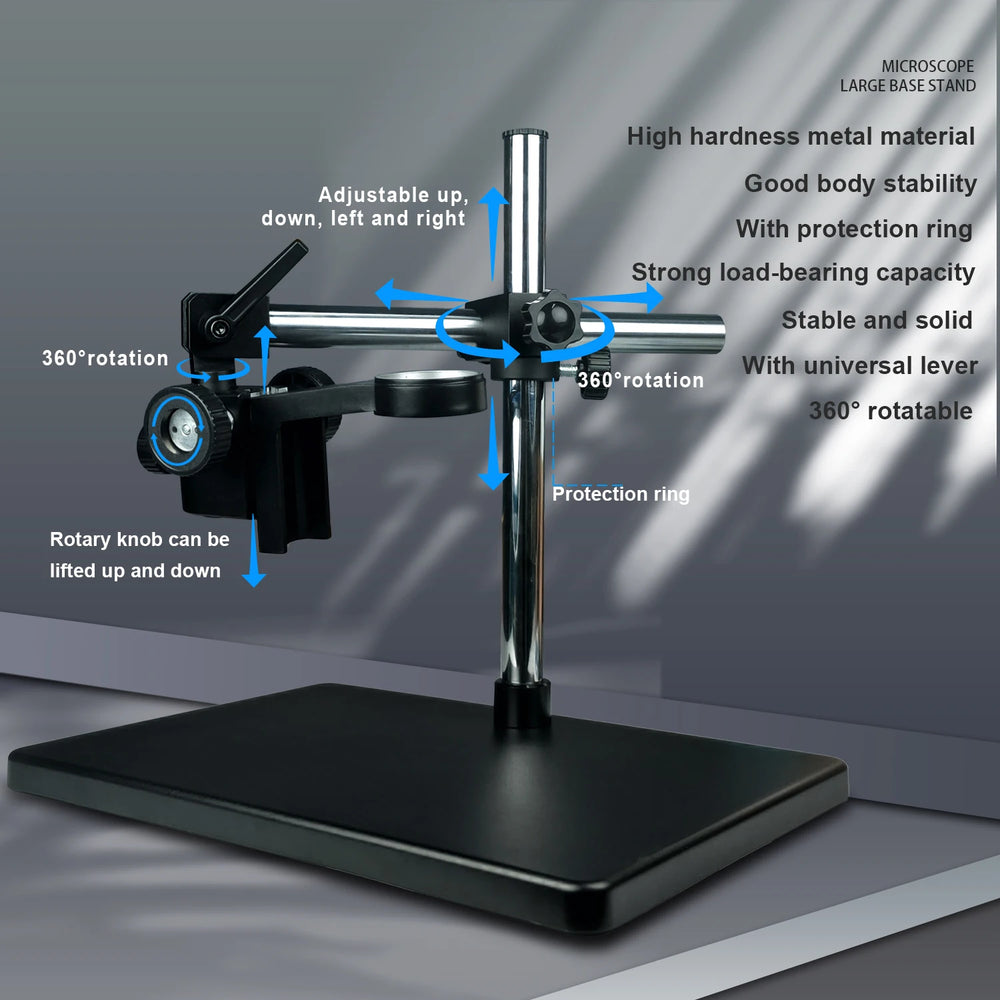

Specifications of the large base of the universal bracket:
Material: metal base + metal adjustment bracket + metal universal bracket
Color: black
Base size: 380x250x30mm
Column size: 25mm*340mm
Lift adjustment range: 265-270mm
Universal bracket length: 336mm
Interface length: 122mm
Hole size: 25mm
Weight: 3.2kg
Height: 340mm
Hand wheel focusing range: 65mm
Packing size: 45*34*18
Package includes:
1*metal base
1*Metal adjustment bracket
1*50mm sliding focus bracket
1*hex wrench
1*nut
1*limited position ring
1*Universal bracket
