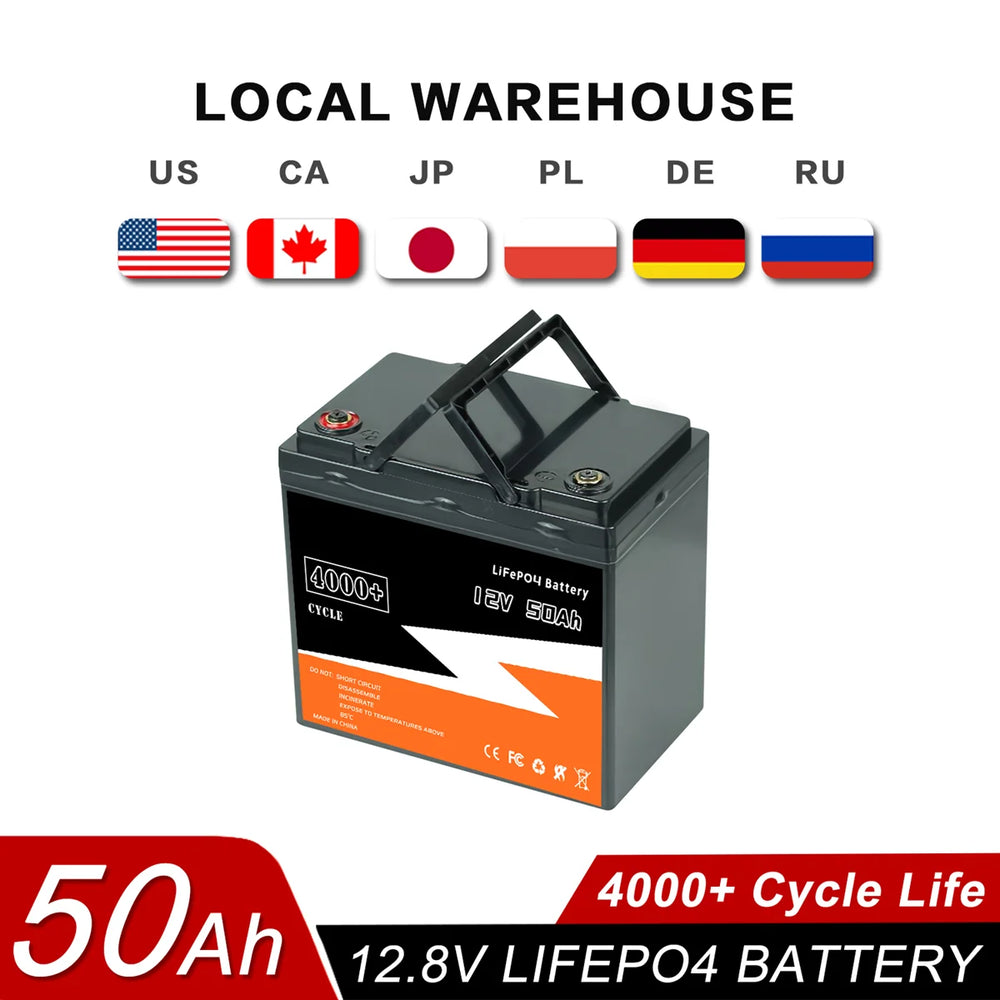

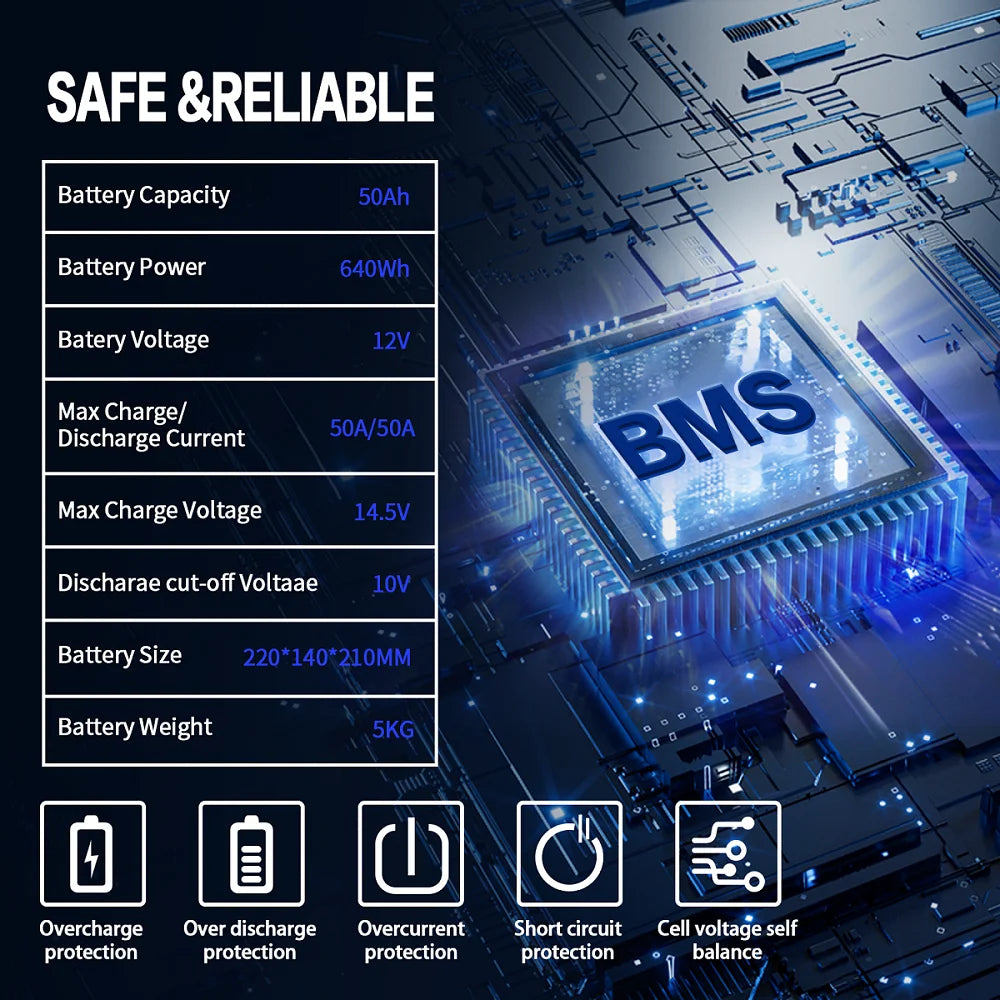

12V 50Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 50Ah 0.2C
Energy: 640Wh
Built-in BMS:4S 100A
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Discharge Current: 8A
Max. Charge Current: 20A
Max. Continuous Current: 50A
Max. Pulse Current: 80A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 220*140*210 mm
Weight: Approx. 5kg
Terminal Type: M6 Screw

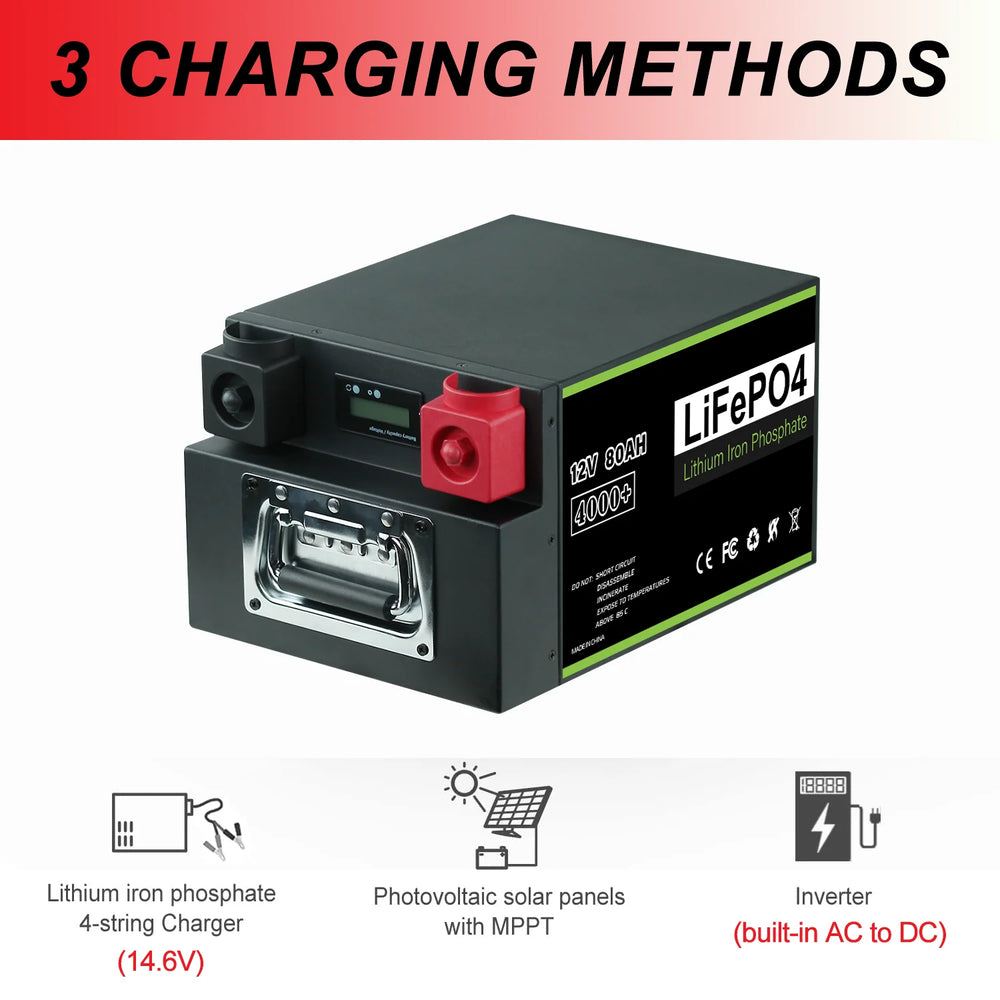

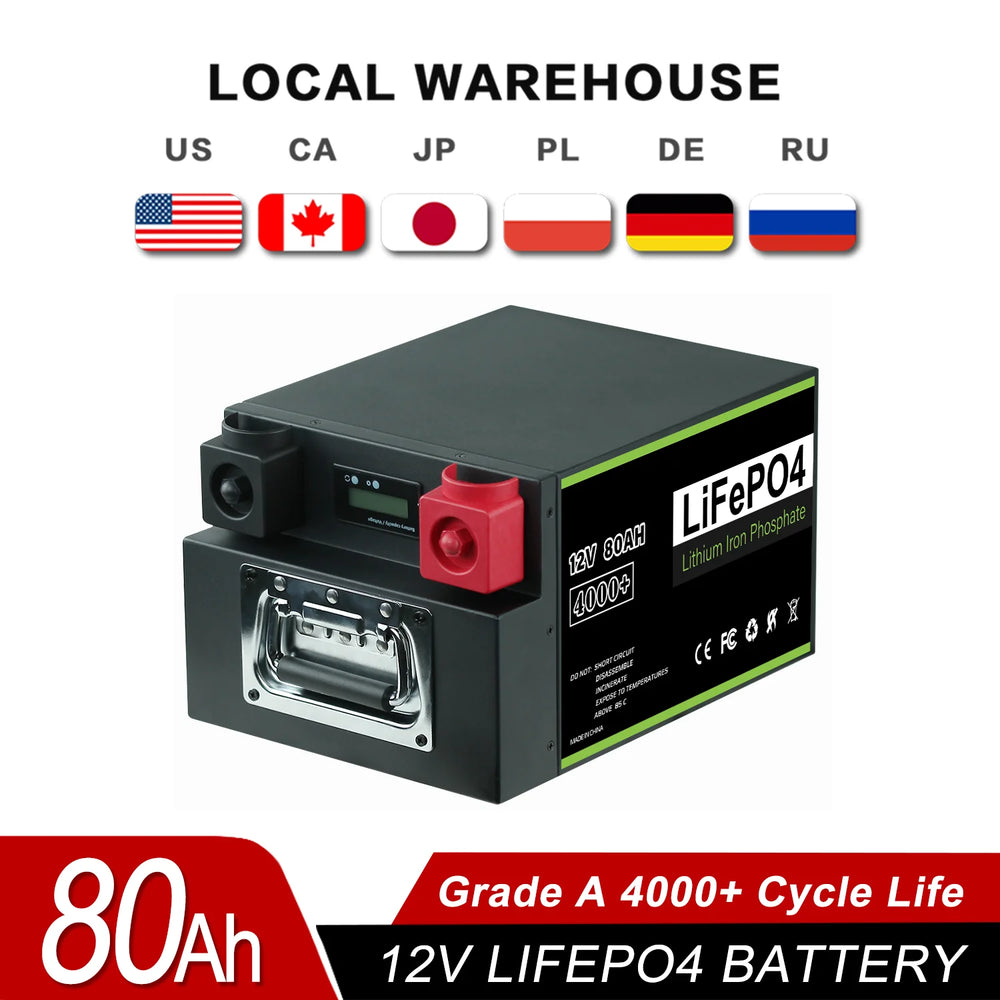

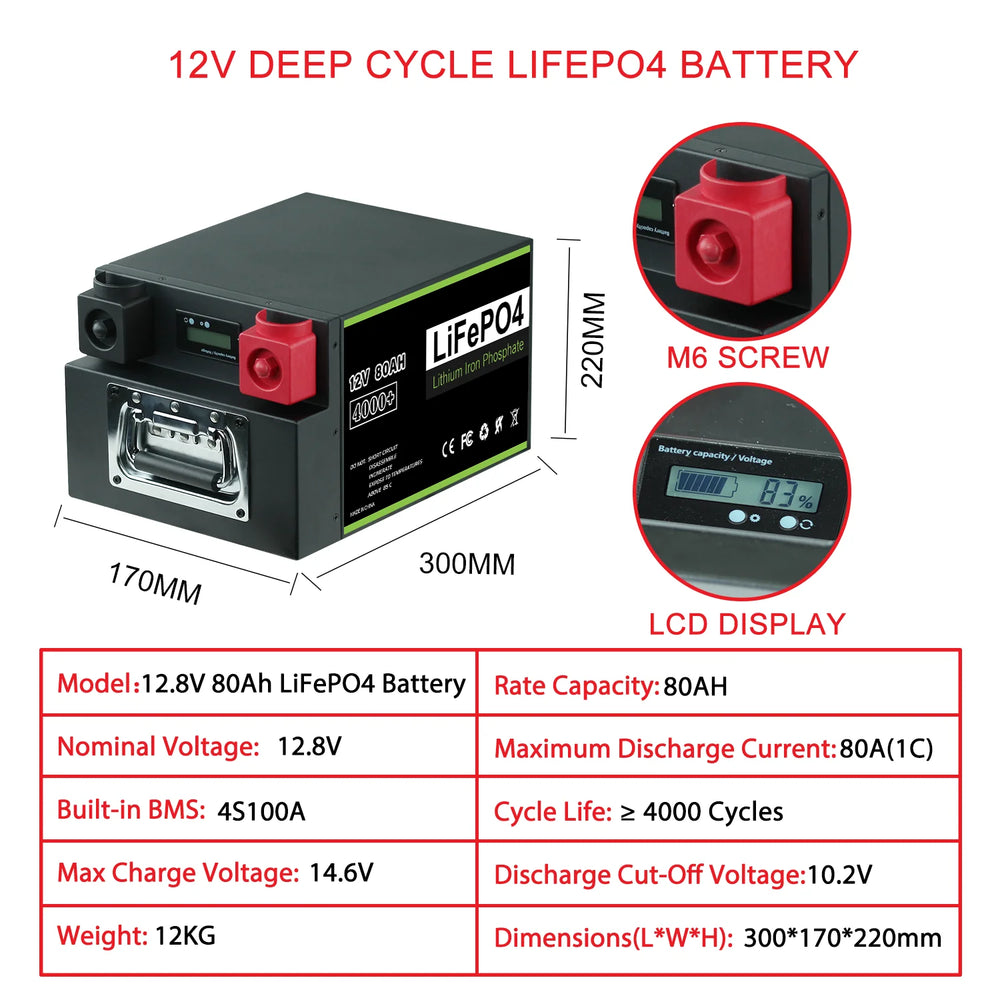

12V 80Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 80Ah 0.2C
Energy: 1024Wh
Built-in BMS:4S 100A
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Suggest Charge Current: 20A
Max. Charge Current: 50A
Max. Continuous Discharge Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 300*170*220 mm
Weight: Approx. 12kg
Terminal Type: M6

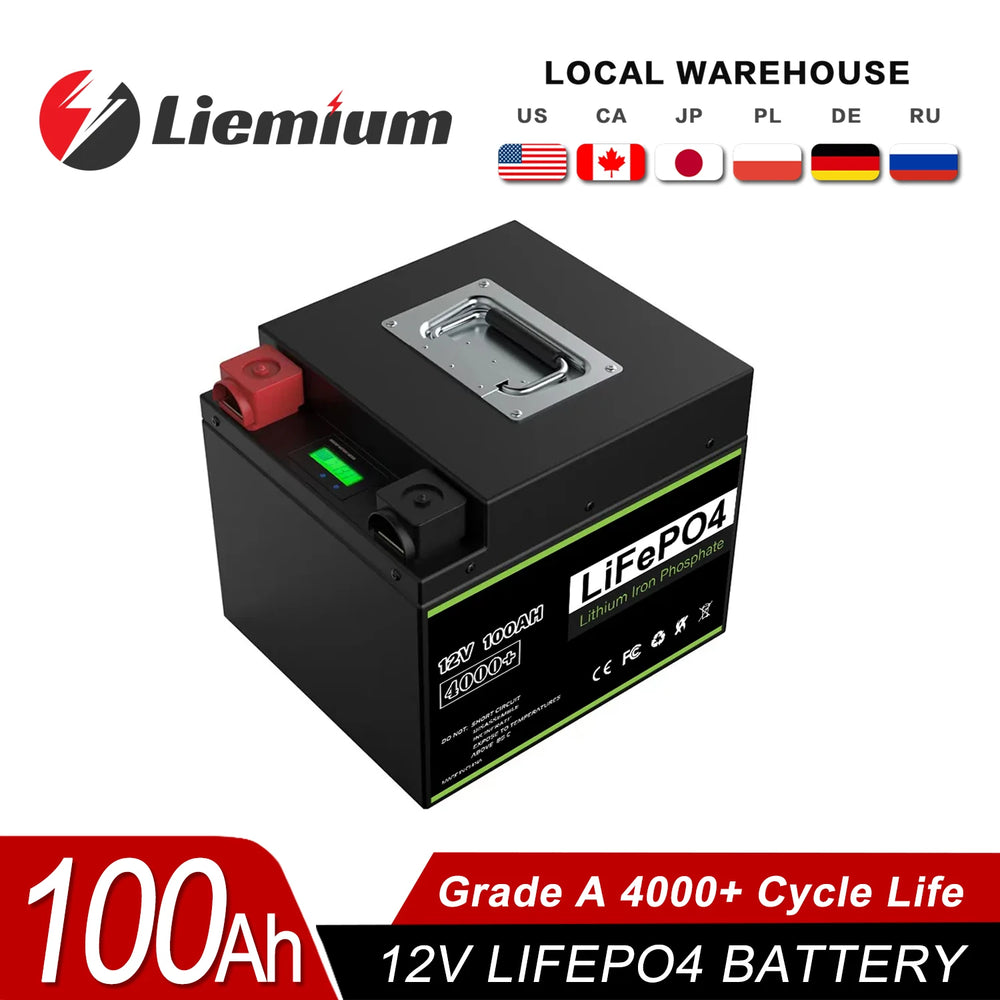

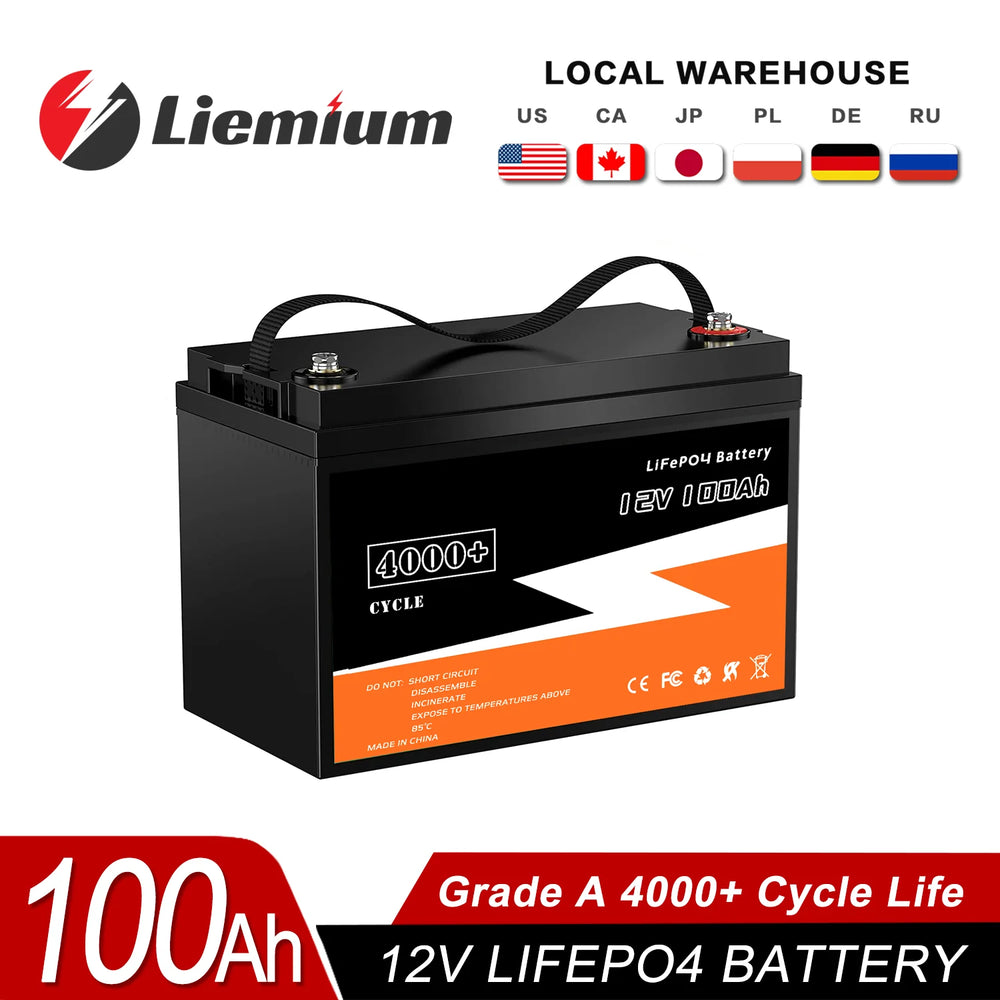

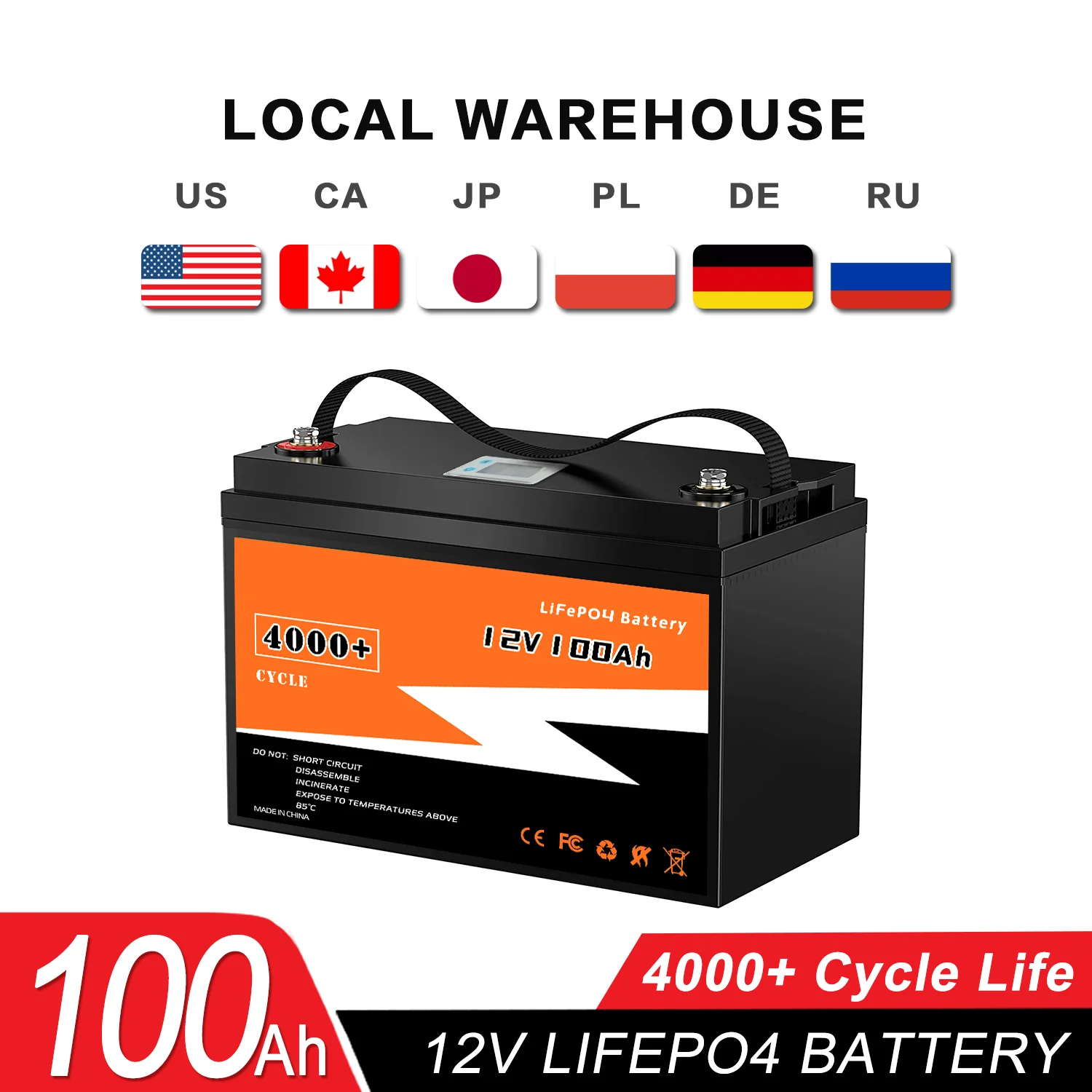

12V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah 0.2C
Built-in BMS:4S100A
Energy: 1280Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Charge Voltage: 14.6±0.2V
Suggest Charger Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 330*172*215mm
Weight: Approx 12kg
Terminal Type: M8

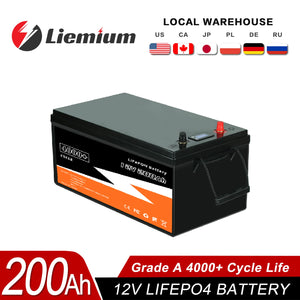

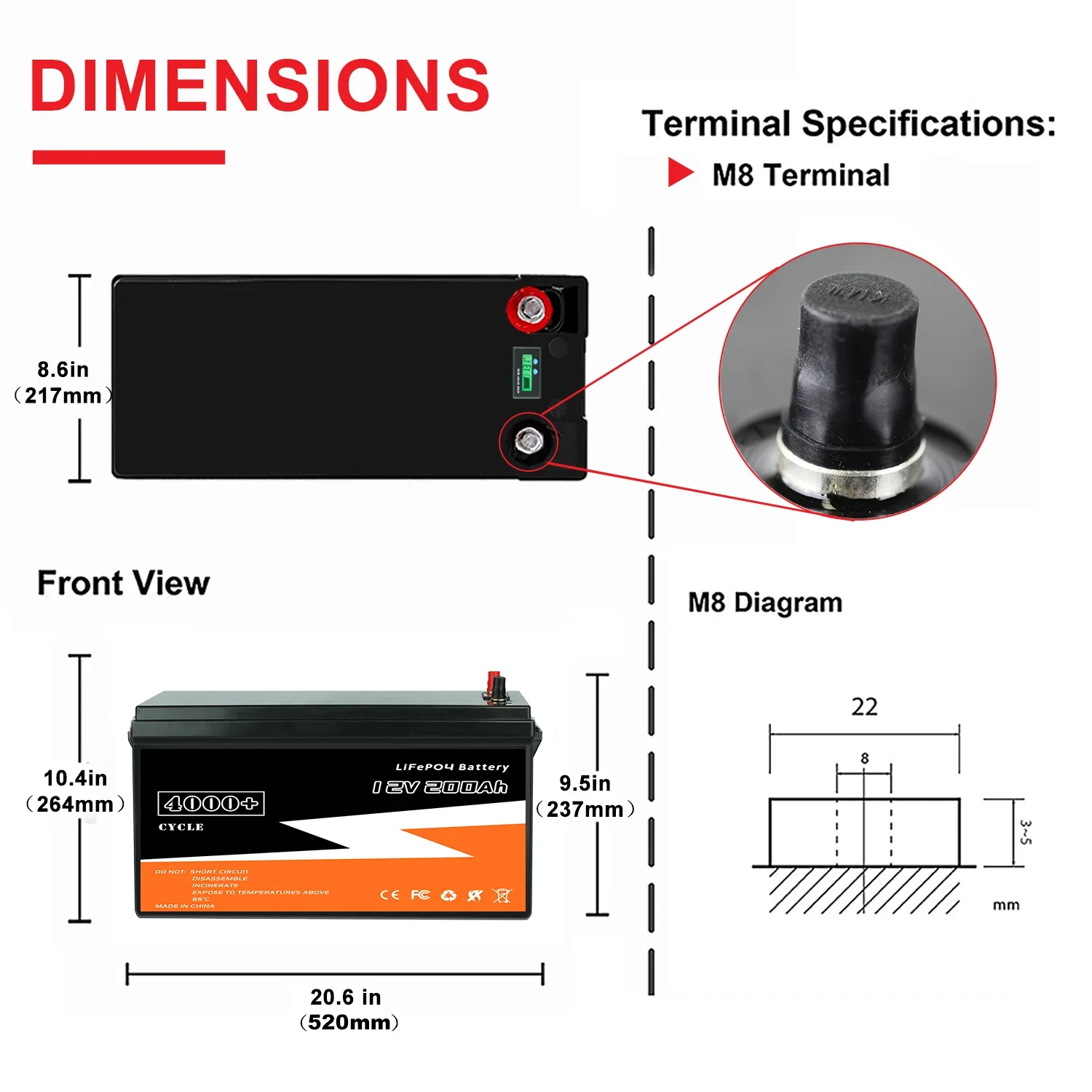

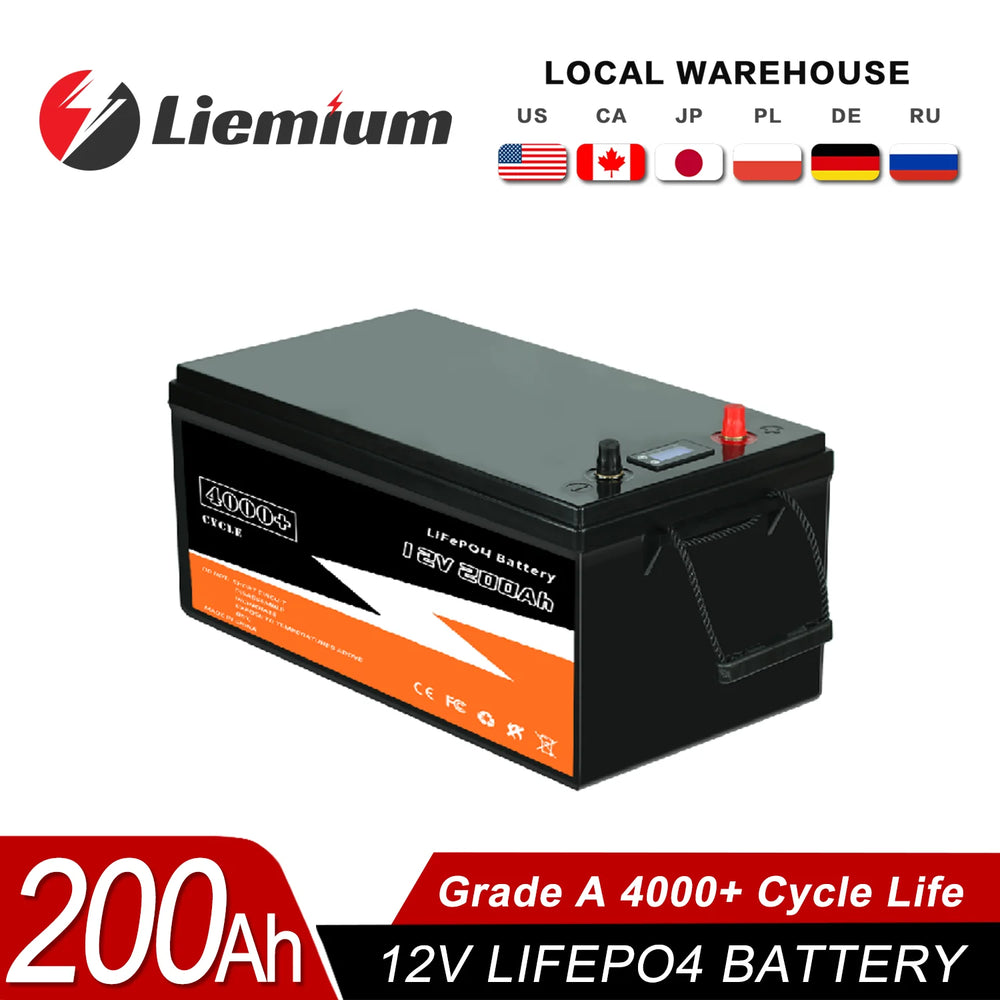

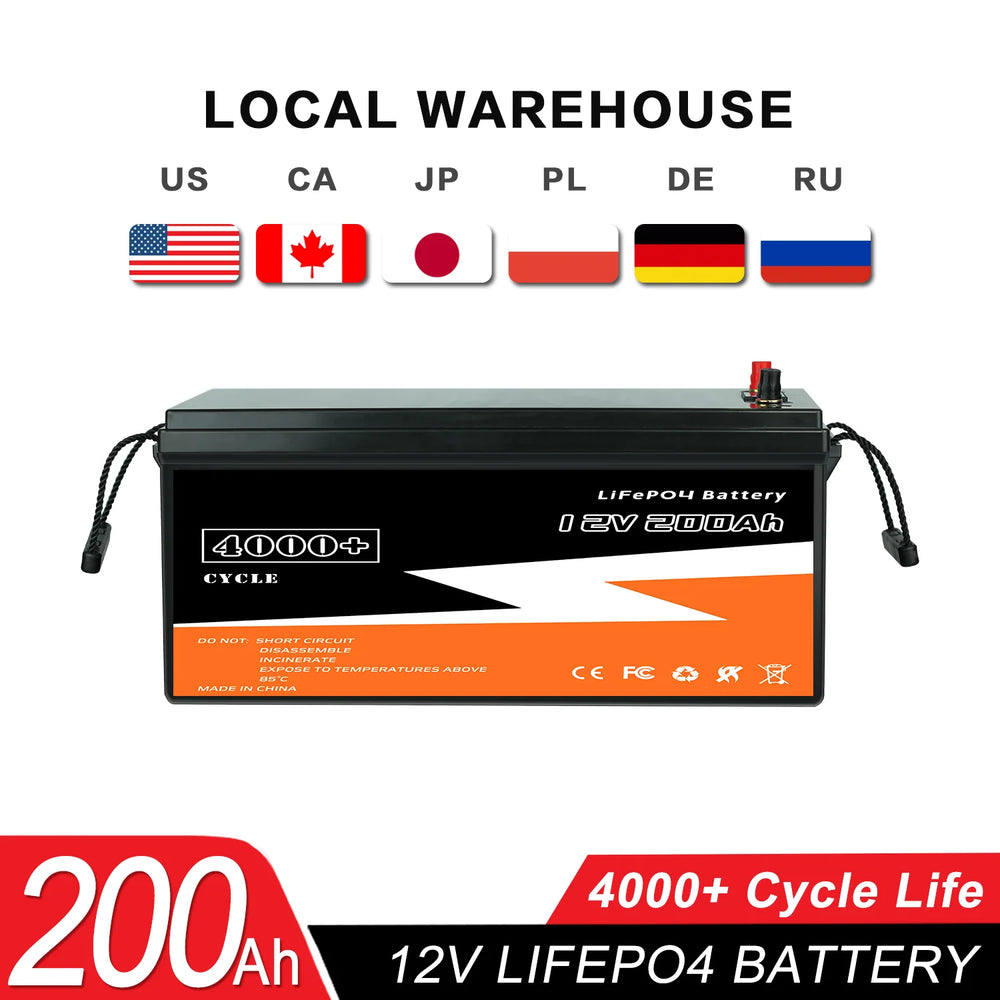

12V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Built-in BMS:4S150A
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Charge Voltage: 14±0.2V
Suggest Charger Current: 40A
Max. Charge Current: 75A
Max. Continuous Current: 150A
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 520*237*217mm
Weight: Approx 18kg
Terminal Type: M8

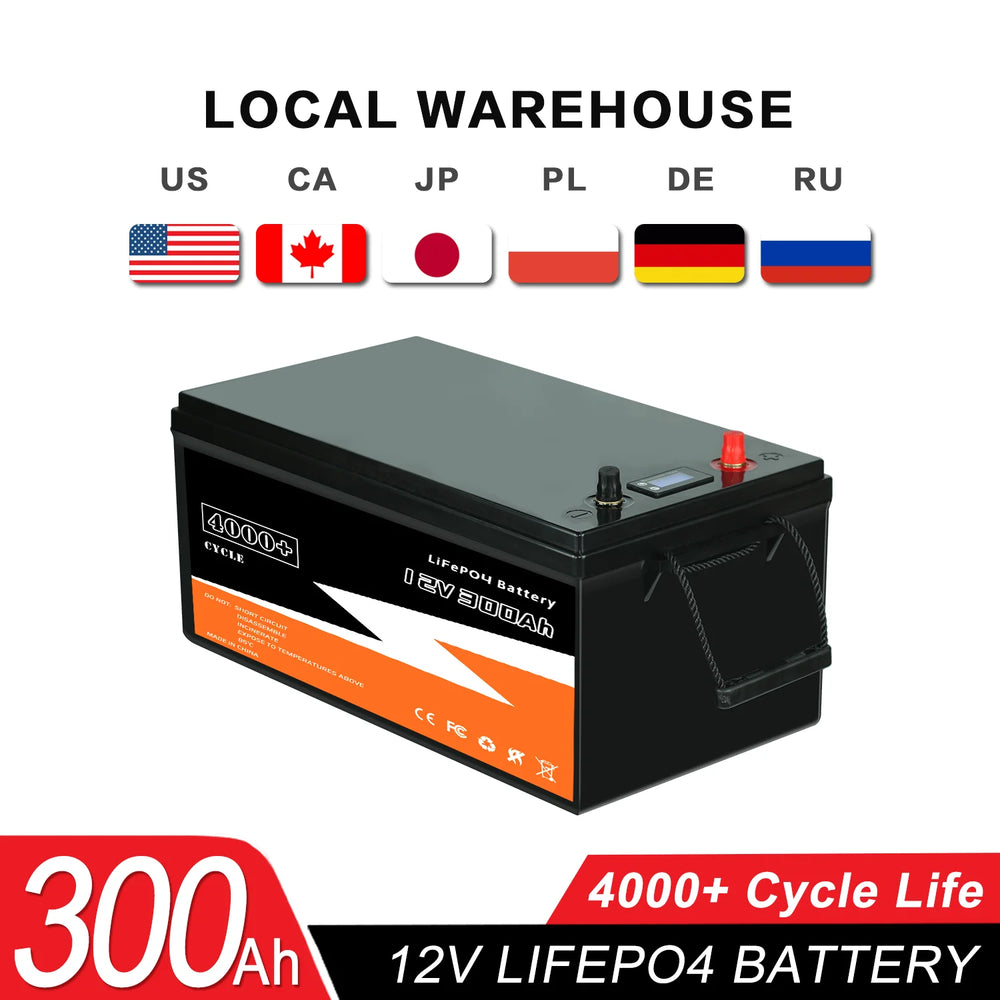

12V 300Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah 0.2C
Built-in BMS:4S150A
Energy: 3840Wh
Cycle Life: ＞4000 cycles at 0.2C;
Charge Voltage: 14±0.2V
Suggset Charge Current: 60A
Max. Charge Current: 70A
Max. Continuous Current: 150A
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 530*237*217 mm
Weight: Approx 30kg
Terminal Type: M8

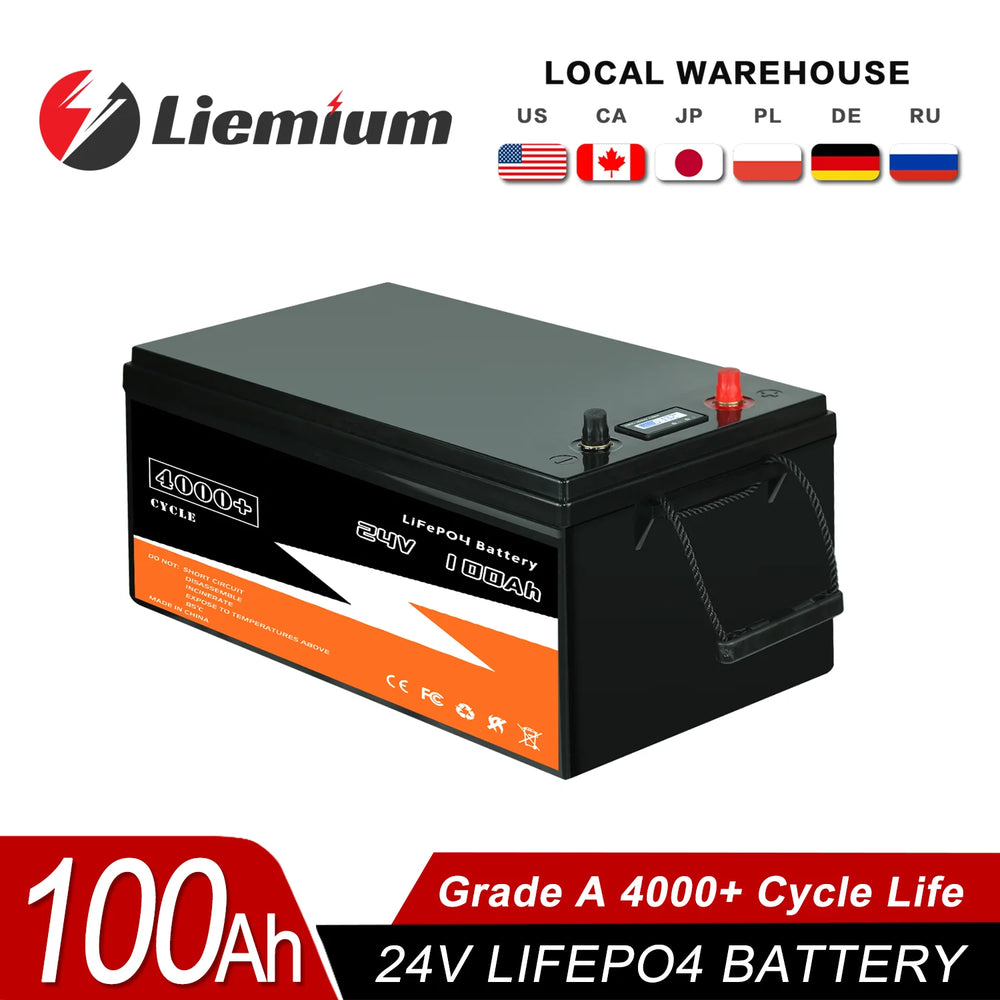

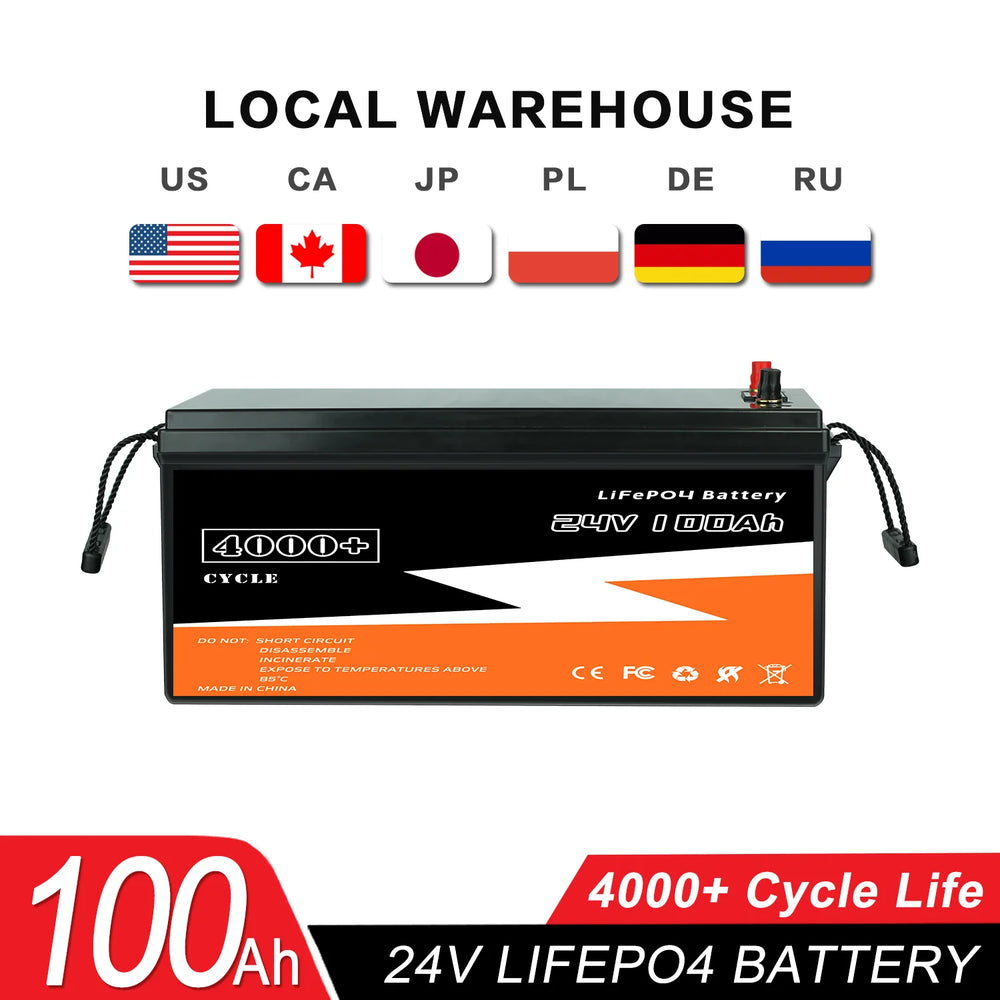

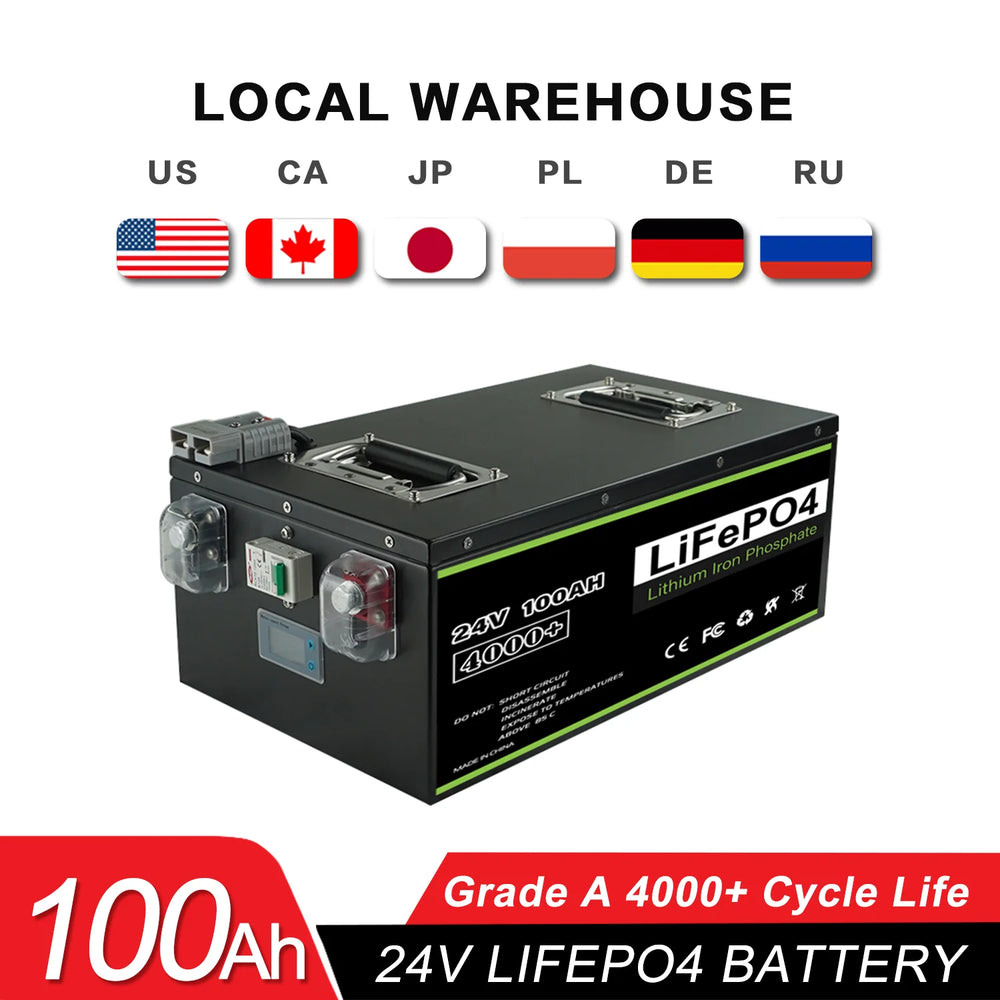

24V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah 0.2C
Built-in BMS:8S100A
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C;
Charge Voltage: 29±0.2V
Suggest Charge Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 20.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 520*277*217mm
Weight: Approx 22kg
Terminal Type: M8

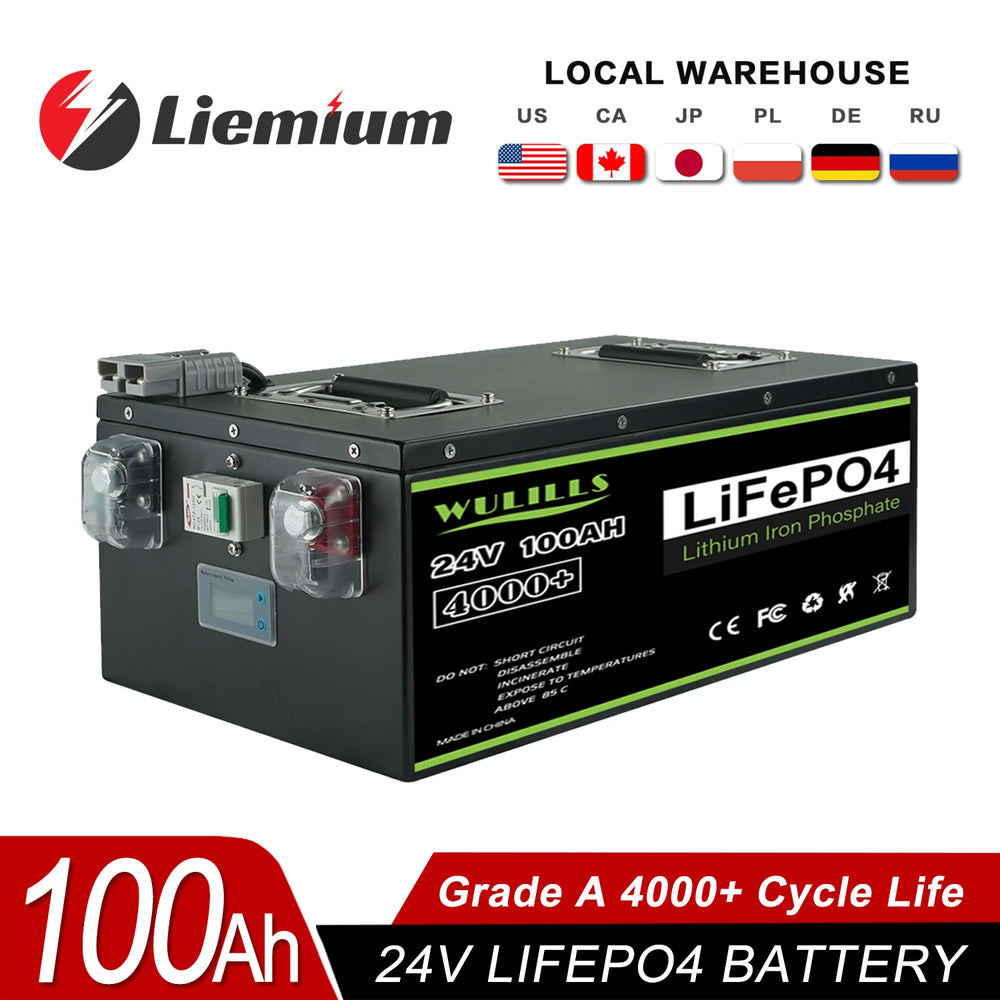

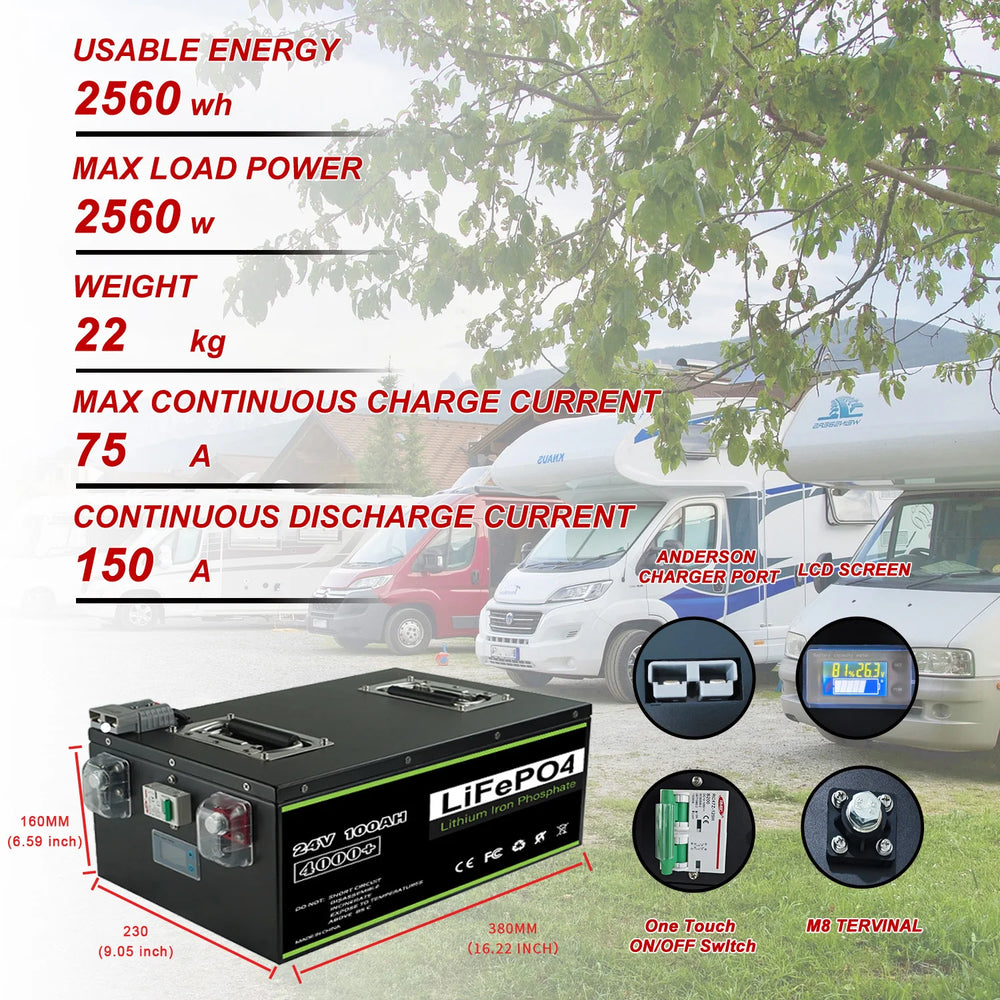

24V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah 0.2C
Energy: 2560Wh
Built-in BMS:4S 100A
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 29.2±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 20.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 380*230*160mm
Weight: Approx. 22kg
Terminal Type: M8

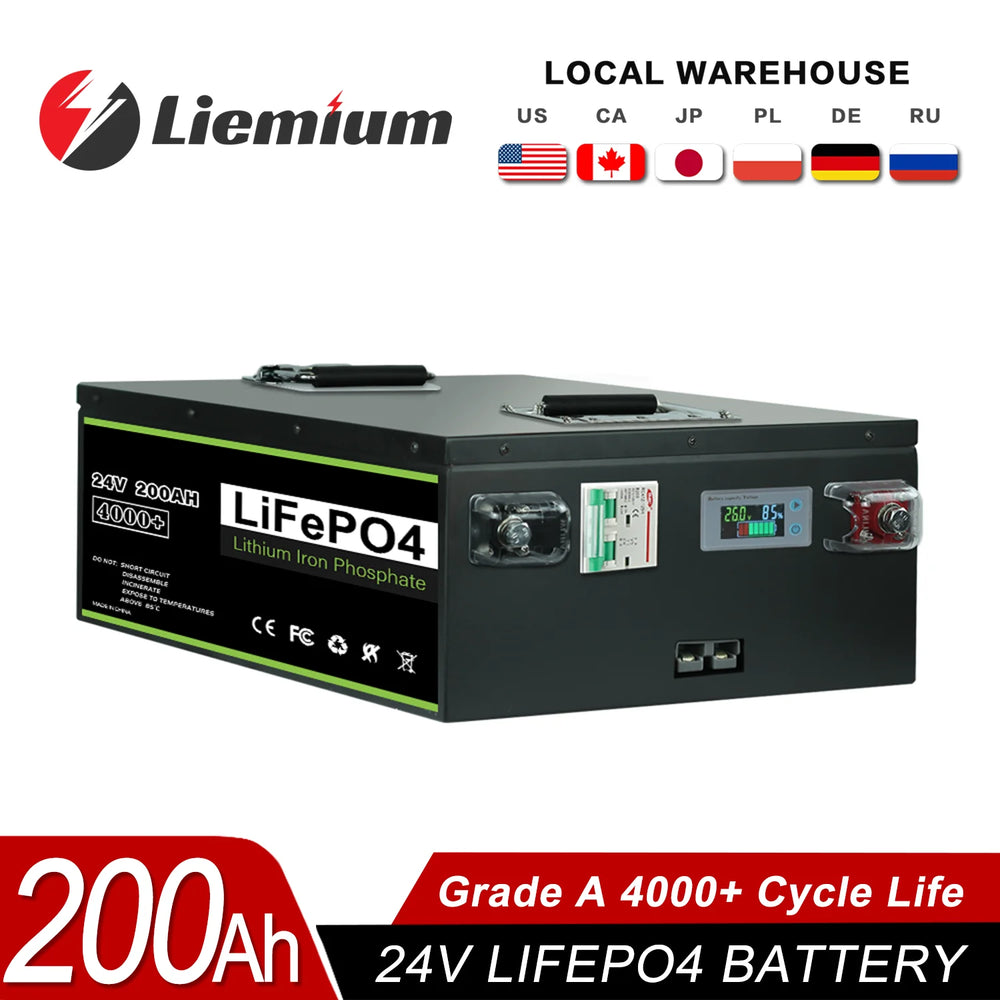

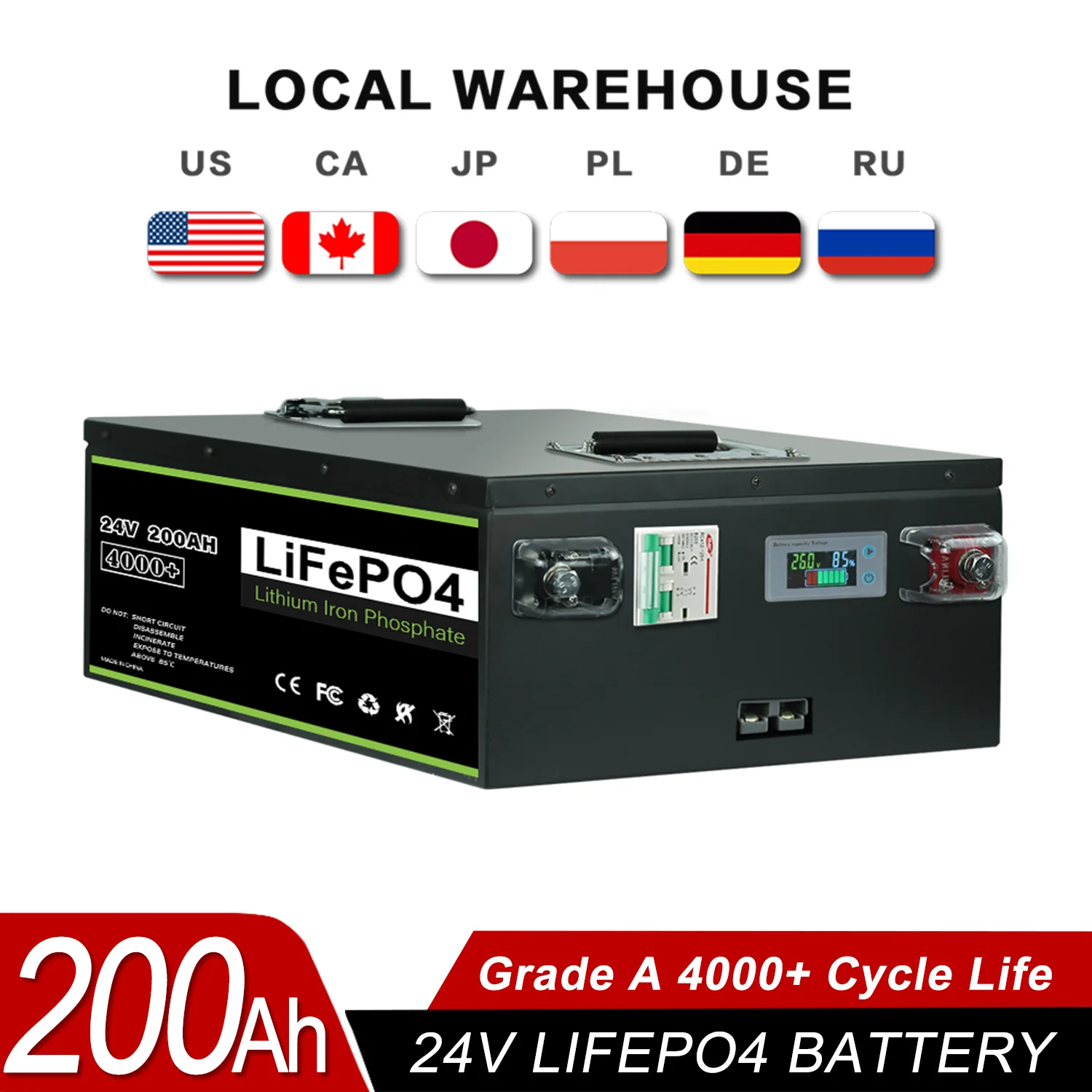

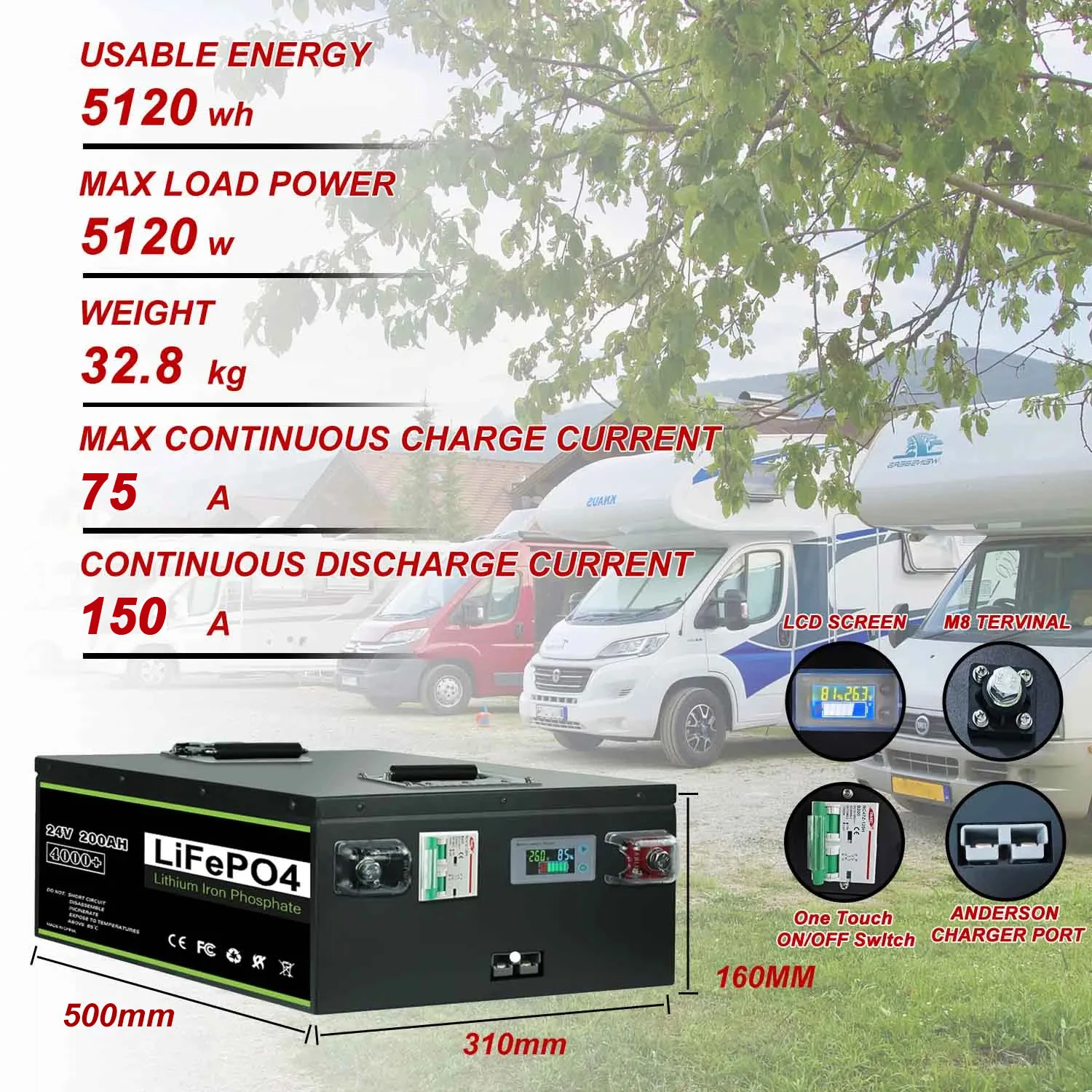

24V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 25.6V
Rated Capacity (0.2C): 200Ah
Energy: 5120Wh
Built-in BMS:8S 150A
Cycle life: 4000+ cycles at 80% discharge depth
Charge Voltage: 29.2±0.2V
Depth of Discharge (DoD): 100%
Suggest Charge Current: : 50A
Max continuous charge current: 75A
Max continuous discharge current: 150A
Peak discharge current: 600A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 500*320*180mm
Weight: Approx. 34kg
Terminal Type: M8

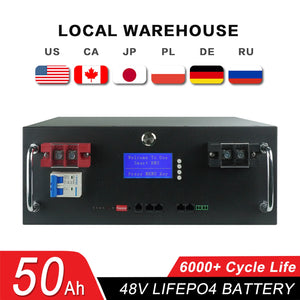

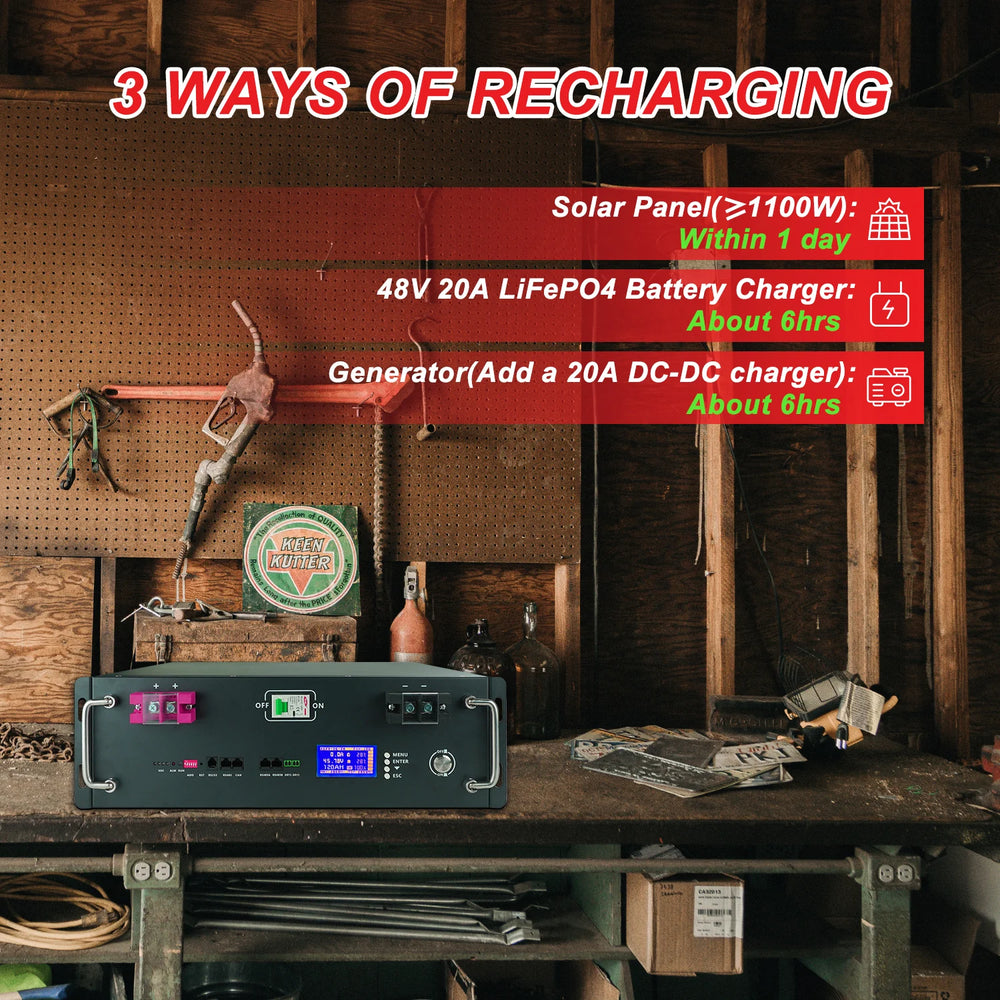

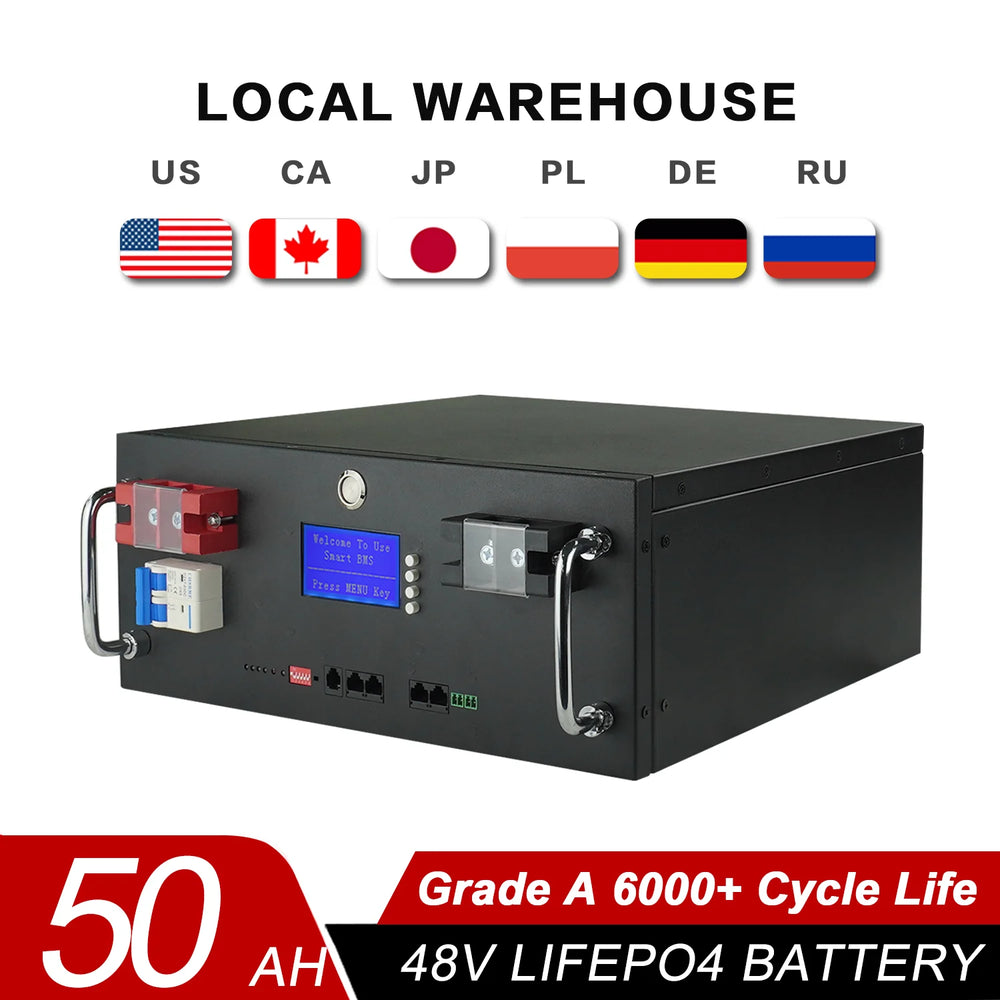

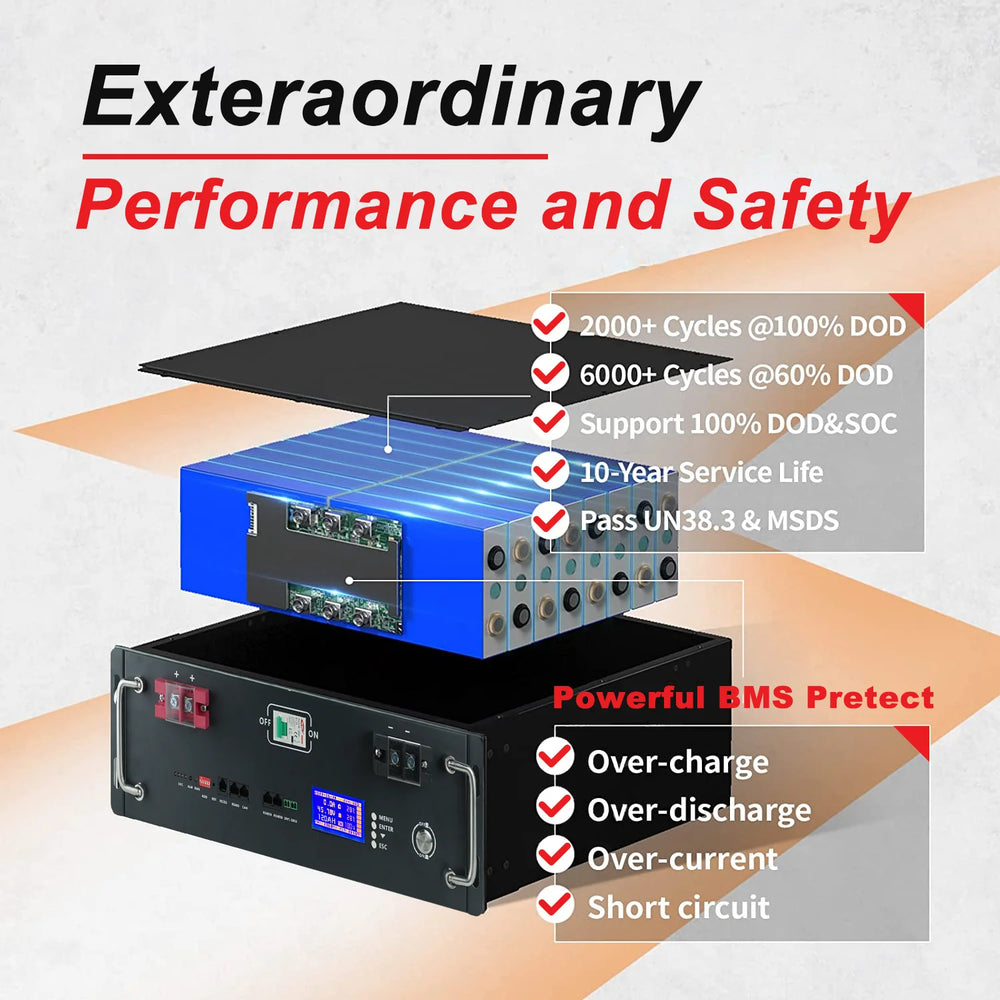

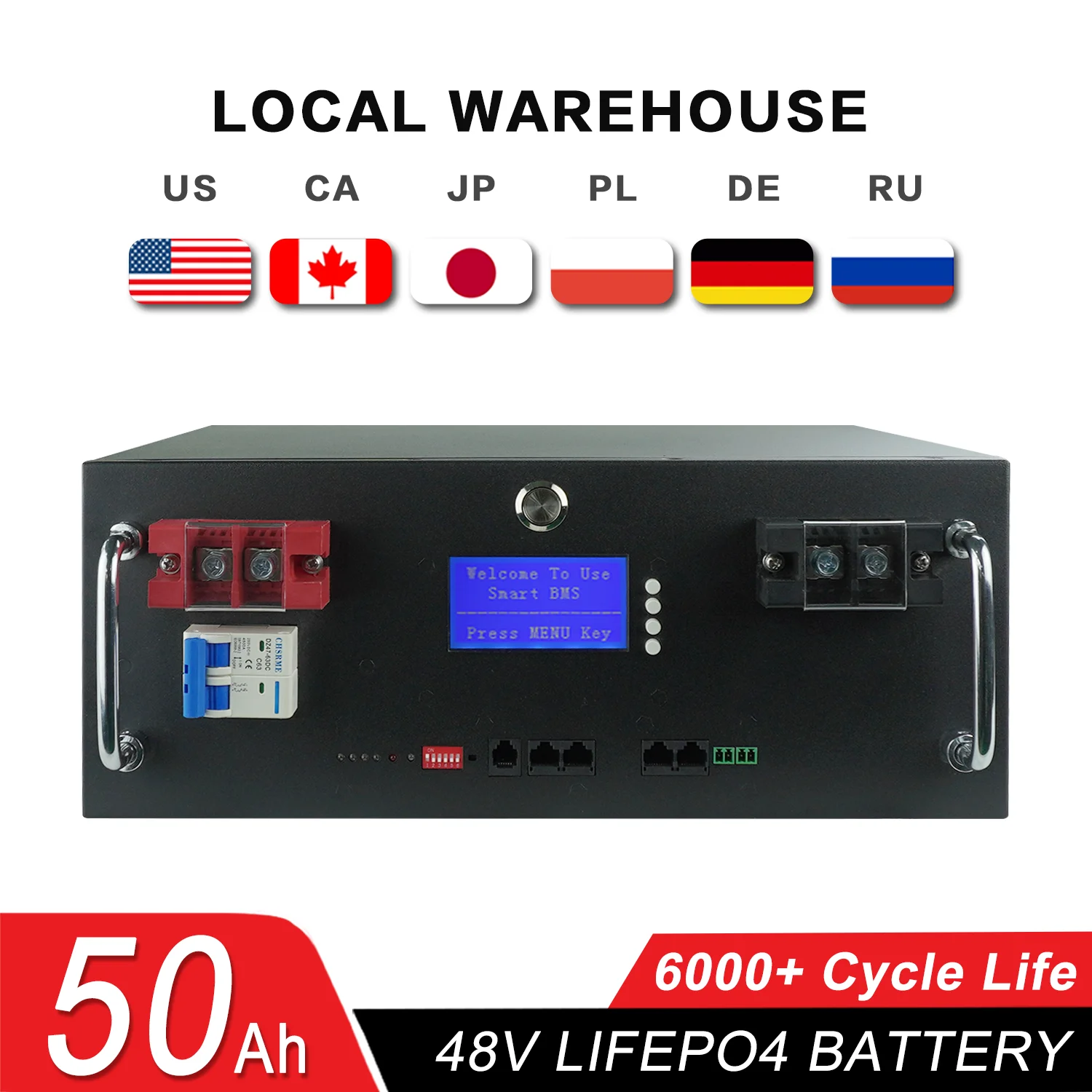

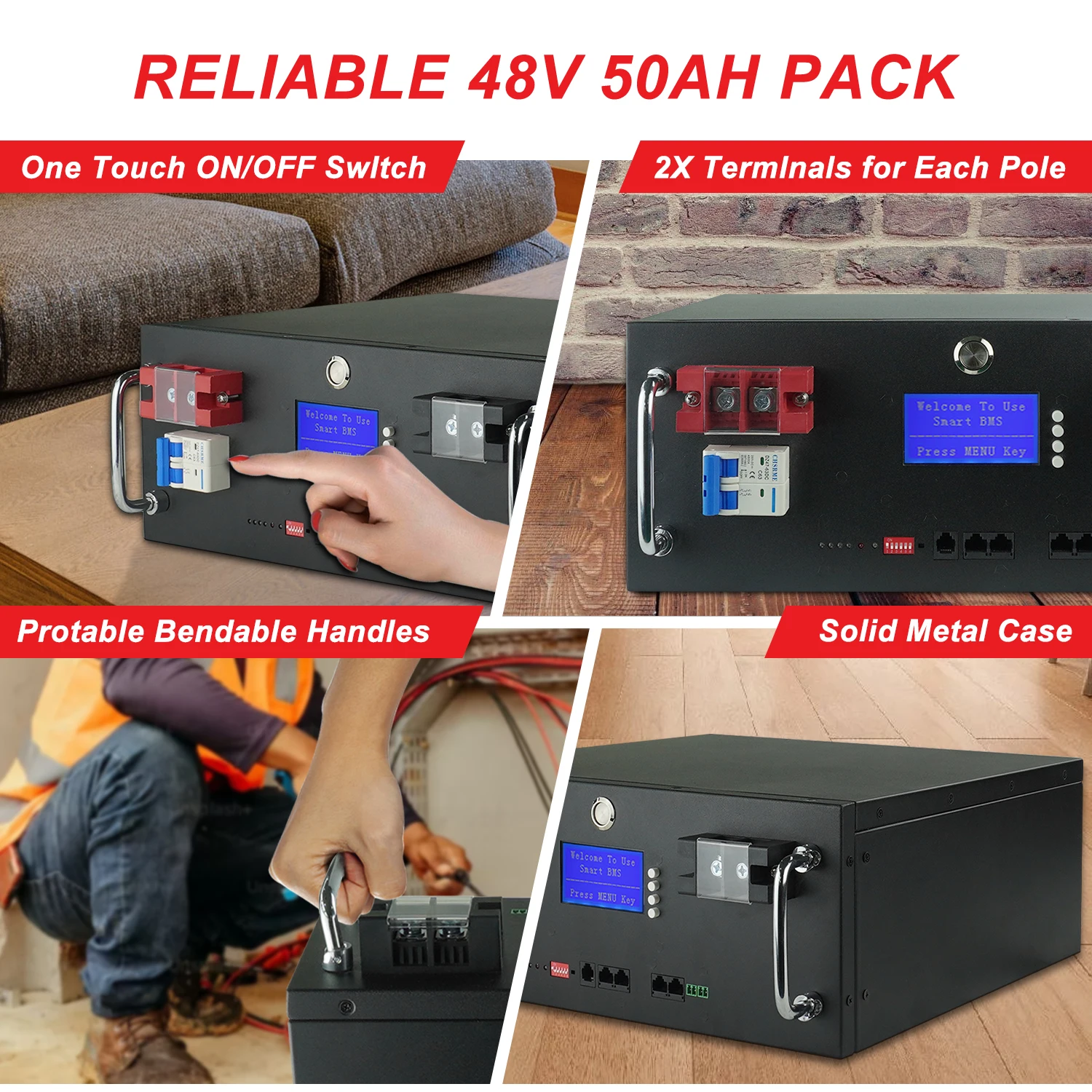

48V 50Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 50Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 2560Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 50A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 390*350*150mm /
Weight: Approx. 30kg
Terminal Type: Dual M6

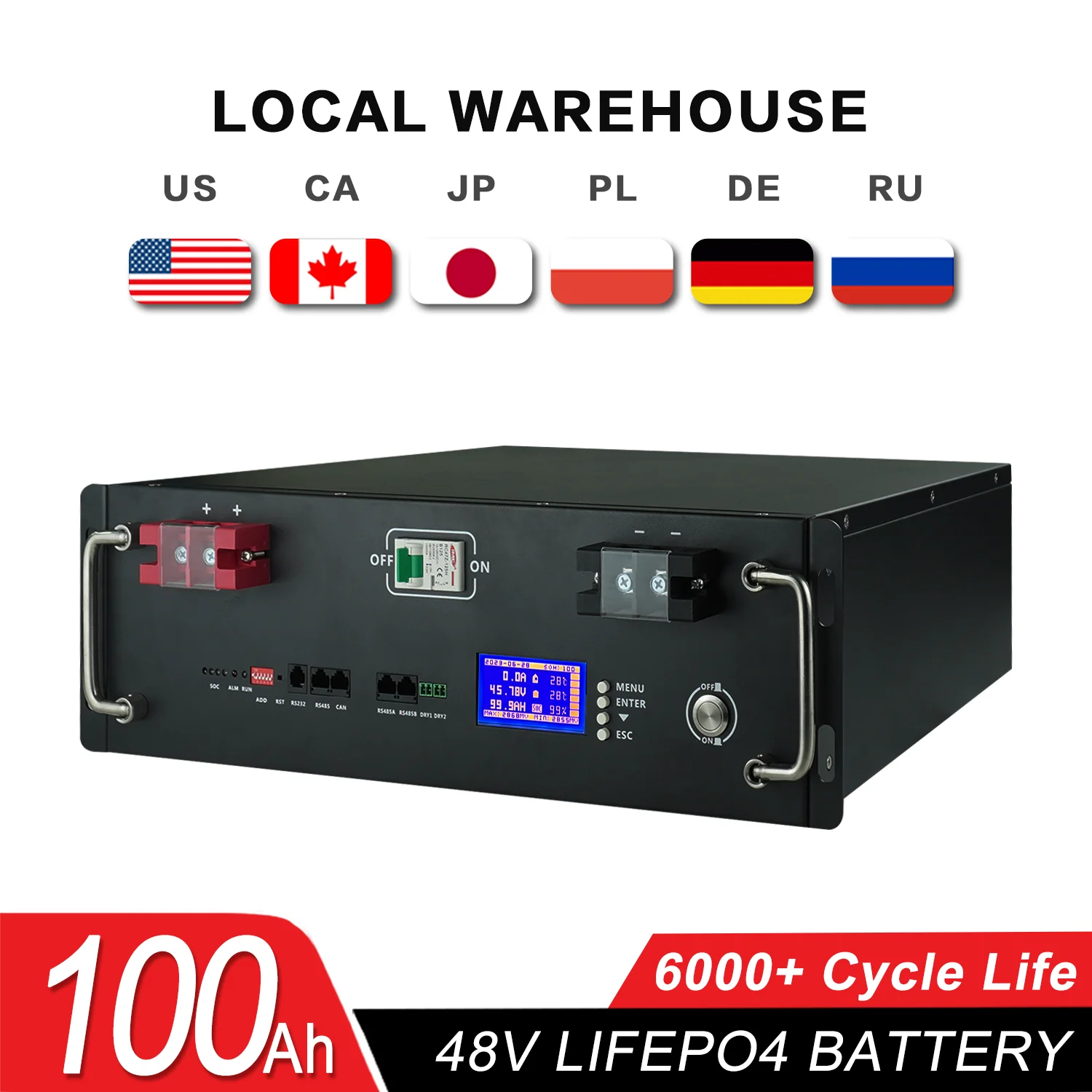

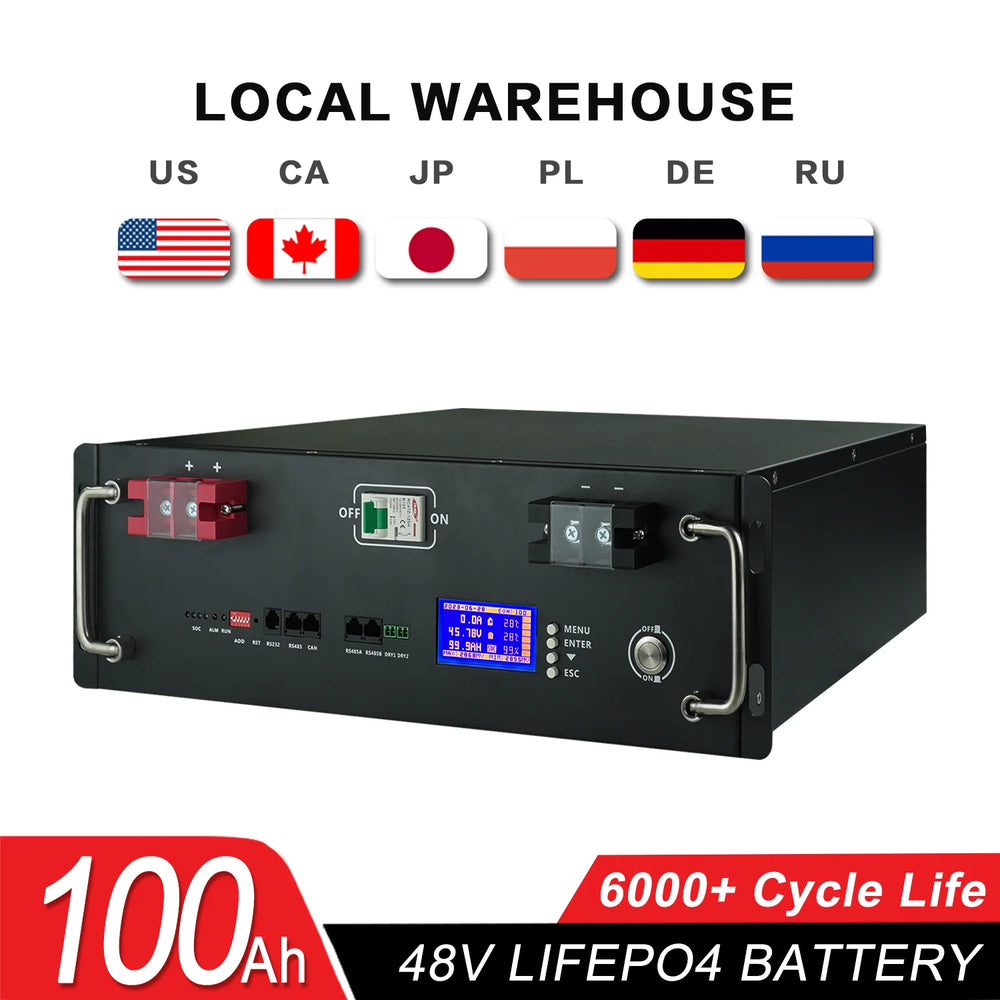

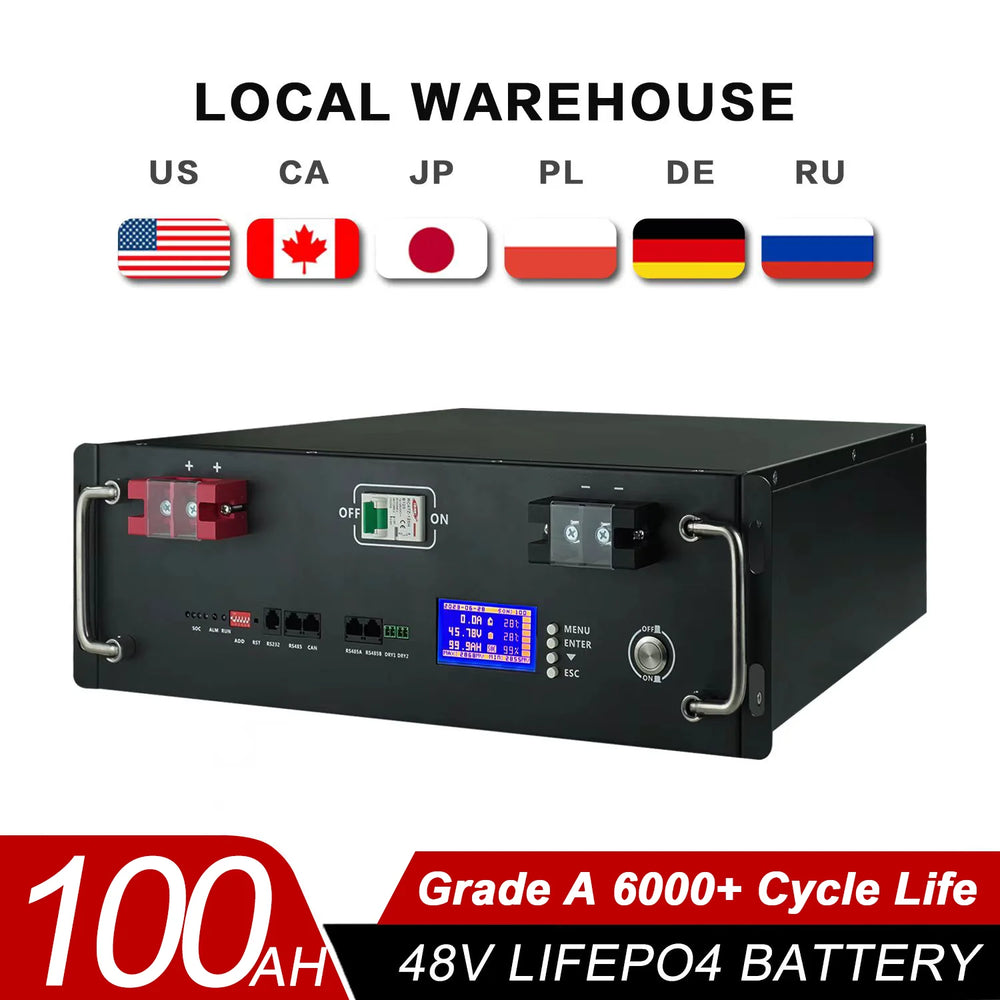

48V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Suggest Charger Current: 20A(0.2C)
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm
Weight: Approx 42kg
Terminal Type: Dual M6

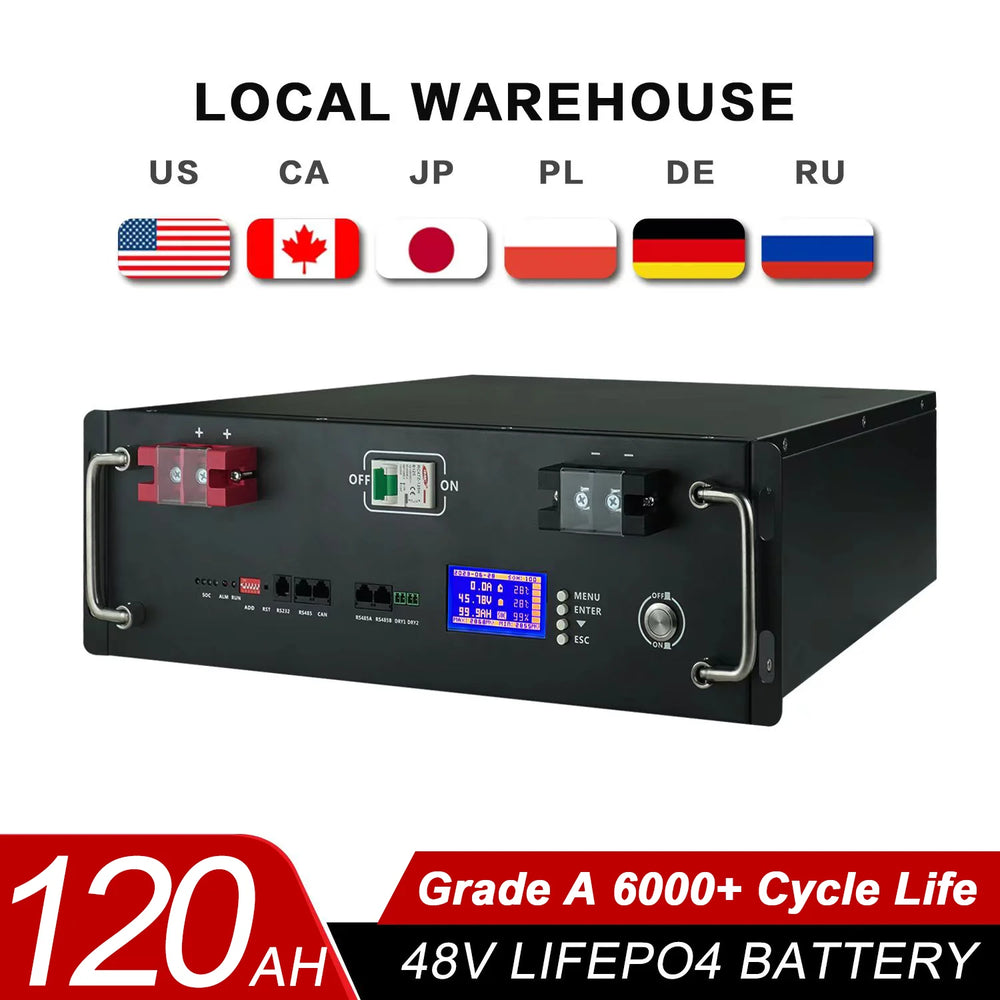

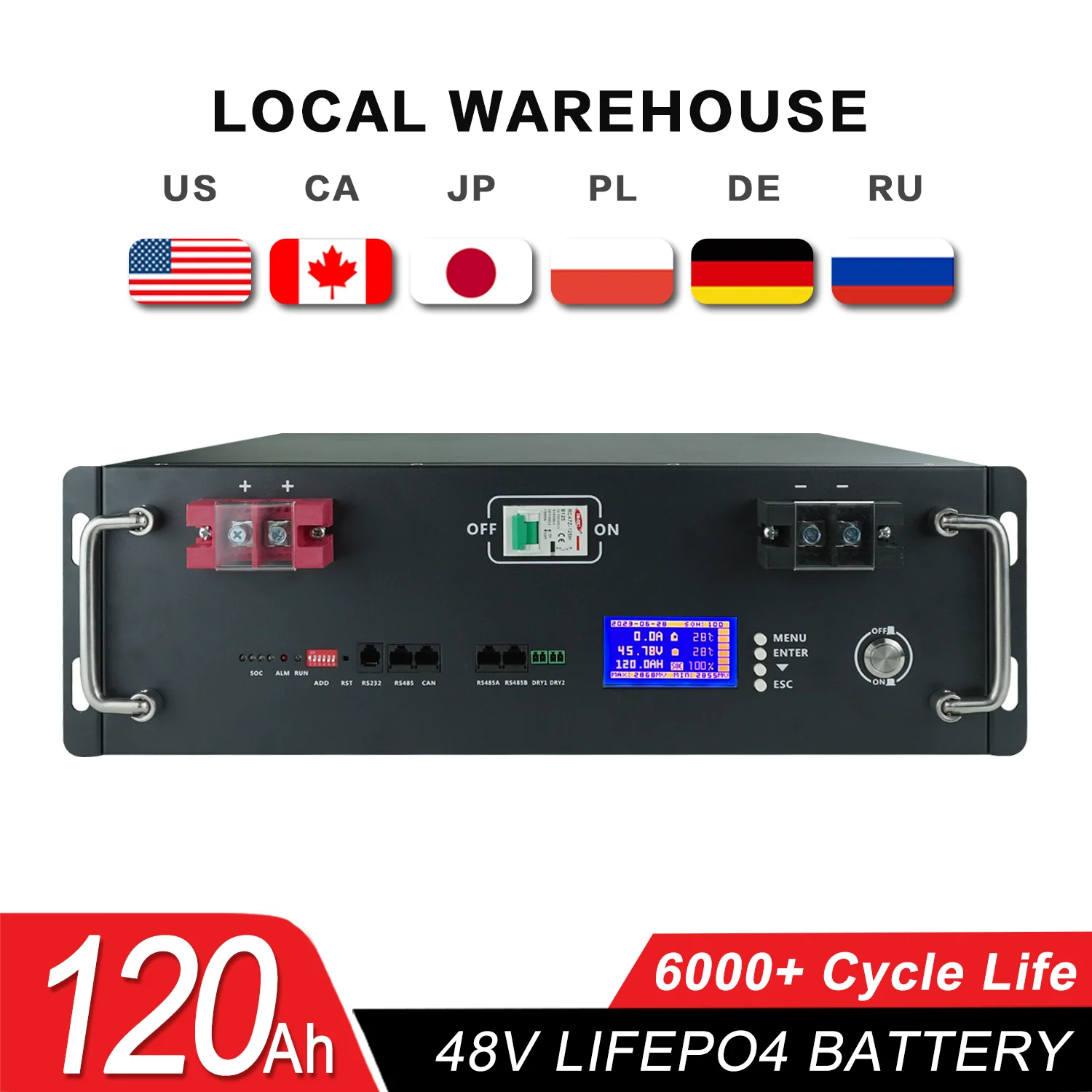

48V 120Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 120Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 6144Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Suggest Charger Current: 20A(0.2C)
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 44kg
Terminal Type: Dual M6

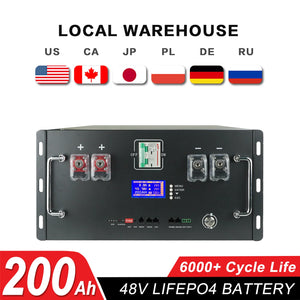

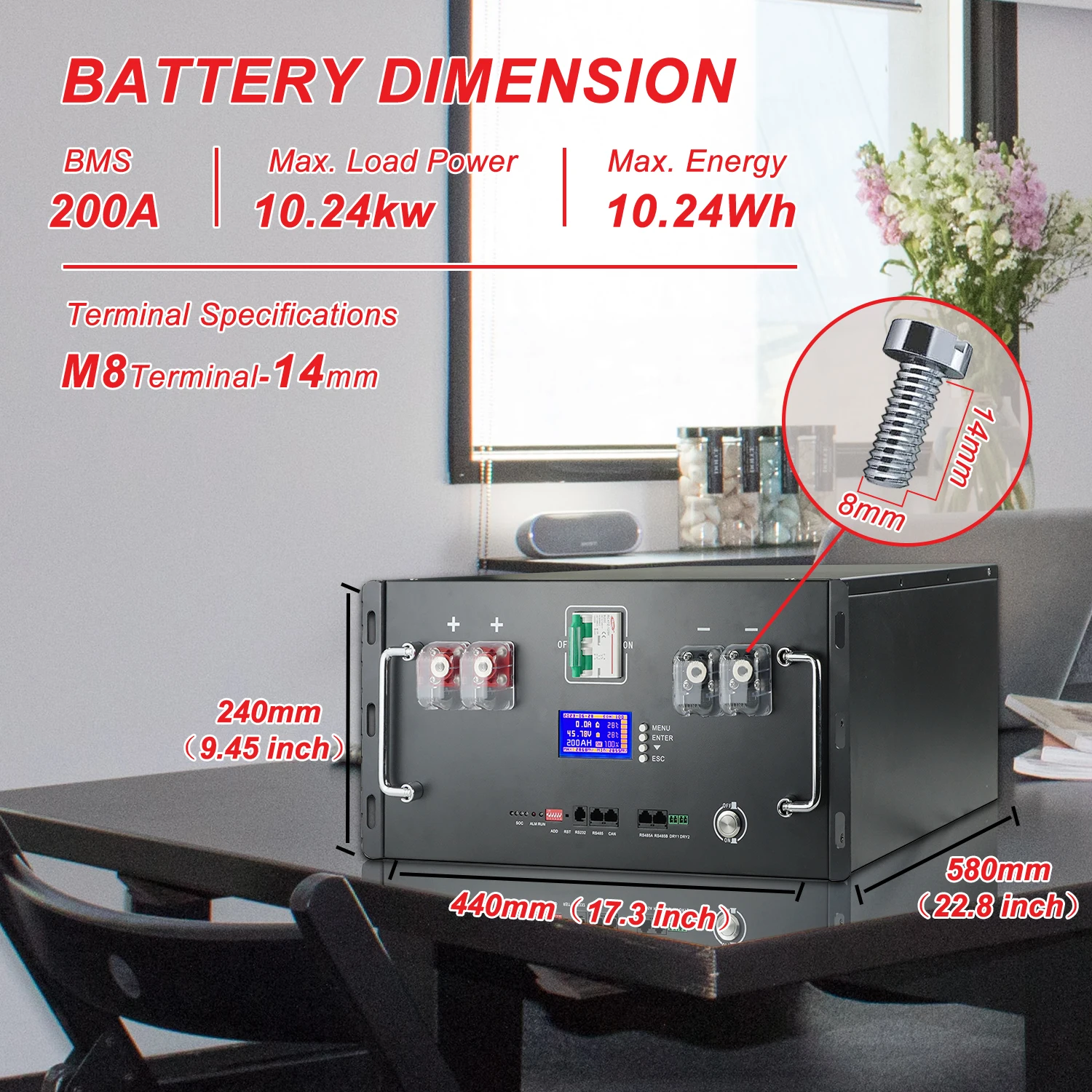

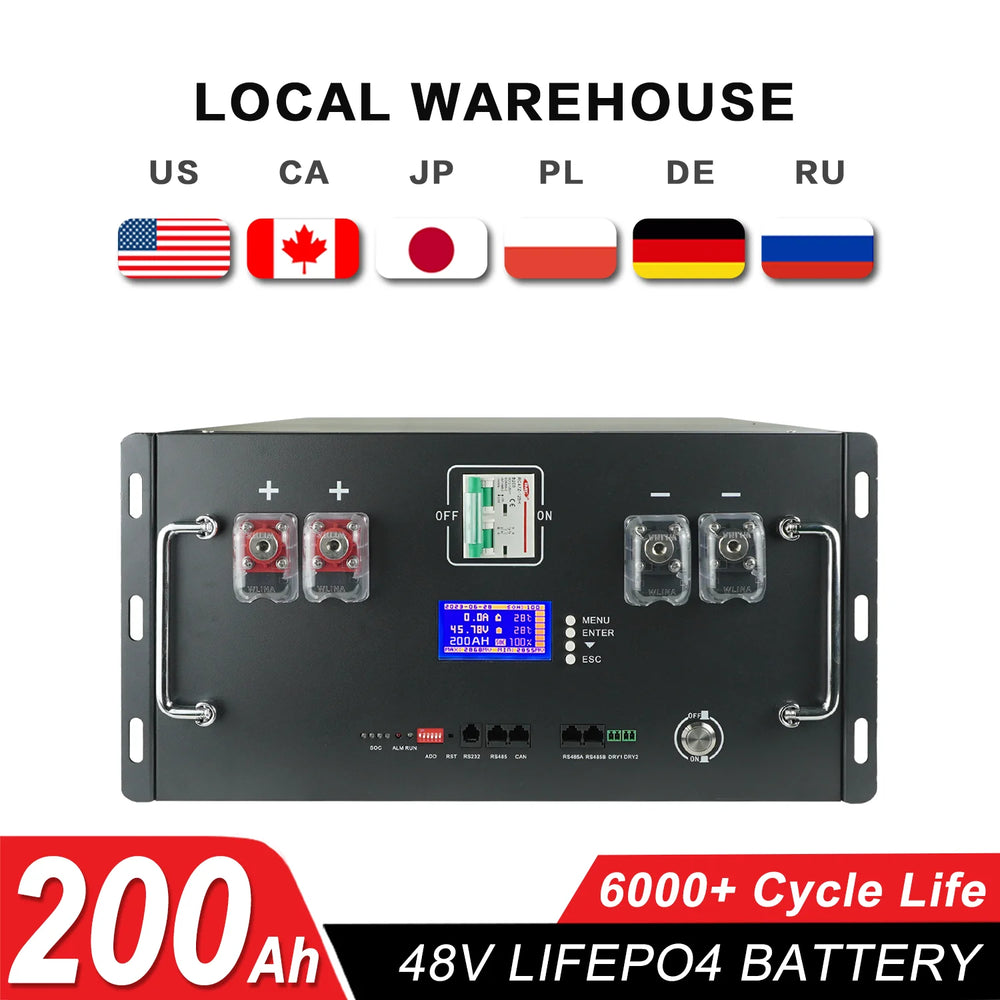

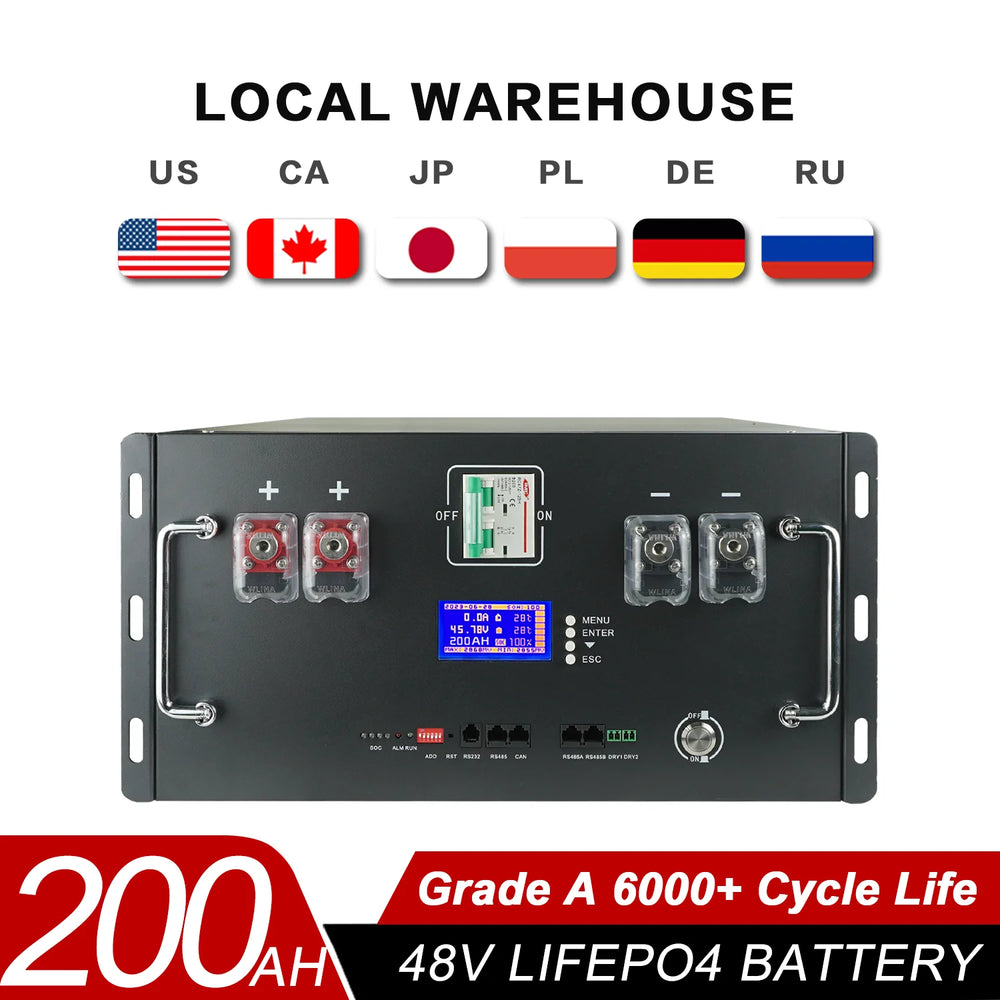

48V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 32 Parallel
Energy: 10240Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Suggest Charger Current: 40A(0.2C)
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*580*240mm
Weight: Approx 90kg
Terminal Type: Dual M8

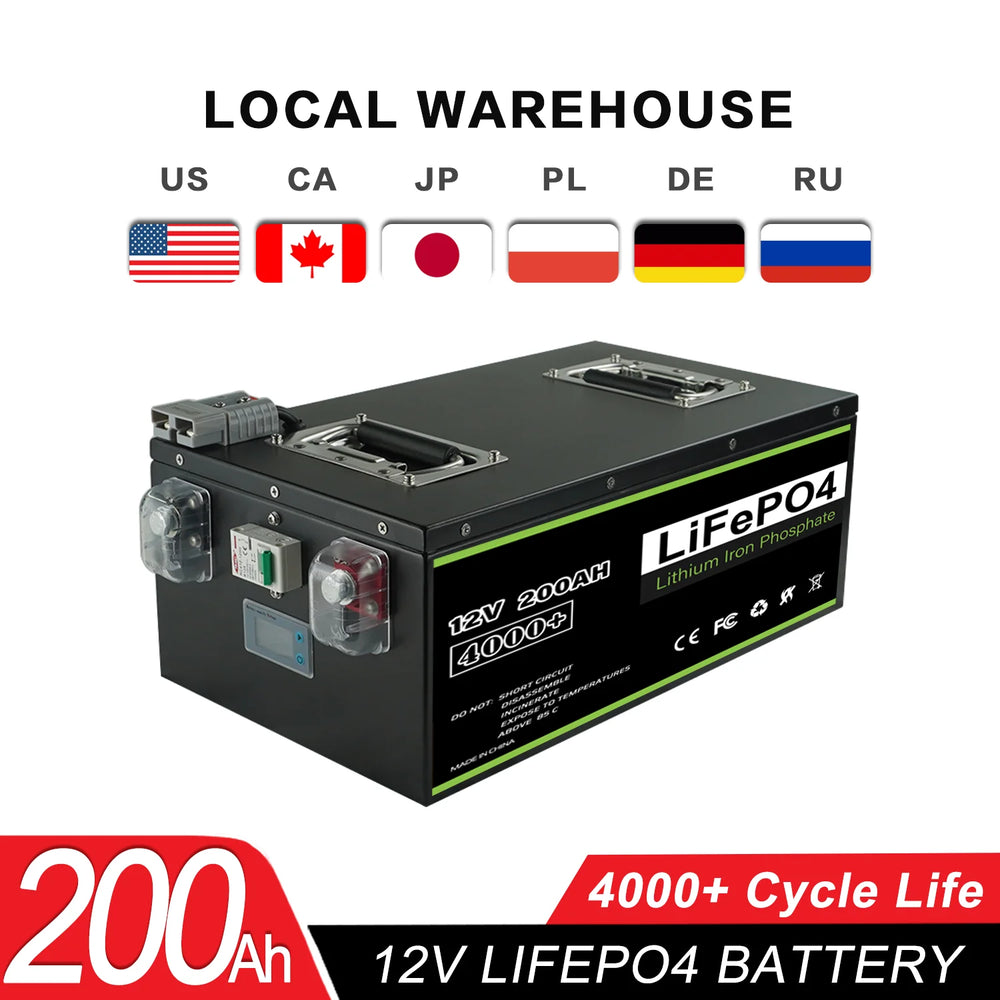

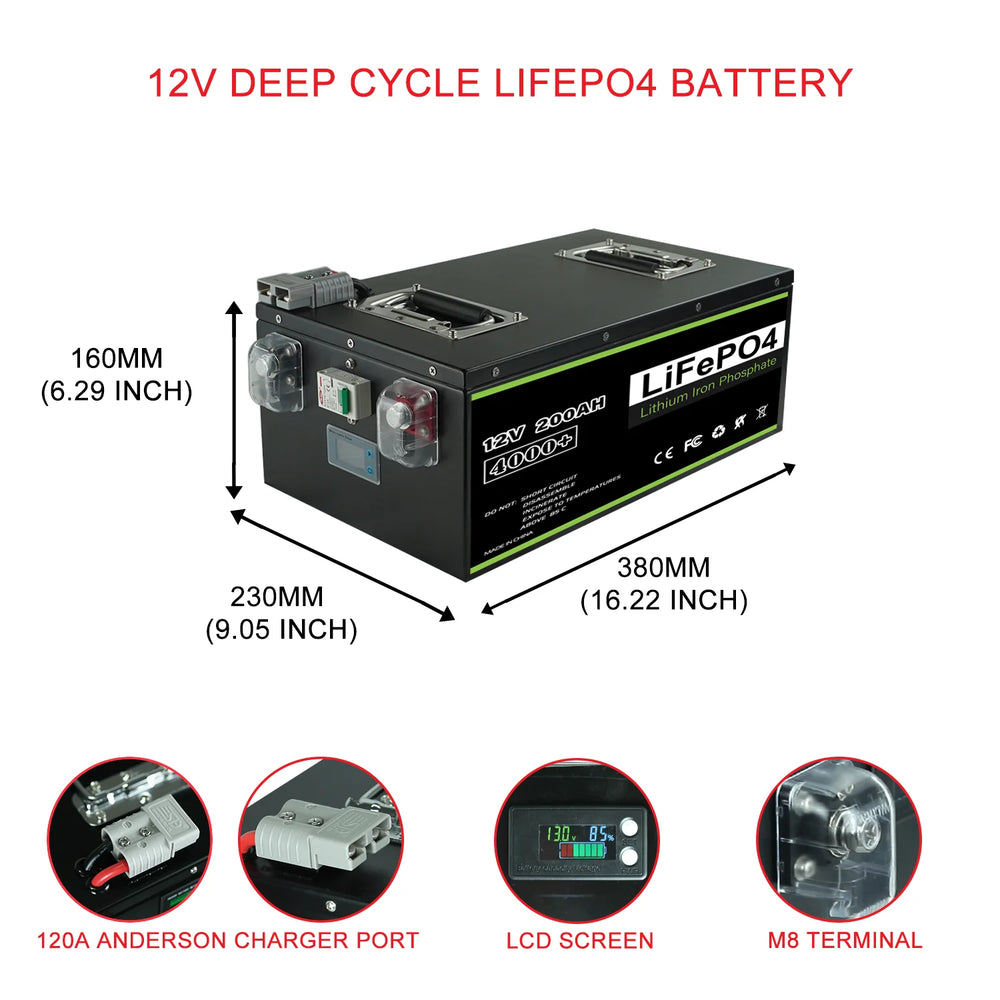

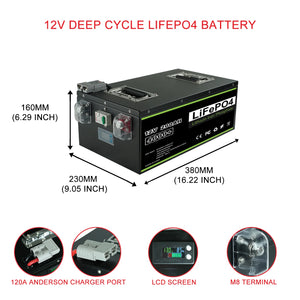

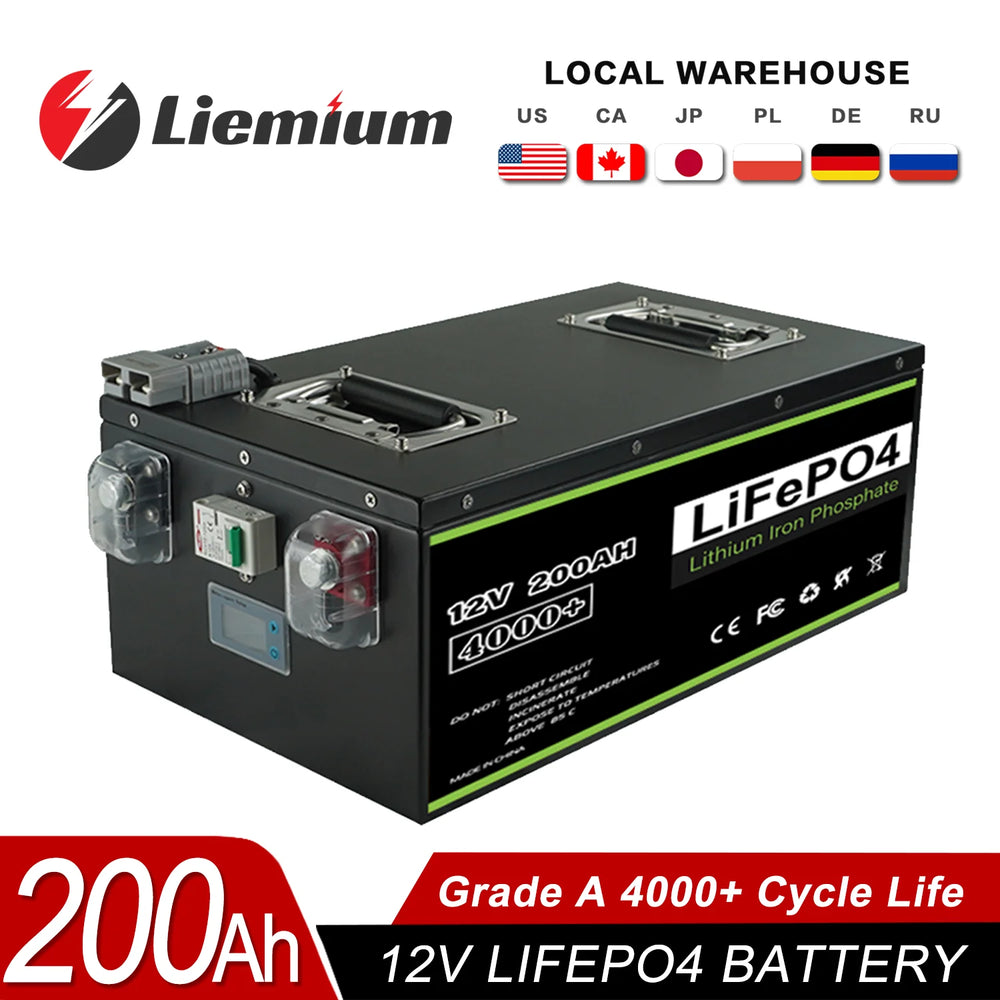

12V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Energy: 2560Wh
Built-in BMS:4S 150A
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Suggest Charge Current: 40A
Max. Charge Current: 75A
Max. Continuous Discharge Current: 150A
Max. Pulse Current: 300A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Matel
Dimension (L/W/H): 380*230*160mm
Weight: Approx. 21kg
Terminal Type: M8

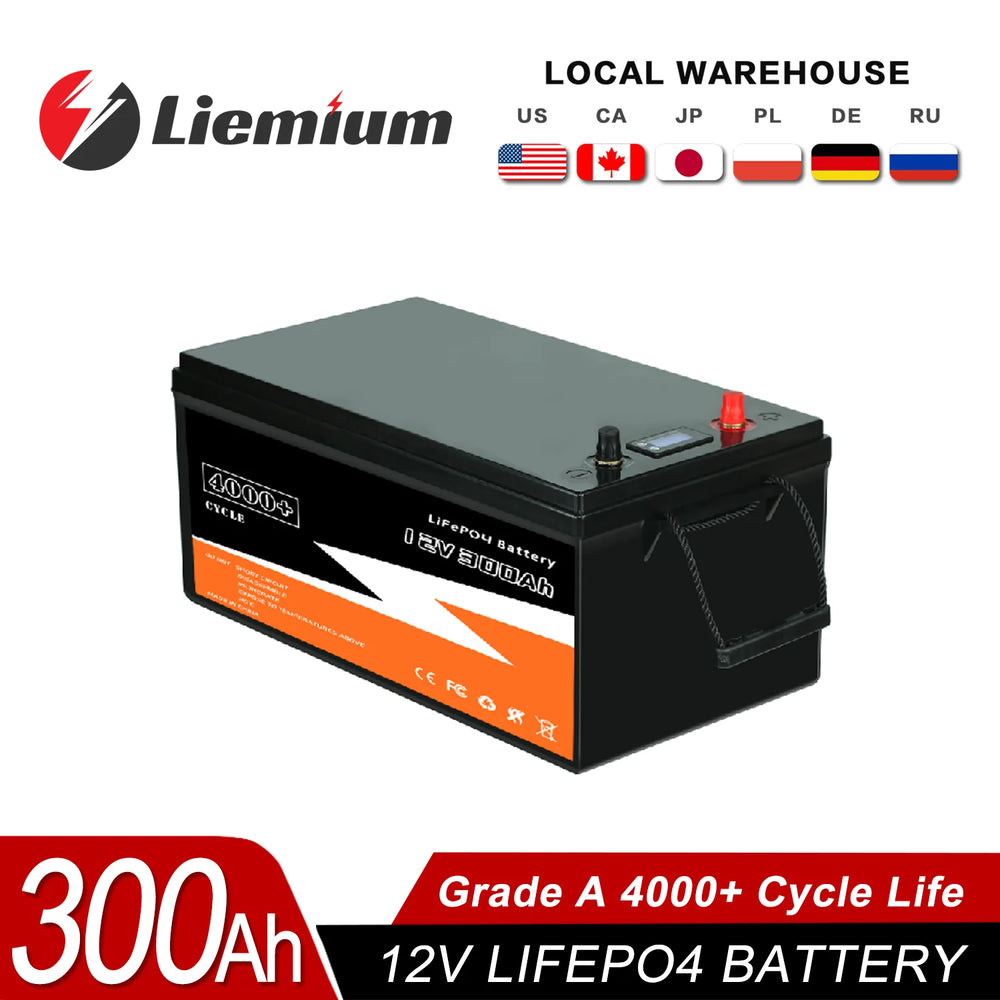

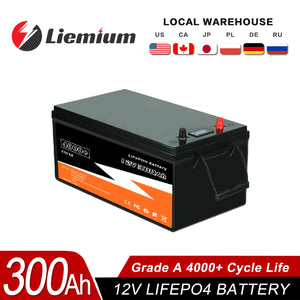

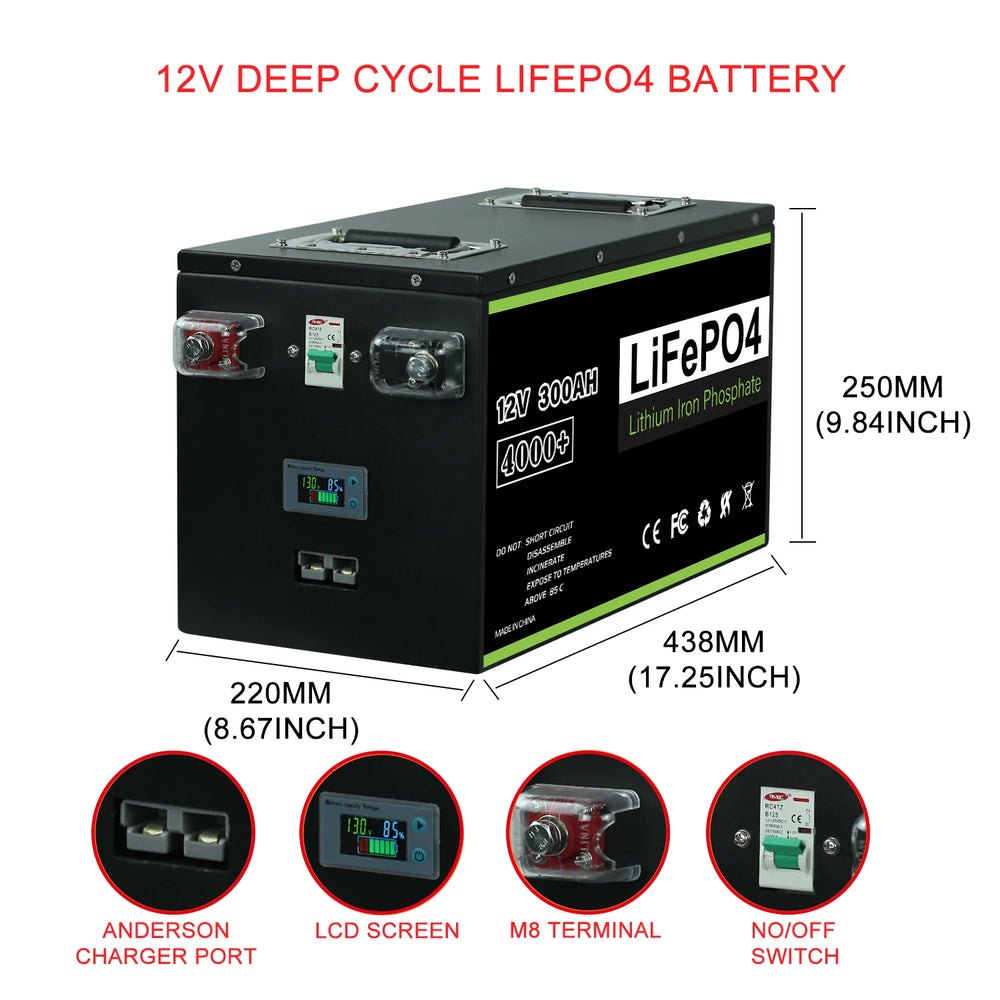

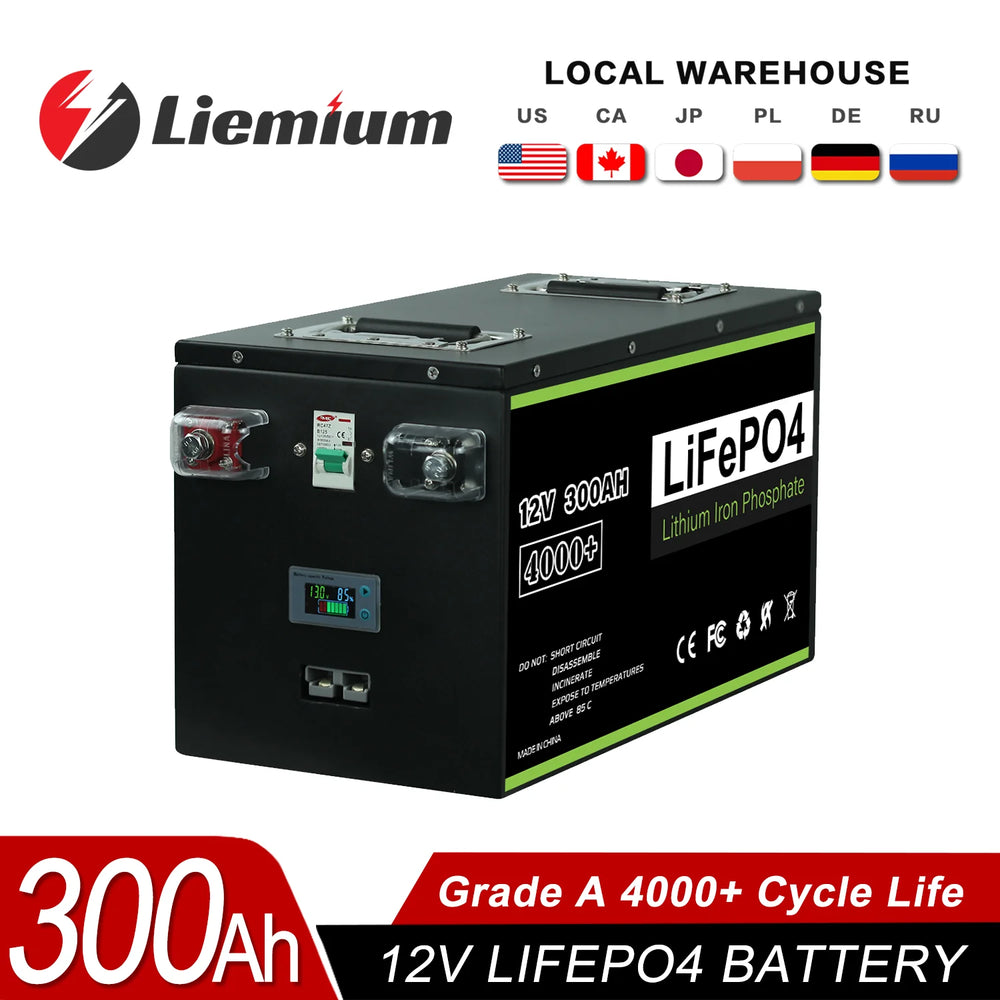

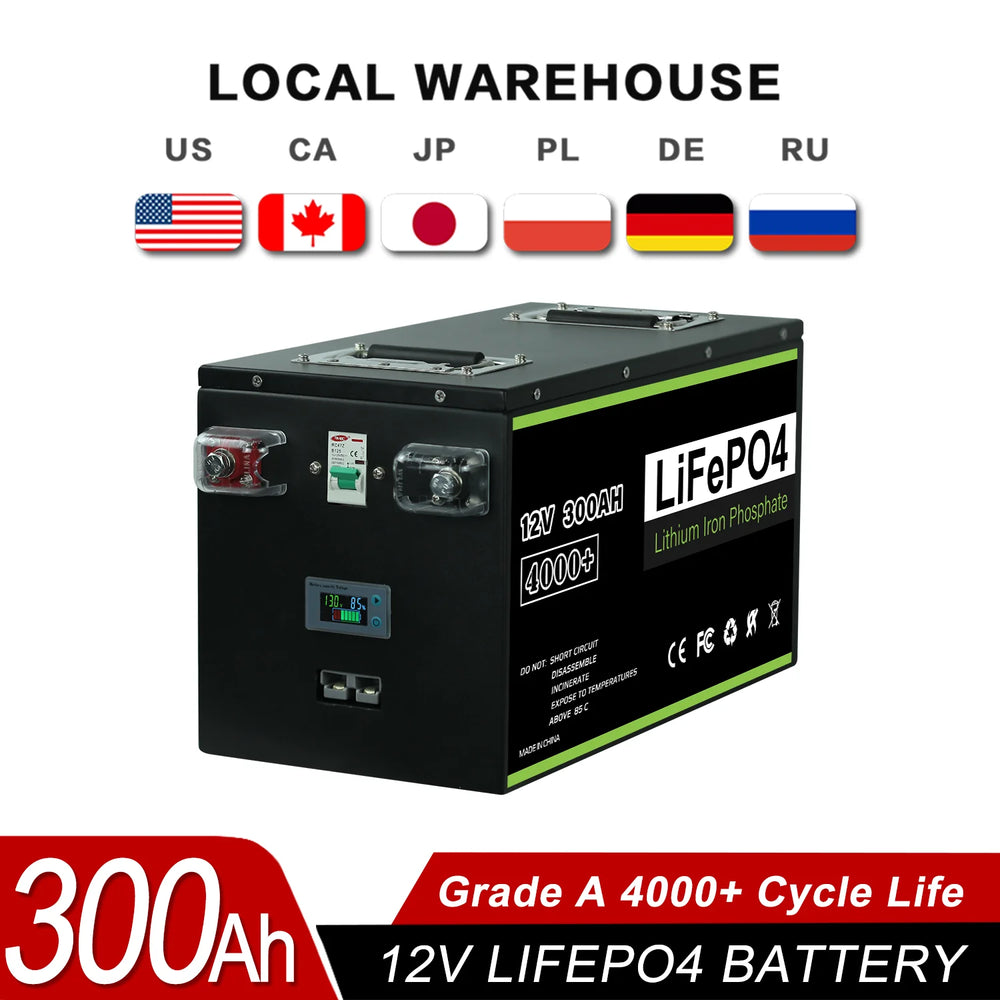

12V 300Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah 0.2C
Energy: 3840Wh
Built-in BMS:4S 150A
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 60A
Max. Charge Current: 120A
Max. Continuous Discharge Current: 150A
Max. Pulse Current: 500A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 438*220*250 mm
Weight: Approx. 32kg
Terminal Type: M8

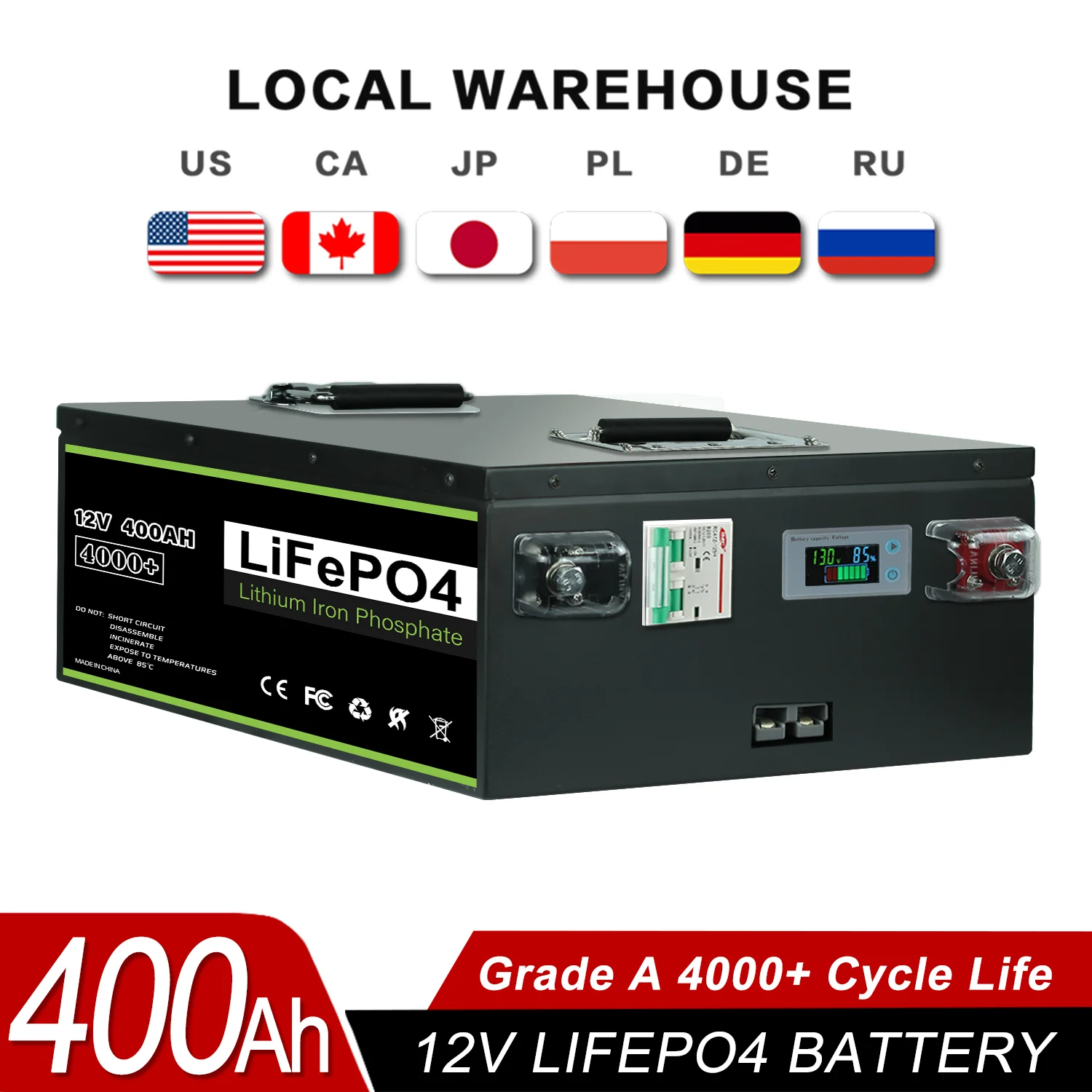

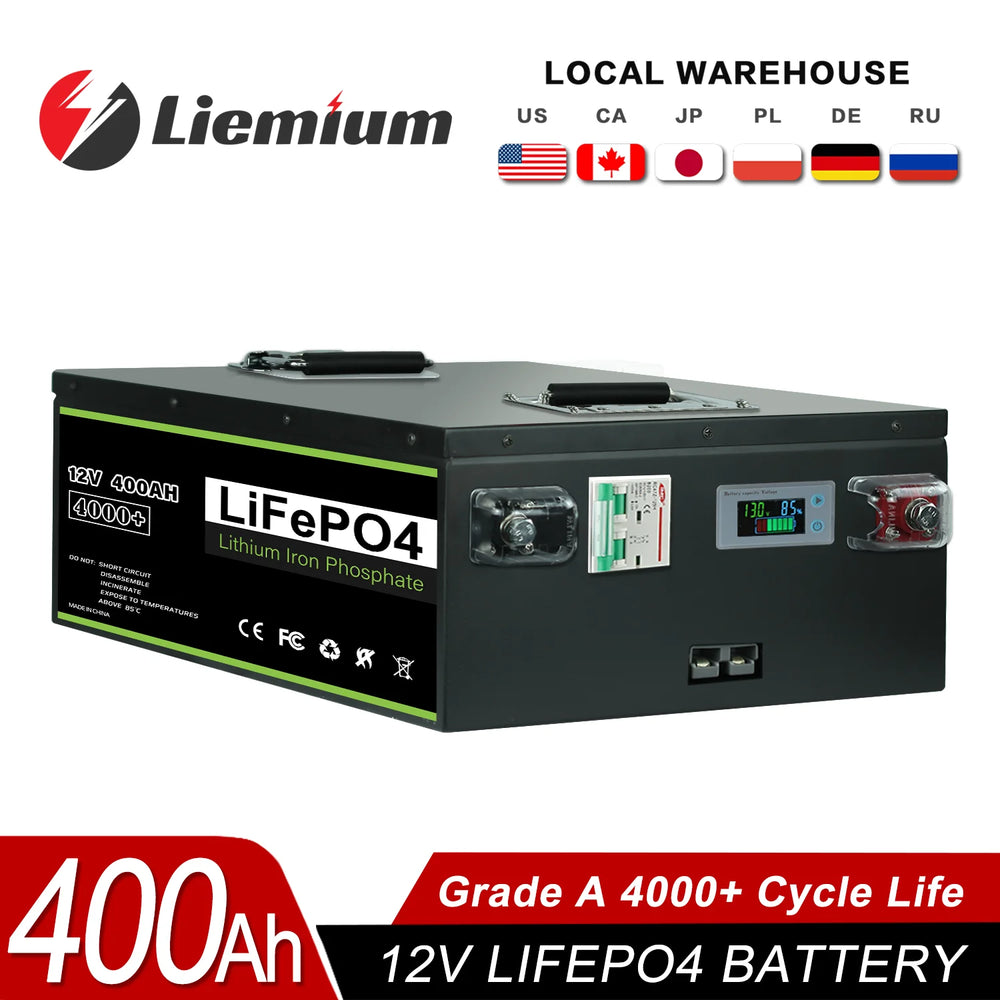

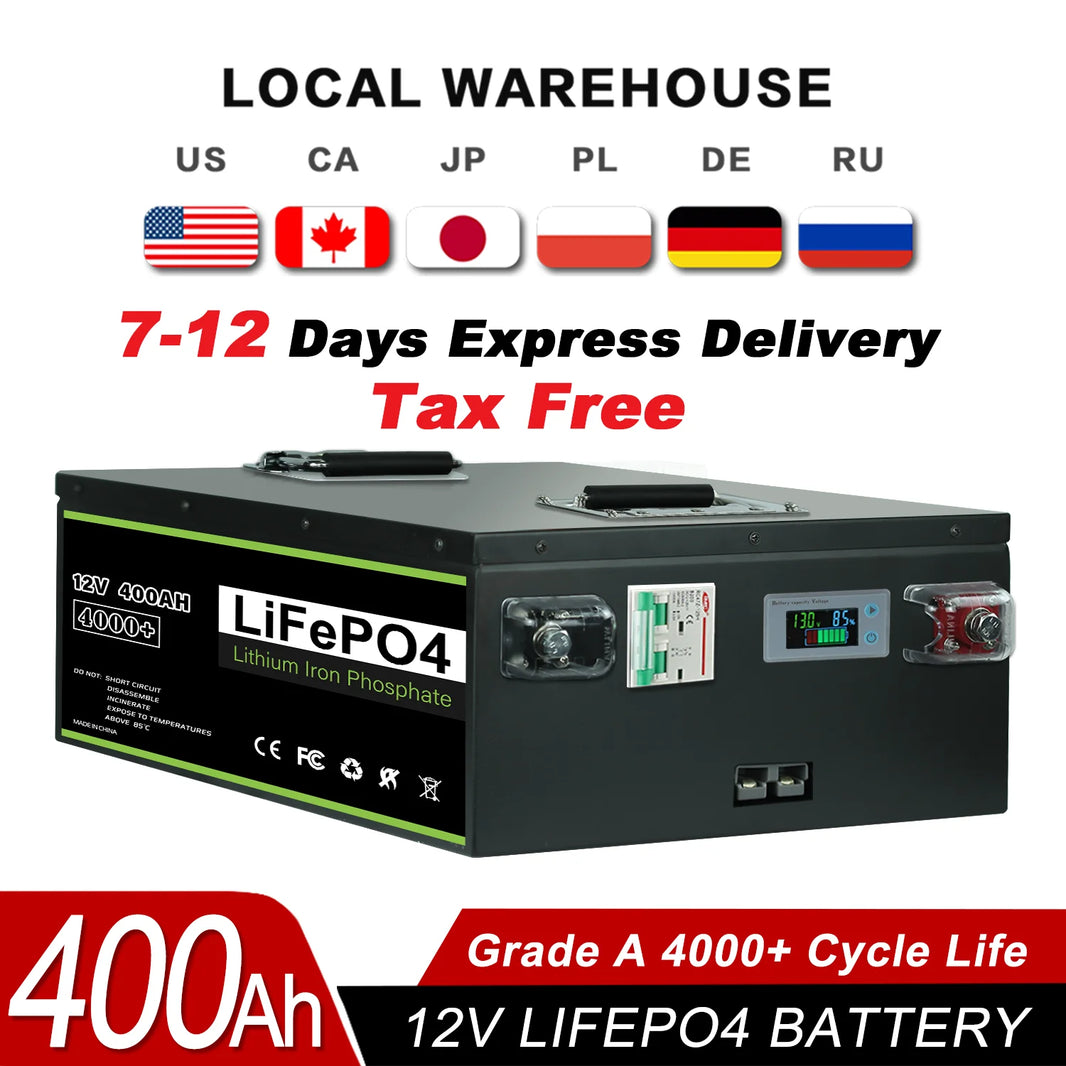

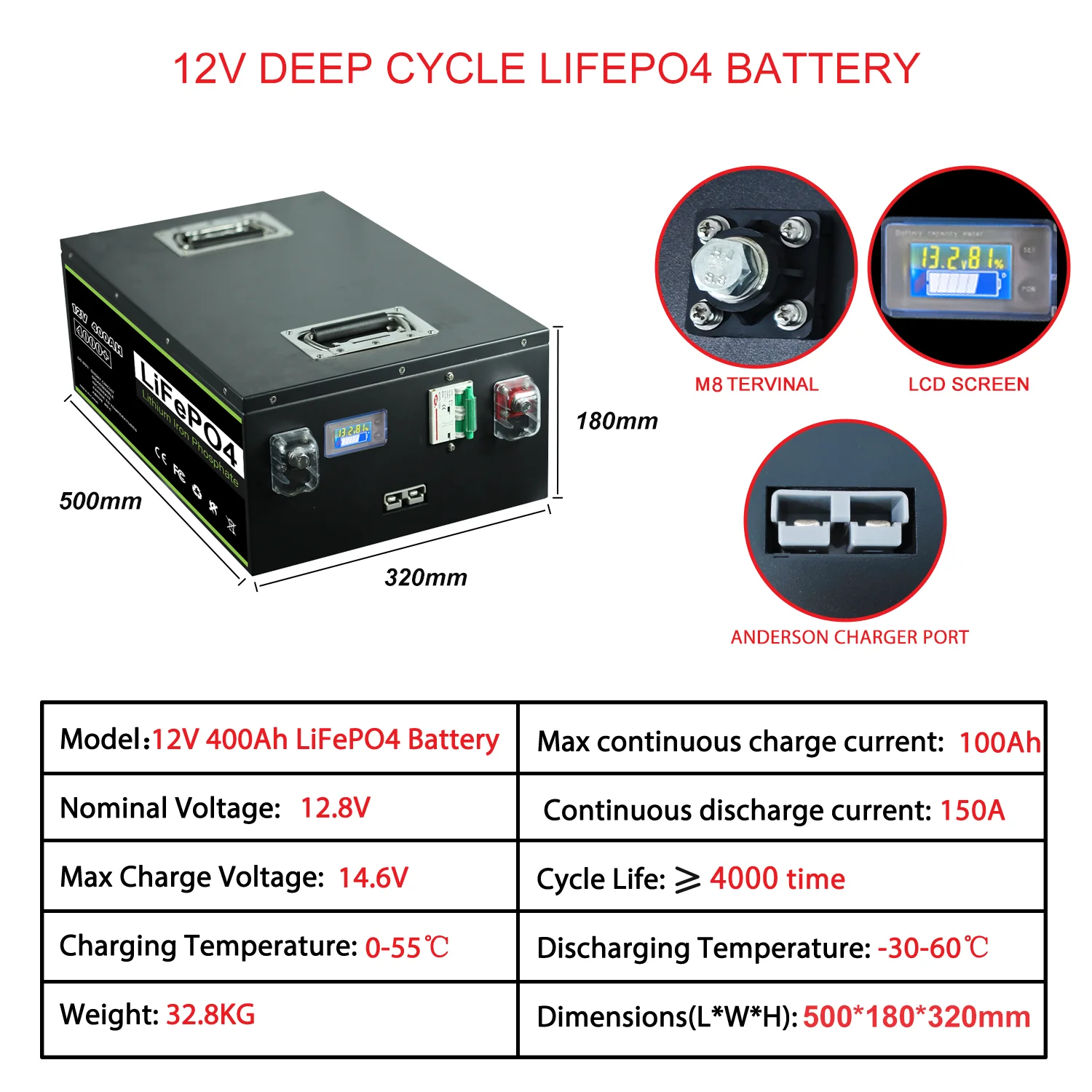

12V 400Ah Lifepo4 Battery

Specifications
Nominal Voltage:12.8V
Nominal Capacity: 400Ah 0.2C
Energy: 5120Wh
Built-in BMS:4S 150A
Cycle life: 4000+ cycles at 80% discharge depth
Charge Voltage: 14.6±0.2V
Depth of Discharge (DoD): 100%
Suggest Charge Current: : 50A
Max charge current: 75A
Max Continuous discharge current: 150A
Peak discharge current: 750A (Duration: less than 5 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 500*320*180mm
Weight: Approx. 34kg
Terminal Type: M8
